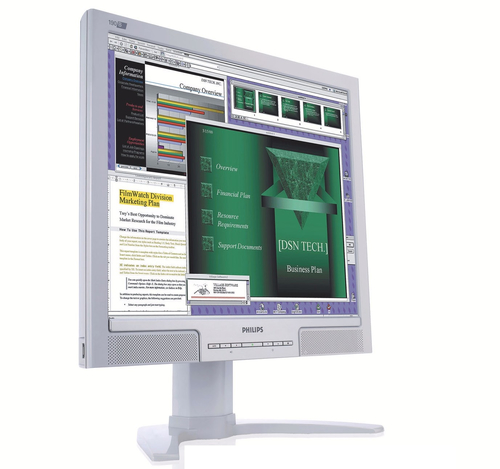

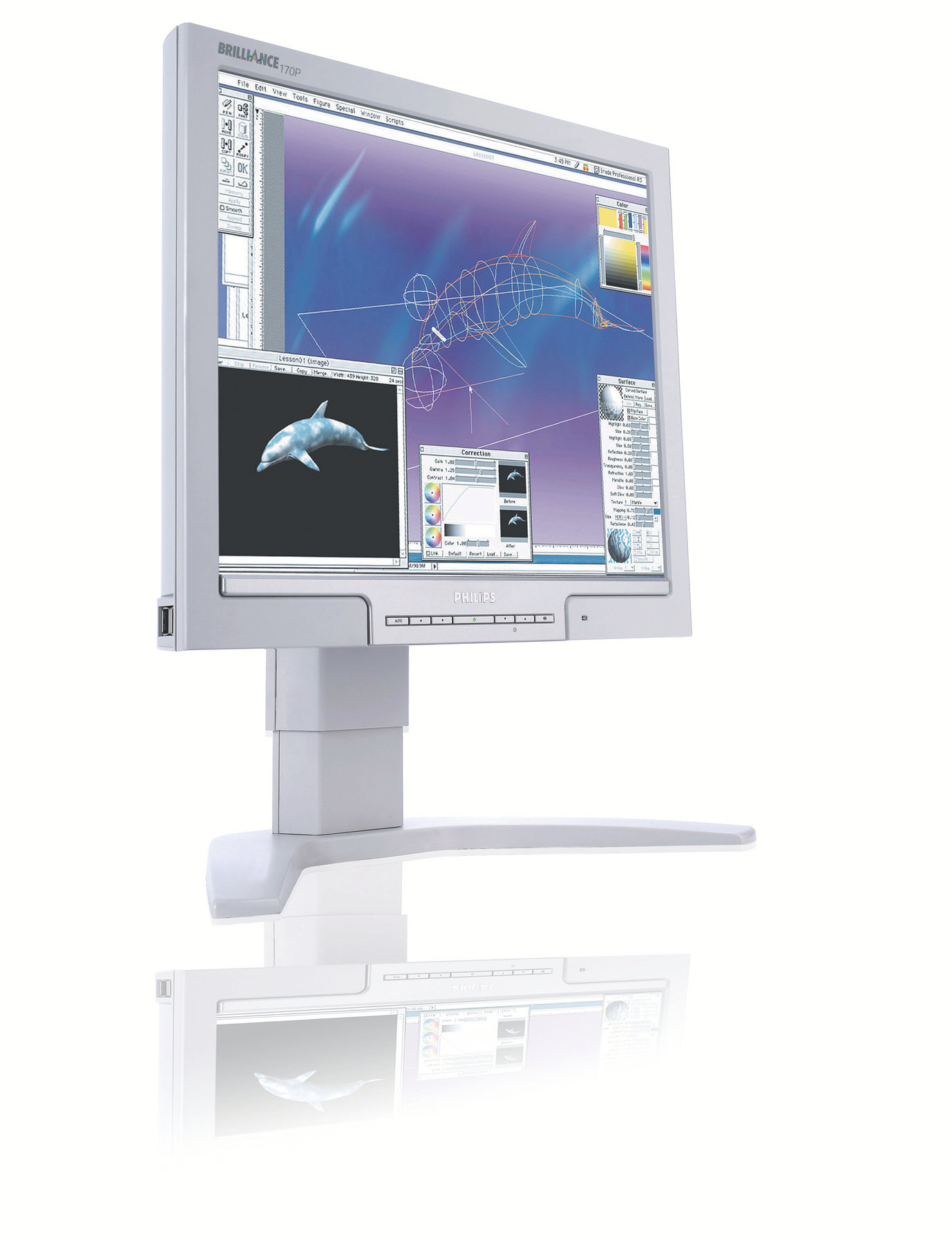

Philips Brilliance LCD monitor 170P7EG/00

Model 170P7EG/00EAN 8710895956291

74 specifications Checked 2 days ago

Overview

74 specifications in 10 groups

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size diagonal	43 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 76 Hz
Colour gamut standard	sRGB
Pixel frequency	140 MHz
Display panel size	17"/ 43 cm
Video input impedance	75 Ω
Video input signal levels	0.7 Vpp
White Chromaticity, 6500K	x = 0.313 / y = 0.329
White Chromaticity, 9300K	x = 0.283 / y = 0.297

Specification	Value
Product colour	White

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
Audio input	No
Audio output	No

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	5 - 40 m
Relative humidity	20 - 80%

Specification	Value
Manual	Yes

Specification	Value
Display viewable area (HxV)	337.9 x 270.3 mm
Effective viewing area	337.9 x 270.3 mm
Height adjustment range (imperial)	5.1
Monitor sync input signal	Composite Sync Separate Sync Sync on Green
Power requirements	Built-in 100-240VAC, 50/60Hz
Signal input	Analog (VGA) DVI-D
Sync input impedance	2200 Ω
Compliance industry standards	Energy Star
Certification	CE Mark EMC Energy Star FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo
Additional accessories	AC Power Cord DVI-D cable USB cable VGA cable
Box depth (imperial)	25.1 cm (9.9")
Box height (imperial)	48.5 cm (19.1")
Convenience enhancements	Kensington lock compatible On-screen Display SmartBright SmartManage enabled
Set depth (inch)	6.1 cm (2.4")
Set depth (with stand) (inch)	21.6 cm (8.5")
Set height (inch)	33.3 cm (13.1")
Set height (with stand) (inch)	39.9 cm (15.7")
User controls	Auto Brightness Control (Up/Down) Left/Right Menu (OK) Power On/Off
