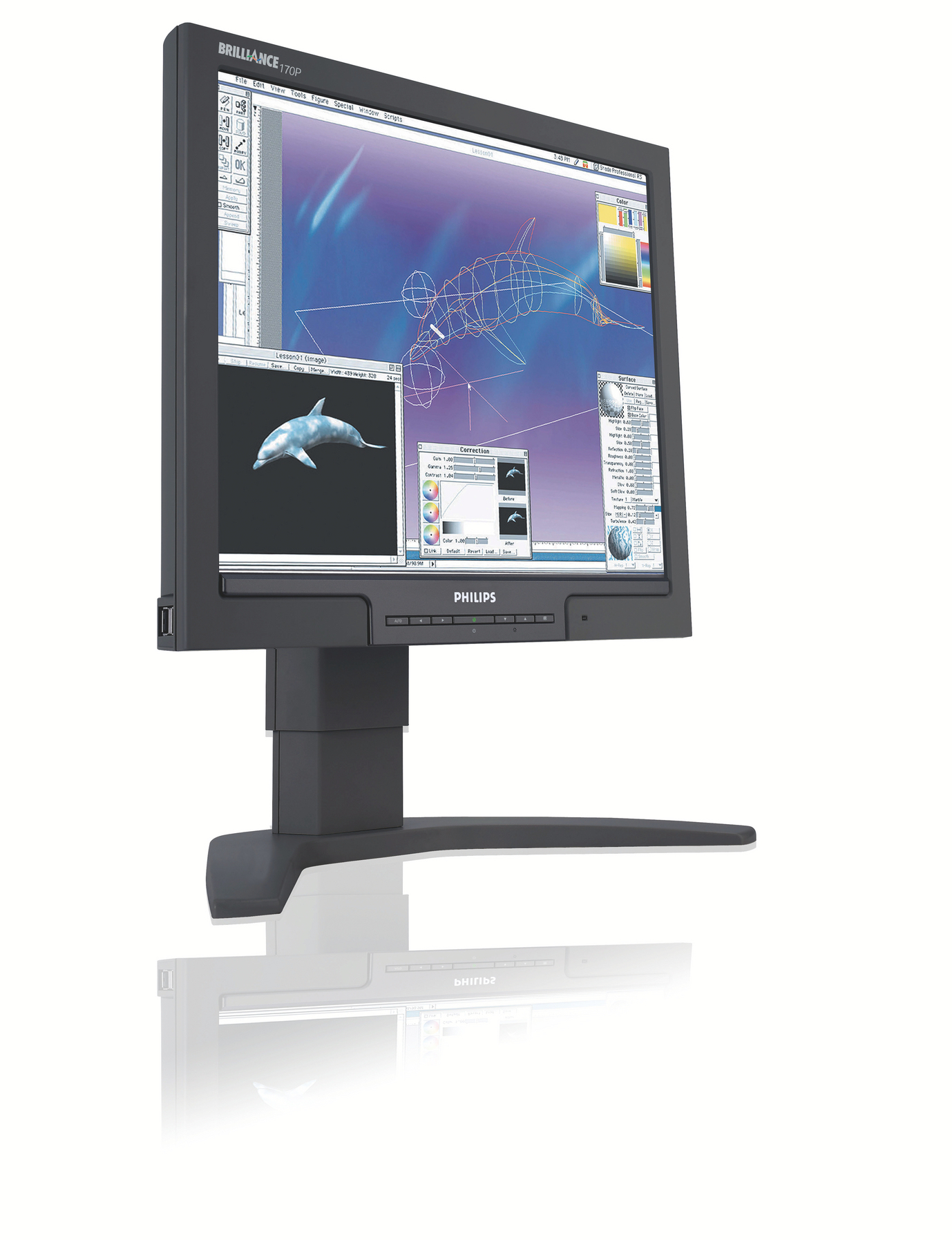

Brilliance 170P7EB
17" SXGA LCD monitor
Model 170P7EB/00EAN 8710895956284
75 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Built-in speaker(s)No
- USB version2.0
- VESA mountingYes
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB version
- 2.0
- VESA mounting
- Yes
- Brand
- Philips
- Category
- Monitor
- Model
- 170P7EB/00
- Part number
- 170P7EB/00
- EAN / UPC
- 8710895956284
- Also known as
- Philips Brilliance 170P7EB 17" SXGA LCD monitor
Specifications
75 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x6 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB version | 2.0 |
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| HDCP | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 6 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 33 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 402.6 mm |
| Depth (with stand) | 215.3 mm |
| Height (with stand) | 398.3 mm |
| Weight (with stand) | 6.4 kg |
| Width (without stand) | 382.5 mm |
| Depth (without stand) | 61.5 mm |
| Height (without stand) | 332.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 453 mm |
| Package depth | 263 mm |
| Package height | 486 mm |
| Package weight | 8.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DVI, USB, VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE Mark, EMC Energy Star FCC-B UL CSA SEMKO TCO '03 TÜV/GS TÜV Ergo |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
