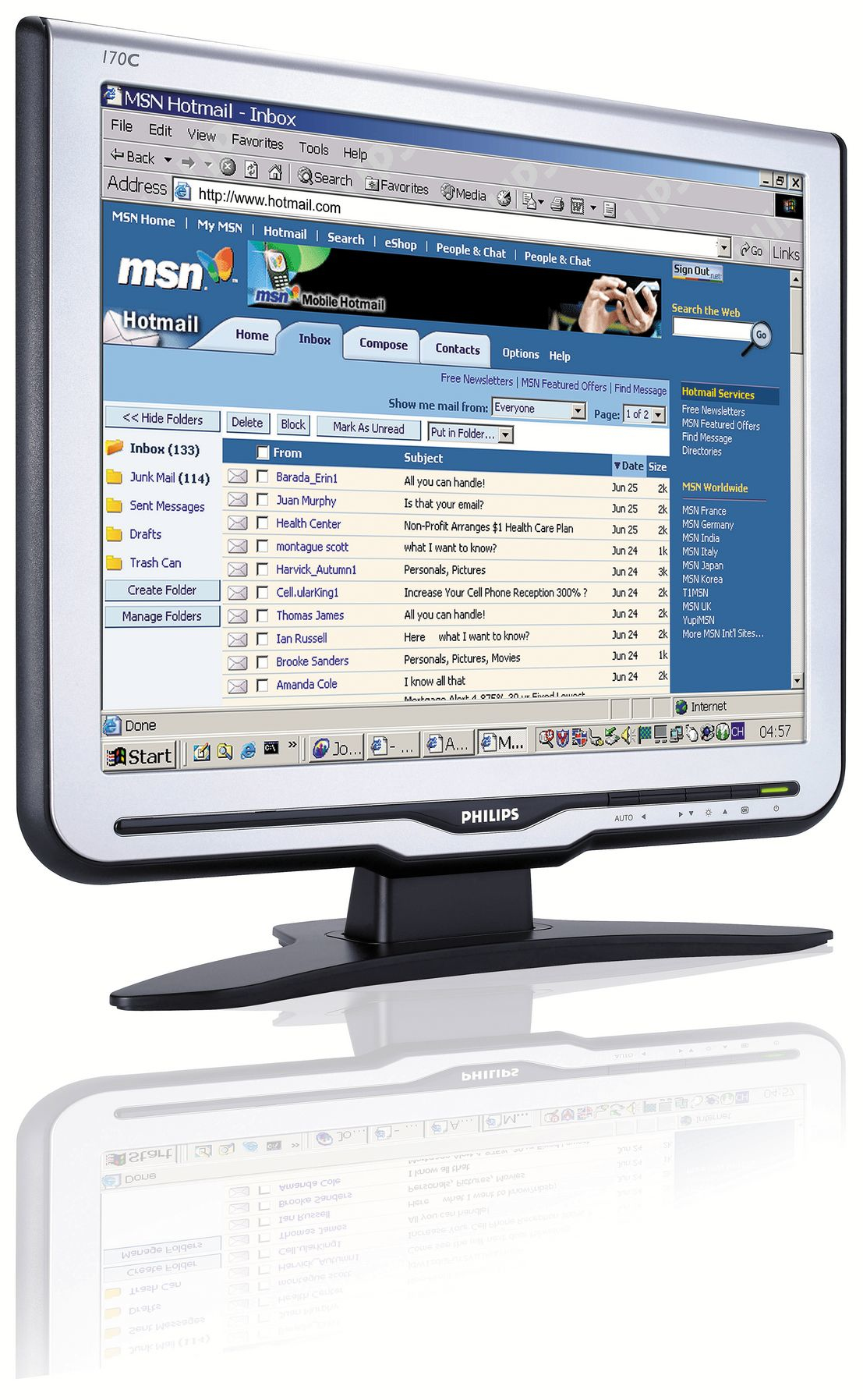

170C7FS 17" SXGA LCD monitor

Model 170C7FS/69EAN 8710895971492

65 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourBlack, Silver
Built-in speaker(s)No
Power consumption (typical)31 W
Operating temperature (T-T)0 - 35 °C

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Black, Silver
Built-in speaker(s): No
Power consumption (typical): 31 W
Operating temperature (T-T): 0 - 35 °C

Brand: Philips
Category: Monitor
Model: 170C7FS/69
Part number: 170C7FS/69
EAN / UPC: 8710895971492
Also known as: Philips 170C7FS 17" SXGA LCD monitor

Specifications

65 specifications in 12 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	700:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Display number of colours	16.2 million colours
Pixel pitch	0.264 x 0.264 mm
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 76 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black, Silver

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
HDCP	No

Ergonomics

Specification	Value
VESA mounting	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, English, Spanish, French, Portuguese
Number of OSD languages	5
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	31 W
Power consumption (off)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	403 mm
Depth (with stand)	171 mm
Height (with stand)	392 mm
Weight (with stand)	4.63 kg

Packaging data

Specification	Value
Package width	482 mm
Package depth	488 mm
Package height	189 mm
Package weight	6 kg
Package type	Box

Packaging content

Specification	Value
Cables included	AC, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, EMC, FCC-B, UL, CSA, SEMKO, TCO '99, TÜV/GS, TÜV Ergo
Supplied AC adapter type	LCD
