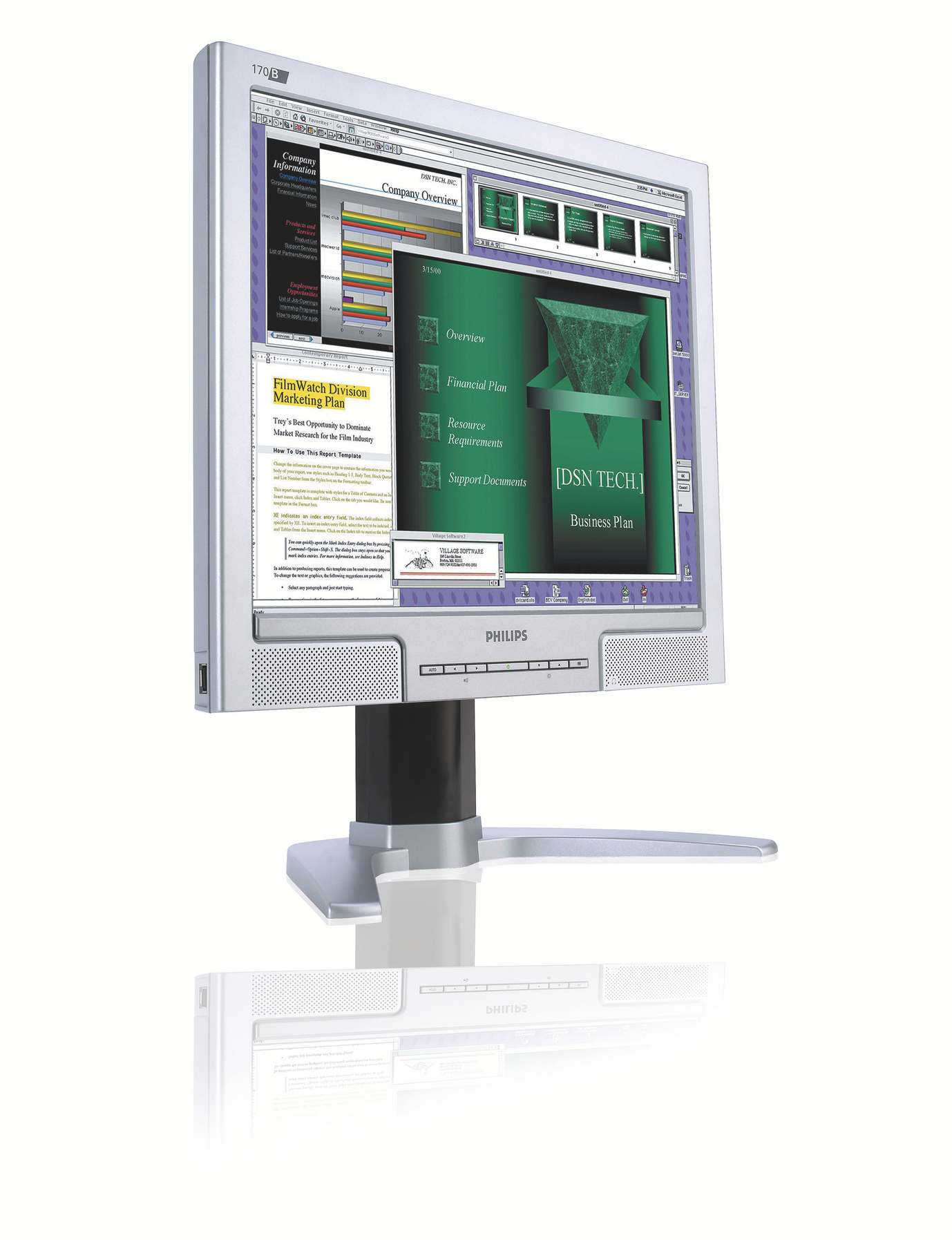

LCD monitor 170B7CS/75
Model 170B7CS/75EAN 8710895968102
73 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourSilver
- Built-in speaker(s)Yes
- USB version2.0
- Power consumption (typical)33 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Silver
- Built-in speaker(s)
- Yes
- USB version
- 2.0
- Power consumption (typical)
- 33 W
- Brand
- Philips
- Category
- Monitor
- Model
- 170B7CS/75
- Part number
- 170B7CS/75
- EAN / UPC
- 8710895968102
- Also known as
- Philips LCD monitor 170B7CS/75
Specifications
73 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x6 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| USB version | 2.0 |
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
| HDCP | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 6 cm |
| Swivel angle range | -60 - 60° |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 33 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 382.5 mm |
| Depth (with stand) | 198.7 mm |
| Height (with stand) | 387.2 mm |
| Weight (with stand) | 5.2 kg |
| Width (without stand) | 382.5 mm |
| Depth (without stand) | 61.5 mm |
| Height (without stand) | 342.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 449 mm |
| Package depth | 452 mm |
| Package height | 182 mm |
| Package weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), DVI, USB, VGA |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE Mark, EMC Energy Star FCC-B UL CSA SEMKO TCO '03 TÜV/GS TÜV Ergo |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
