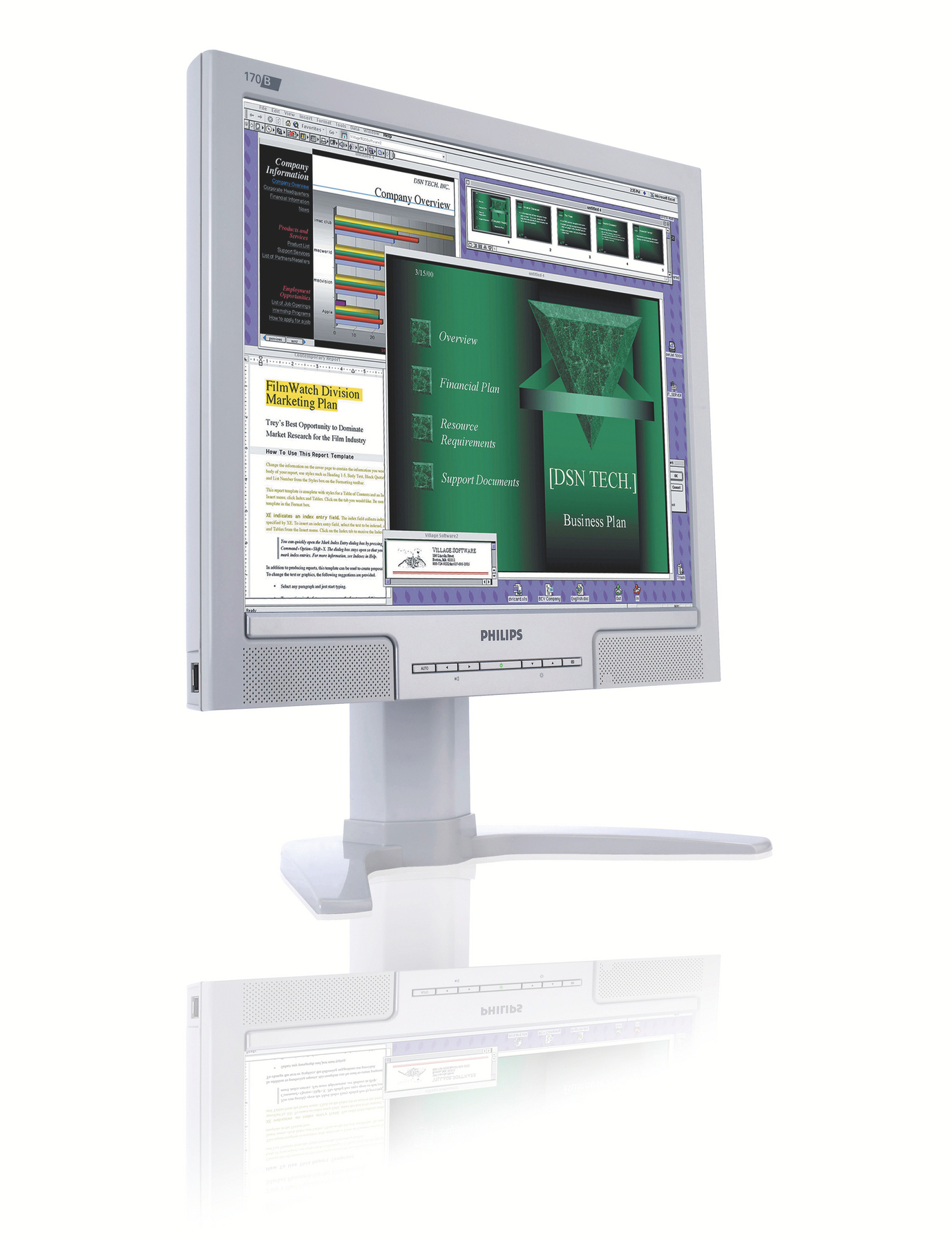

Philips LCD monitor 170B7CG/00
Philips

LCD monitor 170B7CG/00

Model 170B7CG/00EAN 8710895956253

73 specifications Checked today
  • Display43.2 cm (17")
  • Resolution1280 x 1024 pixels
  • ColourGrey
  • RMS rated power2 W
  • USB hub version2.0
  • Panel mounting interface100 x 100 mm
See all specifications

Overview

Display
43.2 cm (17")
Resolution
1280 x 1024 pixels
Colour
Grey
RMS rated power
2 W
USB hub version
2.0
Panel mounting interface
100 x 100 mm
Brand
Philips
Category
Monitor
Model
170B7CG/00
Part number
170B7CG/00
EAN / UPC
8710895956253, 8710895965859
Also known as
Philips LCD monitor 170B7CG/00

Specifications

73 specifications in 11 groups

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
TouchscreenNo
Display brightness (typical)300 cd/m²
Response time5 ms
Contrast ratio (typical)800:1
Viewing angle, horizontal160°
Viewing angle, vertical160°
Pixel pitch0.264 x 0.264 mm
Horizontal scan range30 - 83 kHz
Vertical scan range56 - 76 Hz
Digital horizontal frequency30 - 83 kHz
Digital vertical frequency56 - 76 Hz
Colour gamut standardsRGB
Pixel frequency140 MHz
Display panel size17"/ 43 cm
Video input impedance75 Ω
Video input signal levels0.7 Vpp
White Chromaticity, 6500Kx = 0.313 / y = 0.329
White Chromaticity, 9300Kx = 0.283 / y = 0.297

Multimedia

RMS rated power2 W

Design

Product colourGrey

Ports & interfaces

USB hub version2.0
USB Type-A downstream ports quantity1
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Audio inputYes

Ergonomics

Panel mounting interface100 x 100 mm
Cable lock slotYes
Cable lock slot typeKensington
Adjustable height (max)6 cm
Swivel angle range60 - 60°
Tilt angle range-5 - 25°

Power

Power consumption (typical)33 W
Power consumption (standby)1 W
Power consumption (off)1 W

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Relative humidity20 - 80%

Weight & dimensions

Width (with stand)382.5 mm
Depth (with stand)198.7 mm
Height (with stand)387.2 mm
Weight (with stand)5.2 kg
Width (without stand)382.5 mm
Depth (without stand)61.5 mm
Height (without stand)342.8 mm

Packaging data

Package dimensions (WxDxH)449 x 182 x 452 mm
Package width449 mm
Package depth452 mm
Package height182 mm
Package weight6.5 kg

Packaging content

ManualYes

Other features

Audio system2 W RMS x 2 Stereo Speakers
Display viewable area (HxV)337.9 x 270.3 mm
Effective viewing area337.9 x 270.3 mm
Height adjustment range (imperial)2.4
Monitor sync input signalComposite Sync Separate Sync Sync on Green
Power requirementsBuilt-in 100-240VAC, 50/60Hz
Signal inputAnalog (VGA) DVI-D PC Audio in
Sync input impedance2200 Ω
Compliance industry standardsEnergy Star
CertificationCE Mark EMC Energy Star FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo
Additional accessoriesAC Power Cord Audio Cable USB cable VGA cable
Box depth (imperial)45.2 cm (17.8")
Box height (imperial)18.3 cm (7.2")
Convenience enhancementsKensington lock compatible FlexiHolder On-screen Display SmartManage enabled
Set depth (inch)6.1 cm (2.4")
Set depth (with stand) (inch)19.8 cm (7.8")
Set height (inch)34.3 cm (13.5")
Set height (with stand) (inch)38.6 cm (15.2")
User controlsAuto Brightness Control (Up/Down) Left/Right Menu (OK) Power On/Off Volume control
Supplied AC adapter typeSuper Ergo Base
