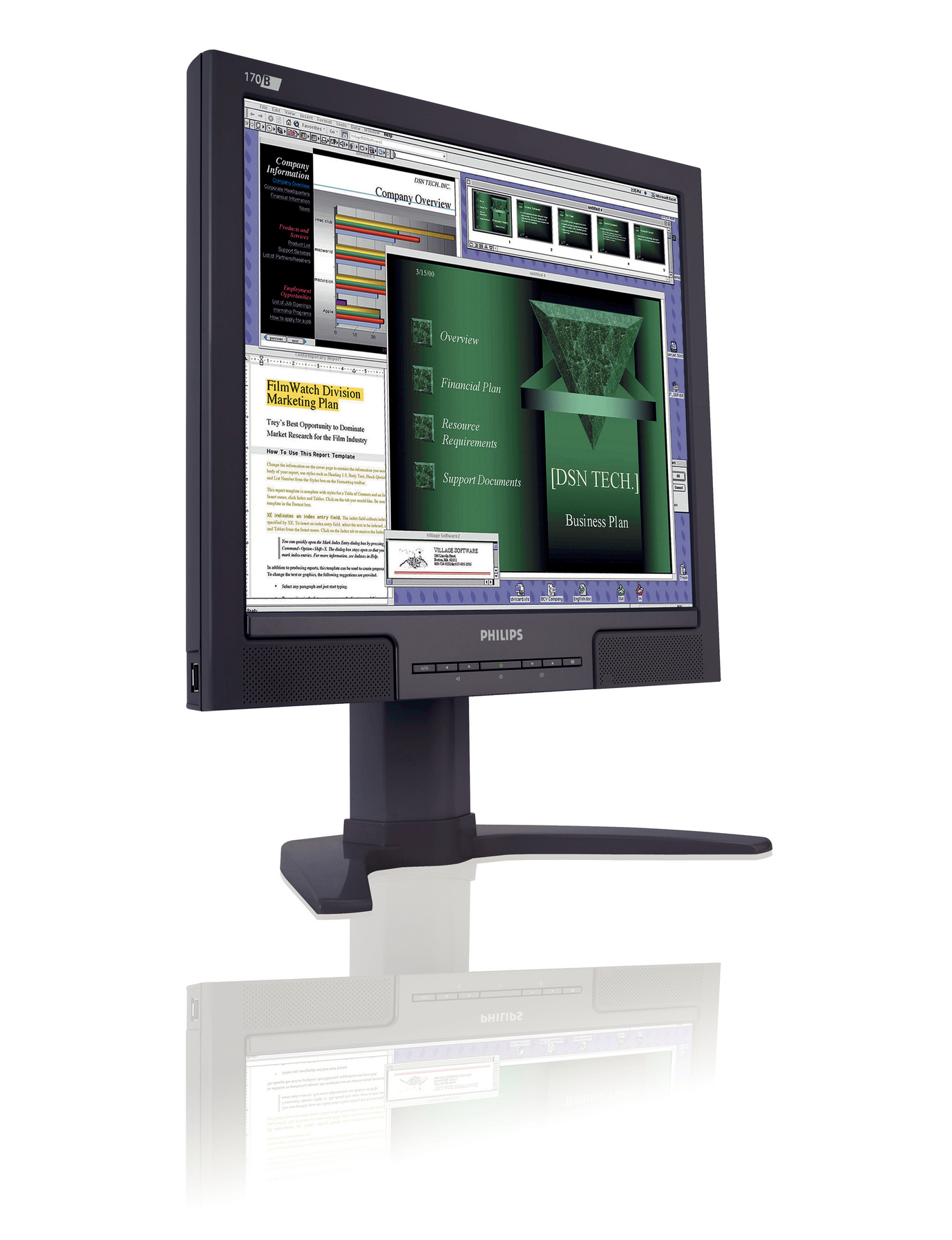

LCD monitor 170B7CB/75

Model 170B7CB/75EAN 8710895968058

68 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourBlack
Built-in speaker(s)Yes
USB hub version2.0
Power consumption (typical)33 W

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Black
Built-in speaker(s): Yes
USB hub version: 2.0
Power consumption (typical): 33 W

Brand: Philips
Category: Monitor
Model: 170B7CB/75
Part number: 170B7CB/75
EAN / UPC: 8710895968058
Also known as: Philips LCD monitor 170B7CB/75

Specifications

68 specifications in 13 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Display surface	Matt
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	800:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Performance

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vis

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
PC Audio in	Yes
HDCP	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	6 cm
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian
Number of OSD languages	6
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	33 W
Power consumption (standby)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	382.5 mm
Depth (with stand)	198.7 mm
Height (with stand)	387.2 mm
Weight (with stand)	5.2 kg
Width (without stand)	382.5 mm
Depth (without stand)	61.5 mm
Height (without stand)	342.8 mm

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, USB, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
AC adapter included	Yes
TV tuner integrated	No
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
