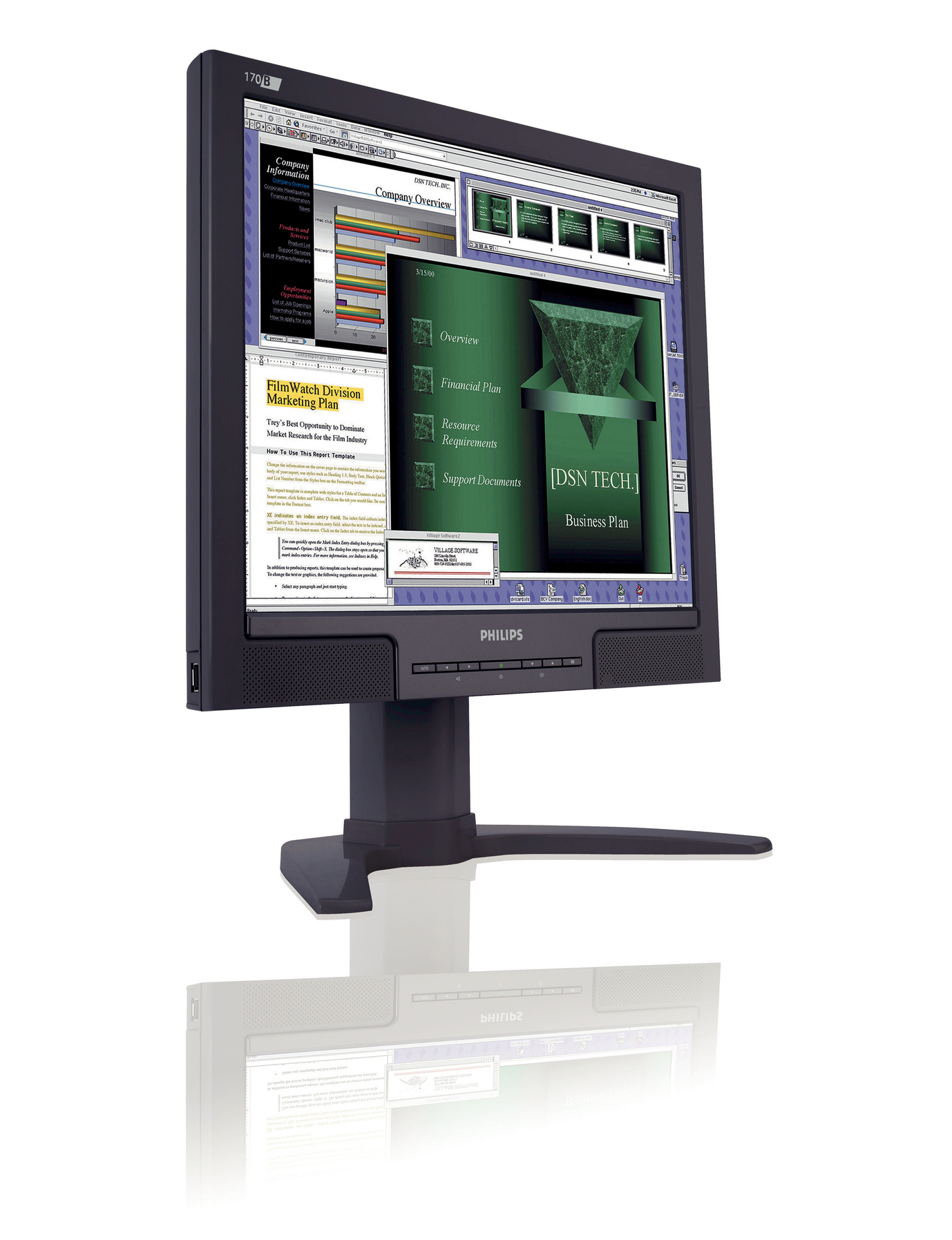

Philips 170B7CB 17" SXGA LCD monitor
Model 170B7CB/69EAN 8710895973878
81 specifications Checked 10 days ago
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Built-in speaker(s)Yes
- USB hub version2.0
- Power consumption (typical)33 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- USB hub version
- 2.0
- Power consumption (typical)
- 33 W
- Brand
- Philips
- Category
- Monitor
- Model
- 170B7CB/69
- Part number
- 170B7CB/69
- EAN / UPC
- 8710895973878
- Also known as
- Philips 170B7CB 17" SXGA LCD monitor
Specifications
81 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Pixel frequency | 140 MHz |
| Separate H/V sync | Yes |
| Composite sync | Yes |
| Video input impedance | 75 Ω |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vis |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| PC Audio in | Yes |
| HDCP | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 6 cm |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian |
| Number of OSD languages | 6 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 33 W |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 382.5 mm |
| Depth (with stand) | 198.7 mm |
| Height (with stand) | 387.2 mm |
| Weight (with stand) | 5.2 kg |
| Width (without stand) | 382.5 mm |
| Depth (without stand) | 61.5 mm |
| Height (without stand) | 342.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), DVI, USB, VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| TV tuner integrated | No |
| Effective viewing area | 337.9 x 270.3 mm |
| Sync input impedance | 2200 Ω |
| Dimensions (W x D x H) (imperial) | 383.5 x 61 x 342.9 mm (15.1 x 2.4 x 13.5") |
| Box dimensions (W x D x H) | 449 x 452 x 182 mm |
| Weight (with stand) (imperial) | 5.22 kg (11.5 lbs) |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
