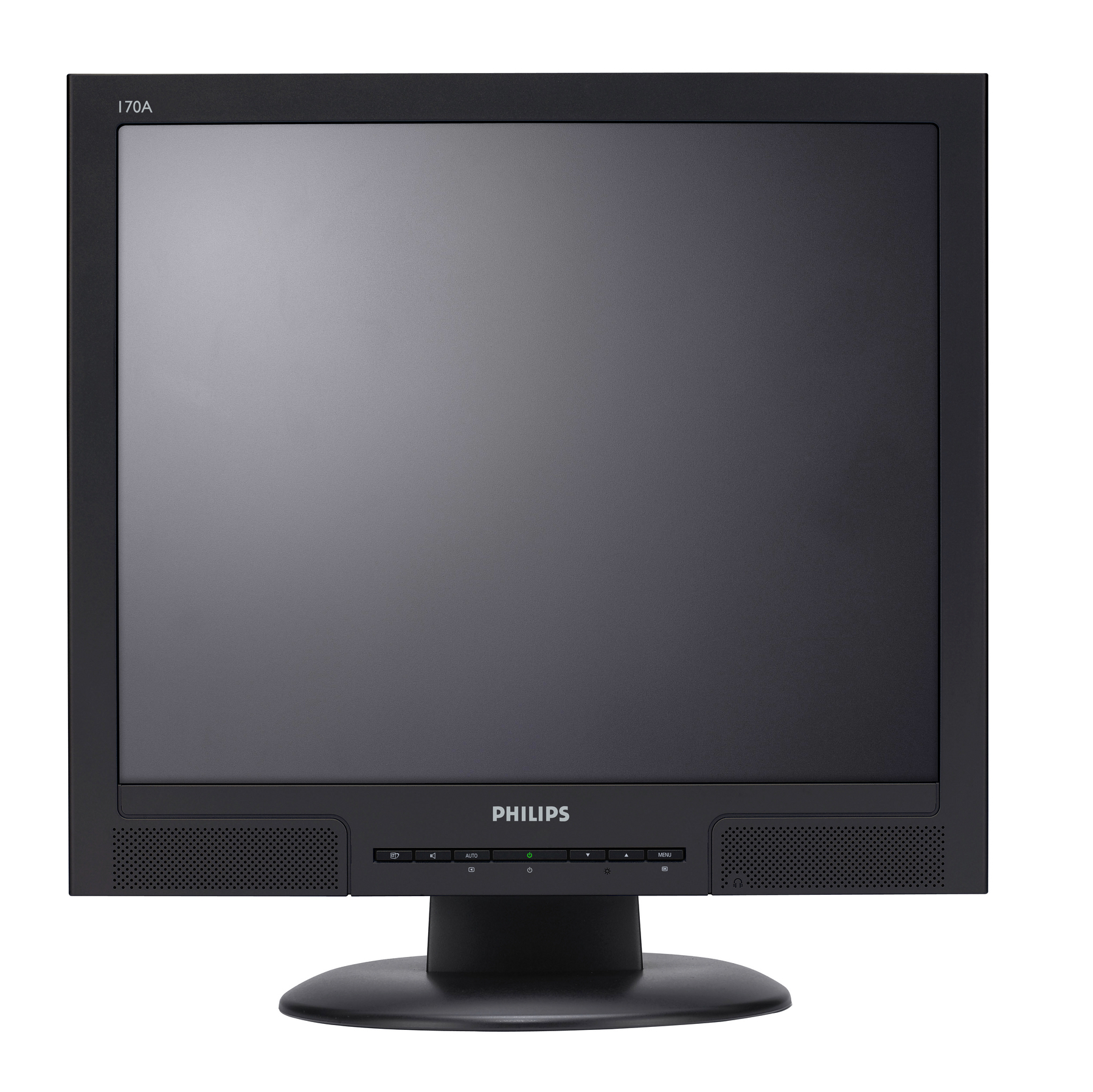

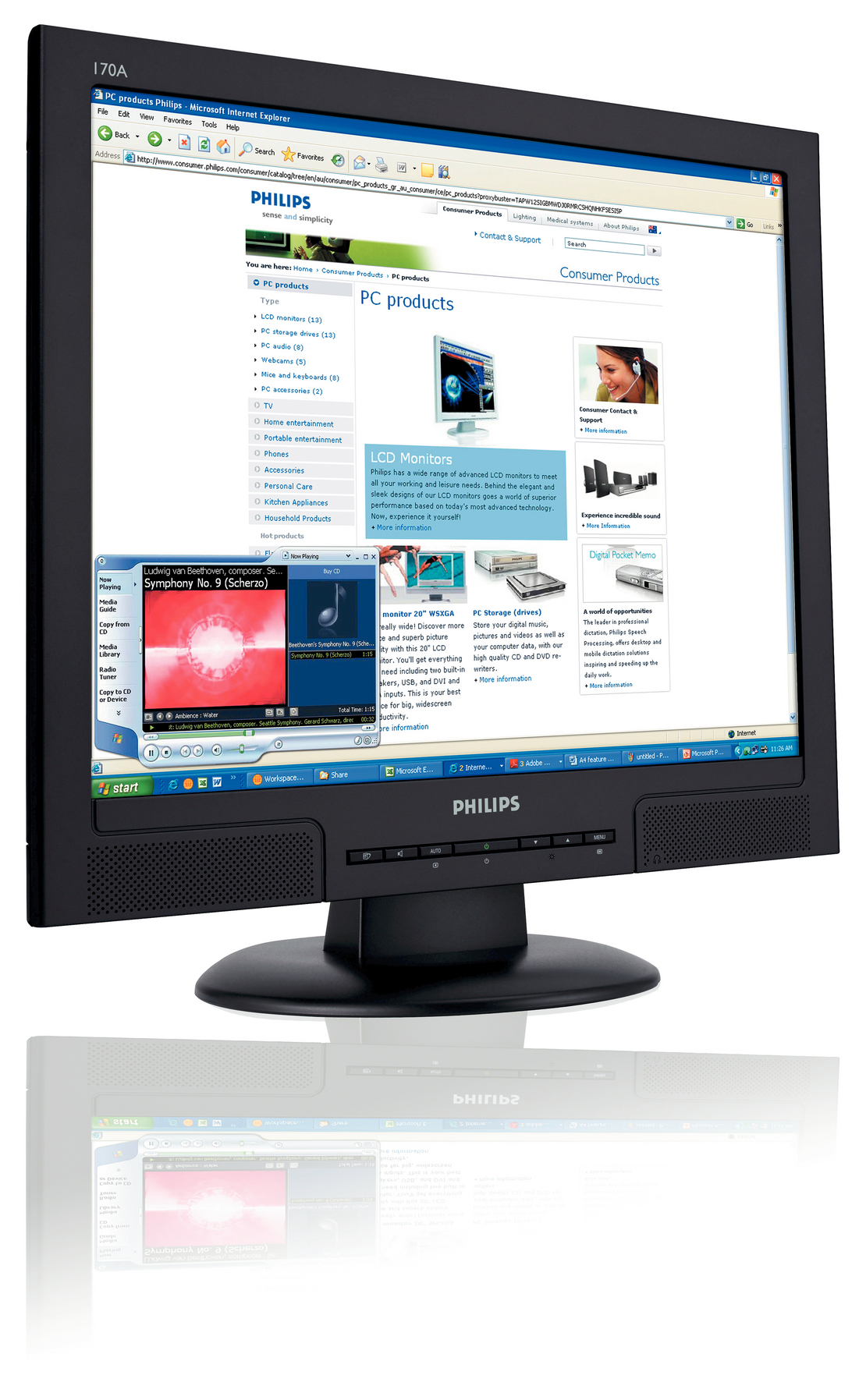

Philips 170A8FB 17" SXGA LCD monitor

Model 170A8FB/00EAN 8712581302092

91 specifications Checked 4 days ago

Overview

91 specifications in 13 groups

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Display technology	LCD
Touchscreen	No
HD type	SXGA
Display brightness (typical)	300 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	800:1
Contrast ratio (dynamic)	3000:1
Dynamic contrast ratio marketing name	SmartContrast
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
DDC/CI	Yes
Colour gamut standard	sRGB
Pixel frequency	140 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω
White Chromaticity, 6500K	x = 0.313 / y = 0.329
White Chromaticity, 9300K	x = 0.283 / y = 0.297

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Product colour	Black
Feet colour	Black

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Operation, Stand-by

Specification	Value
Power consumption (typical)	33 W
Power consumption (off)	1 W
Power consumption (PowerSave)	27 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Specification	Value
Cables included	AC, Audio (3.5mm), VGA
Manual	Yes

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
On/off switch	Yes
Display viewable area (HxV)	337.9 x 270.3 mm
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Certification	CE Mark EMC FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo
Box depth (imperial)	16 cm (6.3")
Box height (imperial)	39.1 cm (15.4")
Set depth (inch)	5.84 cm (2.3")
Set depth (with stand) (inch)	21.1 cm (8.3")
Set height (inch)	34 cm (13.4")
Set height (with stand) (inch)	38.9 cm (15.3")
Weight (with stand) (imperial)	4.76 kg (10.5 lbs)
Supplied AC adapter type	AC
