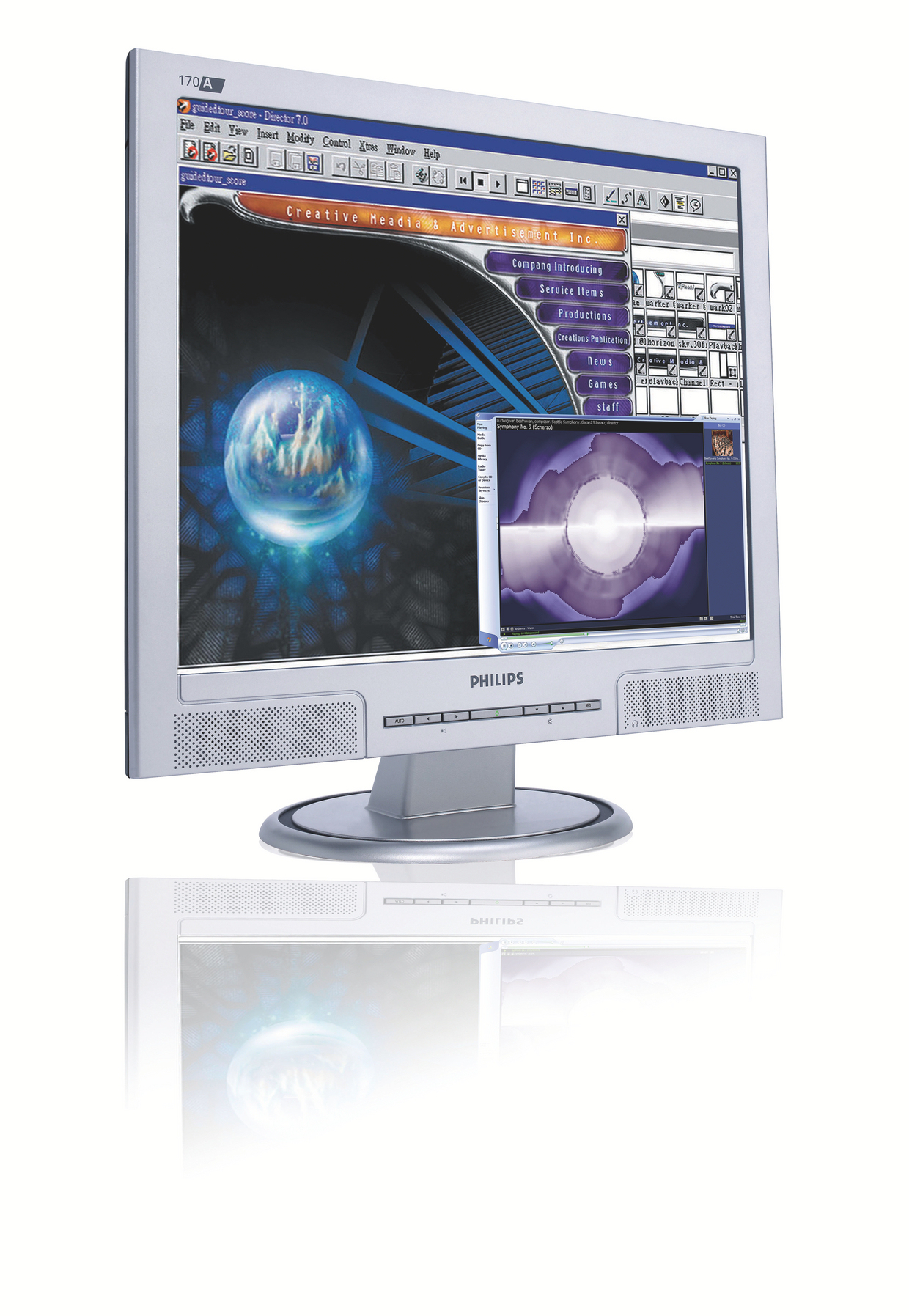

Philips 170A7FS 17" SXGA LCD monitor
Model 170A7FS/69EAN 8710895968027
75 specifications Checked 11 days ago
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourSilver
- Built-in speaker(s)Yes
- USB Type-A downstream ports quantity0
- Power consumption (typical)33 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Silver
- Built-in speaker(s)
- Yes
- USB Type-A downstream ports quantity
- 0
- Power consumption (typical)
- 33 W
- Brand
- Philips
- Category
- Monitor
- Model
- 170A7FS/69
- Part number
- 170A7FS/69
- EAN / UPC
- 8710895968027
- Also known as
- Philips 170A7FS 17" SXGA LCD monitor
Specifications
75 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Display surface | Matt |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 600:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Viewable size diagonal | 43 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x6 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 0 |
| Audio output | Yes |
| PC Audio in | Yes |
| HDCP | No |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Dutch, English, Spanish, French, Italian |
| Number of OSD languages | 6 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 33 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 382 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 390 mm |
| Weight (with stand) | 4.8 kg |
| Width (without stand) | 382 mm |
| Depth (without stand) | 58 mm |
| Height (without stand) | 340 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 449 mm |
| Package depth | 489 mm |
| Package height | 182 mm |
| Package weight | 6.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Certification | CE Mark EMC Energy Star FCC-B UL CSA SEMKO TCO '03 TÜV/GS TÜV Ergo |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
