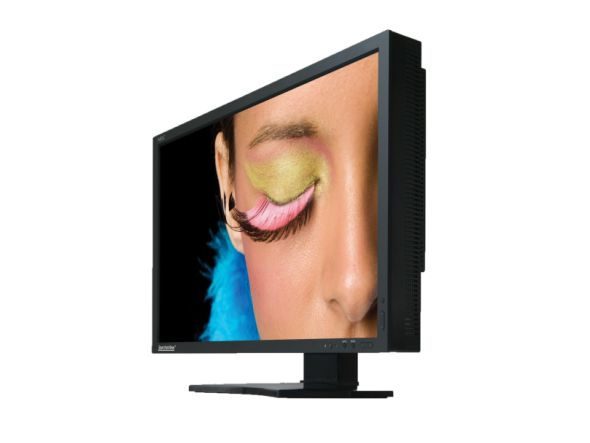

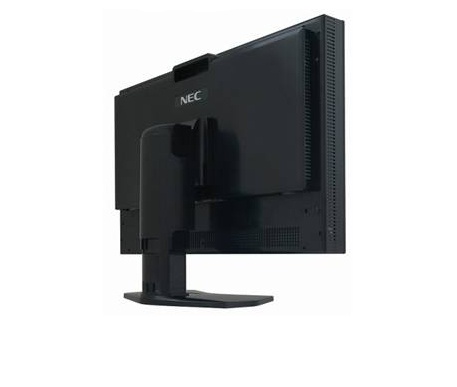

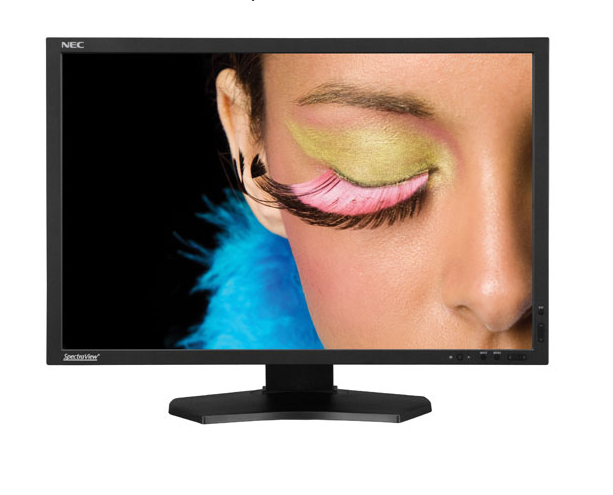

SpectraView 242
Model SpectraView 242Part no. SV242
74 specifications Checked today
- Display61.2 cm (24.1")
- Resolution1920 x 1200 pixels
- ColourBlack
- Built-in speaker(s)No
- USB Type-A downstream ports quantity0
- VESA mountingYes
Overview
- Display
- 61.2 cm (24.1")
- Resolution
- 1920 x 1200 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB Type-A downstream ports quantity
- 0
- VESA mounting
- Yes
- Brand
- NEC
- Category
- Monitor
- Model
- SpectraView 242
- Part number
- SV242
- Also known as
- NEC SpectraView 242 computer monitor 61.2 cm (24.1") 1920 x 1200 pixels Full HD LED Black
Specifications
74 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61.2 cm (24.1") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 340 cd/m² |
| Response time | 8 ms |
| Supported graphics resolutions | 720 x 400, 720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 1080i, 1080p, 720p |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.270 x 0.270 mm |
| Horizontal scan range | 31.5 - 93.8 kHz |
| Vertical scan range | 50 - 85 Hz |
| Digital horizontal frequency | 31.5 - 91.1 kHz |
| Digital vertical frequency | 50 - 85 Hz |
| Colour gamut standard | sRGB |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Mobile High-Definition Link (MHL) | No |
| Card reader integrated | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 30° |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 37 W |
| Power consumption (max) | 56 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 556.8 mm |
| Depth (without stand) | 227.6 mm |
| Height (without stand) | 378 mm |
| Weight (without stand) | 10.6 kg |
| Bezel width (side) | 1.82 cm |
| Bezel width (top) | 1.82 cm |
| Bezel width (bottom) | 1.82 cm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DisplayPort, DVI |
| Manual | Yes |
| Bundled software | SpectraView Profiler |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Certification | EAC; CE; TÜV Ergonomics; TÜV GS; C-tick; FCC Class B; UL/C-UL / CSA; CCC; ISO 9241-307; MPR II/ MPR III; PCBC/B-mark; PSB; RoHS |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
