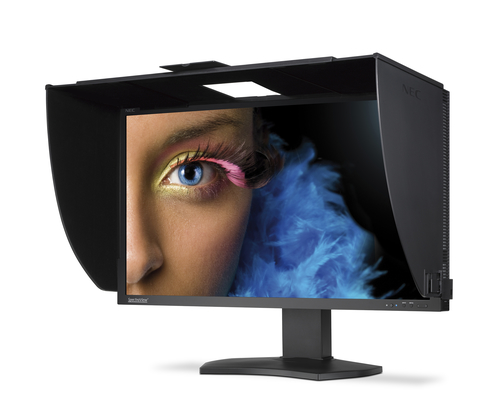

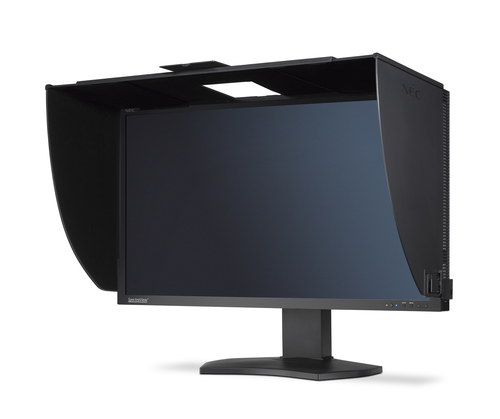

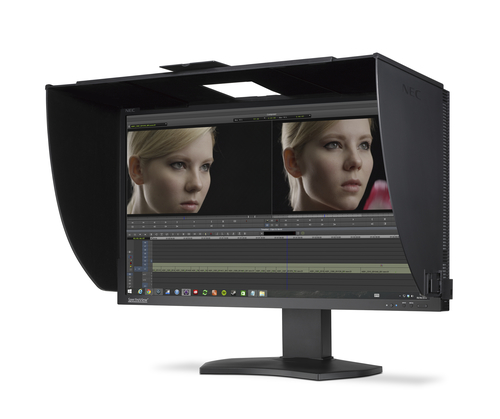

NEC Reference 322UHD
Model Reference 322UHDPart no. 60003686EAN 4053162830226
87 specifications Checked 3 days ago
- Display80 cm (31.5")
- Resolution3840 x 2160 pixels
- Energy classD
- ColourBlack
- Built-in speaker(s)Yes
- Market positioningBusiness
Overview
- Display
- 80 cm (31.5")
- Resolution
- 3840 x 2160 pixels
- Energy class
- D
- Colour
- Black
- Built-in speaker(s)
- Yes
- Market positioning
- Business
- Brand
- NEC
- Category
- Monitor
- Model
- Reference 322UHD
- Part number
- 60003686
- EAN / UPC
- 4053162830226, 5028695111912
- Also known as
- NEC SpectraView Reference 322UHD computer monitor 80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD LED Black
Specifications
87 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 350 cd/m² |
| Response time | 12 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 720 x 400, 832 x 624, 1152 x 870, 2560 x 1440, 3840 x 2160, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.18 x 0.18 mm |
| Horizontal scan range | 31.5 - 134 kHz |
| Vertical scan range | 24 - 120 Hz |
| DDC/CI | Yes |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 2 |
| USB Type-A downstream ports quantity | 3 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| DVI-D ports quantity | 2 |
| HDMI ports quantity | 4 |
| DisplayPorts quantity | 2 |
| Headphone out | Yes |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,200 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 30° |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 95 W |
| Power consumption (PowerSave) | 5 W |
| AC input voltage | 220 - 240 V |
| Annual energy consumption | 139 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 30 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 745 mm |
| Depth (with stand) | 302 mm |
| Height (with stand) | 469 mm |
| Weight (with stand) | 20.5 kg |
| Width (without stand) | 745 mm |
| Bezel width (side) | 2.19 cm |
| Bezel width (top) | 2.25 cm |
| Bezel width (bottom) | 2.25 cm |
Packaging data
| Specification | Value |
|---|---|
| User Guide on CD-ROM | Yes |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Rotating | Yes |
| TV tuner integrated | No |
| ECO mode | Yes |
| Energy efficiency class (legacy scale) | D |
| Light sensor | Yes |
| Power consumption (economy mode) | 48 W |
| Certification | CE; EAC; FCC Class B; ISO 9241-307 (pixel failure class I); RoHS; UL/C-UL or CSA |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
