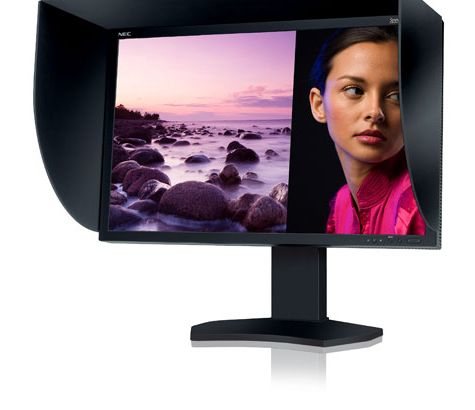

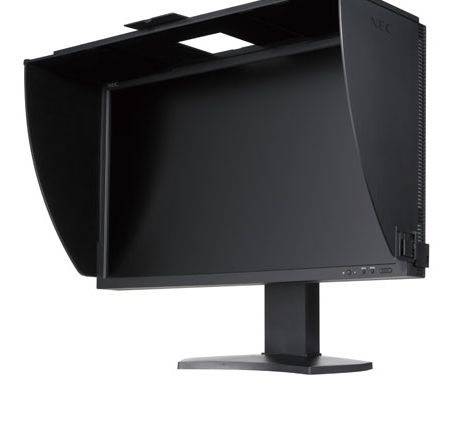

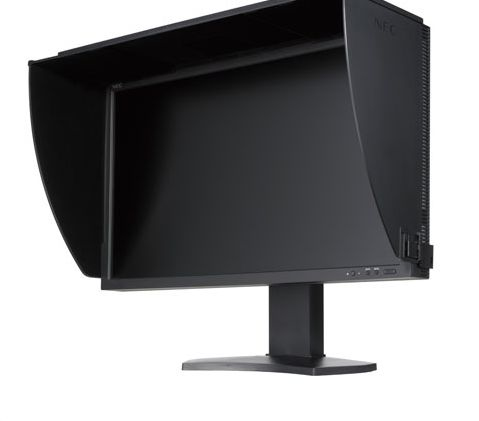

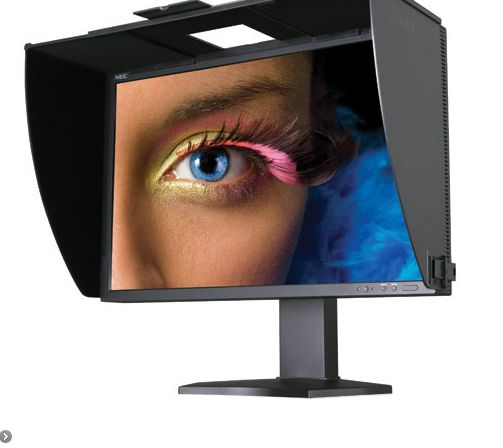

NEC Reference 302

Model Reference 302Part no. 100013445EAN 5054484882633

82 specifications Checked 2 days ago

Overview

Brand: NEC
Category: Monitor
Model: Reference 302
Part numbers: 100013445, 60003547
EAN / UPC: 5054484882633, 4053162585324, 5028695110380, 5054533882638
Also known as: NEC SpectraView Reference 302 computer monitor 76.2 cm (30") 2560 x 1600 pixels LED Black

82 specifications in 14 groups

Specification	Value
Display diagonal	76.2 cm (30")
Display resolution	2560 x 1600 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
Panel type	AH-IPS
Backlight type	RGB LED
Display brightness (typical)	340 cd/m²
Response time	6 ms
Screen shape	Flat
Supported graphics resolutions	720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1440 x 900, 1920 x 1440, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (V
Supported video modes	1080p, 576p, 720p
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0251 x 0.251 mm
Digital horizontal frequency	31.5 - 98.7 kHz
Digital vertical frequency	50 - 85 Hz
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No

Specification	Value
Windows operating systems supported	Windows 8

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Business
Product colour	Black

Specification	Value
Built-in USB hub	No
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Mini DisplayPorts quantity	1
AC (power) in	Yes

Specification	Value
Power consumption (typical)	63 W
Power consumption (max)	87 W
Power consumption (PowerSave)	1.4 W
AC input voltage	100 - 240 V
Annual energy consumption	92 kWh

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
User Guide on CD-ROM	Yes

Specification	Value
Cables included	AC, DVI, DisplayPort

Specification	Value
On/off switch	Yes
Rotating	Yes
TV tuner integrated	No
ECO mode	Yes
Energy efficiency class (legacy scale)	C
Power consumption (economy mode)	47 W
Certification	C-tick; CCC; CE; EAC; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PSB; RoHS; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Supplied AC adapter type	LED

Specification	Value
Thin client installed	No
