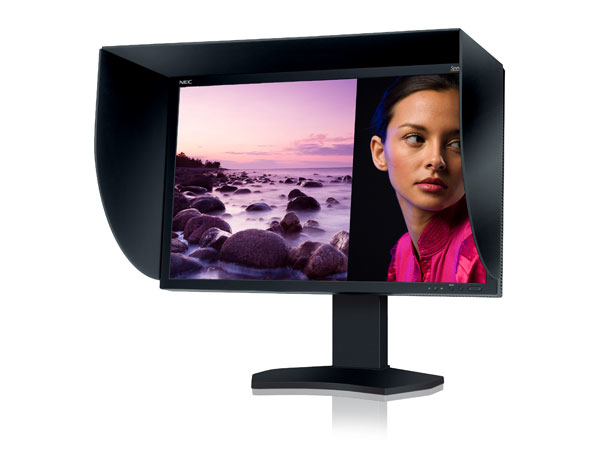

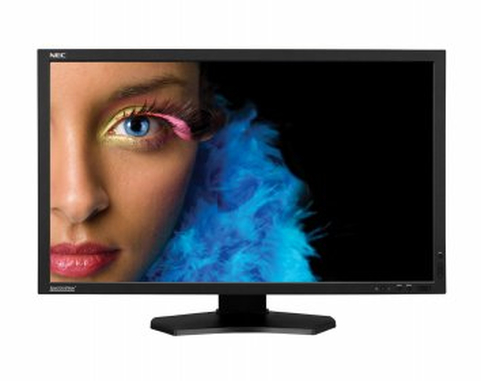

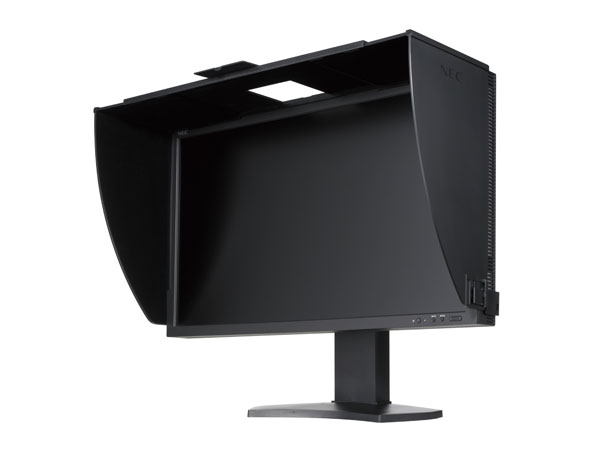

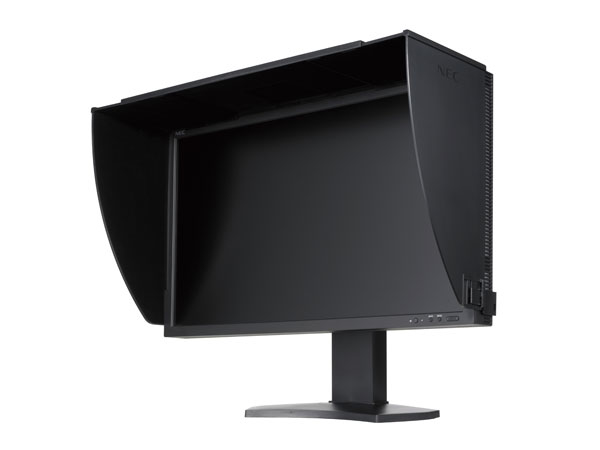

NEC Reference 272

NEC Reference 272

Model Reference 272Part no. 60003545EAN 4053162585300

80 specifications Checked 3 days ago
  • Display68.6 cm (27")
  • Resolution2560 x 1440 pixels
  • Energy classC
  • ColourBlack
  • Built-in speaker(s)No
  • Market positioningBusiness
See all specifications

Overview

Display
68.6 cm (27")
Resolution
2560 x 1440 pixels
Energy class
C
Colour
Black
Built-in speaker(s)
No
Market positioning
Business
Brand
NEC
Category
Monitor
Model
Reference 272
Part number
60003545
EAN / UPC
4053162585300, 5028695110373, 5052183917212
Also known as
NEC SpectraView Reference 272 computer monitor 68.6 cm (27") 2560 x 1440 pixels Quad HD LED Black

Specifications

80 specifications in 12 groups

Display

Display diagonal68.6 cm (27")
Display resolution2560 x 1440 pixels
Native aspect ratio16:9
Display technologyLED
TouchscreenNo
HD typeQuad HD
Panel typeAH-IPS
Backlight typeRGB LED
Display brightness (typical)340 cd/m²
Response time6 ms
Screen shapeFlat
Supported graphics resolutions720 x 400, 720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1200 x 1920, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080p, 480p, 576p, 720p
Aspect ratio16:9
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours1.073 billion colours
Pixel pitch0.233 x 0.233 mm
Digital horizontal frequency31.5 - 96.5 kHz
Digital vertical frequency50 - 85 Hz
DDC/CIYes
Colour gamut standardsRGB
3DNo

Multimedia

Built-in speaker(s)No
Built-in cameraNo

Design

Market positioningBusiness
Product colourBlack
Feet colourBlack

Ports & interfaces

Built-in USB hubNo
USB Type-A downstream ports quantity0
VGA (D-Sub) ports quantity0
DVI portYes
DVI-D ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
Mini DisplayPorts quantity1
AC (power) inYes

Network

Wi-FiNo
BluetoothNo
Ethernet LANNo

Ergonomics

VESA mountingYes
Panel mounting interface100 x 100,200 x 100 mm
Cable lock slotYes
Cable lock slot typeKensington
Height adjustmentYes
Adjustable height (max)15 cm
SwivellingYes
Swivel angle range-45 - 45°
Tilt adjustmentYes
Tilt angle range5 - 30°
Picture-in-PictureYes
On Screen Display (OSD)Yes
Plug and PlayYes
LED indicatorsPower

Power

Power consumption (typical)50 W
Power consumption (max)73 W
Power consumption (PowerSave)1.4 W
AC input voltage100 - 240 V
Annual energy consumption73 kWh

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width (with stand)640.4 mm
Depth (with stand)235.5 mm
Height (with stand)396.2 mm
Weight (with stand)12.9 kg
Width (without stand)640.4 mm
Bezel width (side)2.03 cm
Bezel width (top)2 cm
Bezel width (bottom)2 cm

Packaging content

ManualYes

Other features

On/off switchYes
TV tuner integratedNo
ECO modeYes
Energy efficiency class (legacy scale)C
Power consumption (economy mode)37 W
Power managementYes
CertificationC-tick; CCC; CE; EAC; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PSB; RoHS; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Supplied AC adapter typeLED

Thin Client

Thin client installedNo
