PA302W-BK computer monitor
76.2 cm (30") 2560 x 1600 pixels Black
Model PA302W-BKEAN 8057360481316
53 specifications Checked today
- Display76.2 cm (30")
- Resolution2560 x 1600 pixels
- ColourBlack
- Built-in cameraNo
- USB Type-A downstream ports quantity0
- VESA mountingYes
Overview
- Display
- 76.2 cm (30")
- Resolution
- 2560 x 1600 pixels
- Colour
- Black
- Built-in camera
- No
- USB Type-A downstream ports quantity
- 0
- VESA mounting
- Yes
- Brand
- NEC
- Category
- Monitor
- Model
- PA302W-BK
- Part number
- PA302W-BK
- EAN / UPC
- 8057360481316
- Also known as
- NEC PA302W-BK computer monitor 76.2 cm (30") 2560 x 1600 pixels Black
Specifications
53 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 76.2 cm (30") |
| Display resolution | 2560 x 1600 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| Display brightness (typical) | 340 cd/m² |
| Response time | 6 ms |
| Supported graphics resolutions | 2560 x 1600 (WQXGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.25 x 0.25 mm |
| Horizontal scan range | 31.5 - 98.7 kHz |
| Vertical scan range | 50 - 85 Hz |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

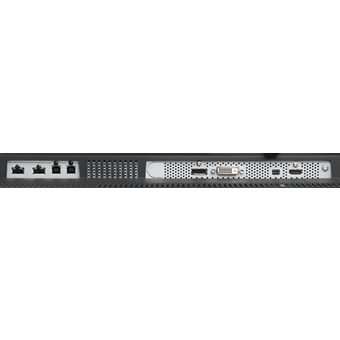

Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,200 x 100 mm |
| Cable lock slot | No |

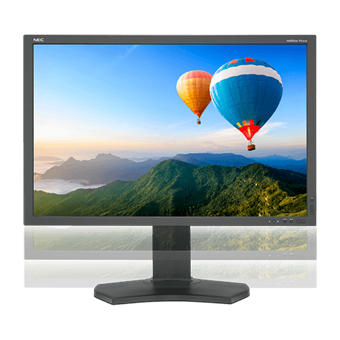

| Height adjustment | Yes |

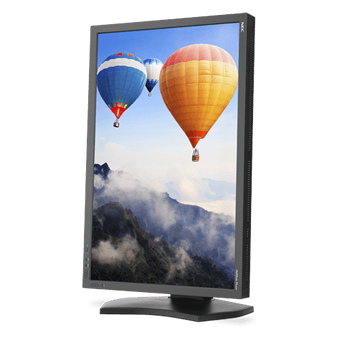

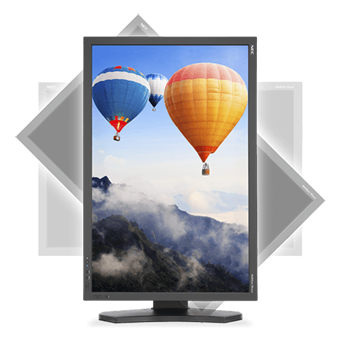

| Pivot | Yes |

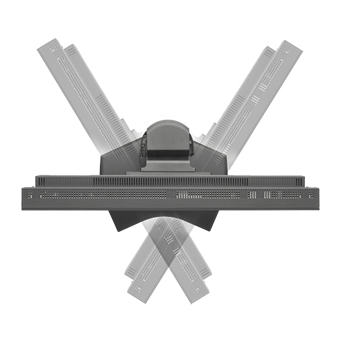

| Swivelling | Yes |
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 87 W |
| Power consumption (PowerSave) | 1.4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 688.3 mm |
| Depth (with stand) | 301.6 mm |
| Height (with stand) | 616.4 mm |
| Weight (with stand) | 17 kg |
| Width (without stand) | 688 mm |
| Depth (without stand) | 82 mm |
| Height (without stand) | 446.8 mm |
| Weight (without stand) | 10.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DisplayPort, DVI, USB |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Certification | RoHS |
| Supplied AC adapter type | LED |
