MultiSync PA301W computer monitor
75.7 cm (29.8") 2560 x 1600 pixels LED Black
Model PA301WPart no. 60002926EAN 805736036343
60 specifications Checked today
- Display75.7 cm (29.8")
- Resolution2560 x 1600 pixels
- ColourBlack
- Built-in speaker(s)No
- USB hub version2.0
- VESA mountingYes
Overview
- Display
- 75.7 cm (29.8")
- Resolution
- 2560 x 1600 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB hub version
- 2.0
- VESA mounting
- Yes
- Brand
- NEC
- Category
- Monitor
- Model
- PA301W
- Part numbers
- 60002926, PA301W-BK
- EAN / UPC
- 805736036343, 5028695105973, 5028695108134
- Also known as
- NEC MultiSync PA301W computer monitor 75.7 cm (29.8") 2560 x 1600 pixels LED Black
Specifications
60 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 75.7 cm (29.8") |
| Display resolution | 2560 x 1600 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| Panel type | IPS |
| Backlight type | CCFL |
| Display brightness (typical) | 350 cd/m² |
| Response time | 7 ms |
| Display surface | Matt |
| Supported graphics resolutions | 2560 x 1600 (WQXGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.25 x 0.25 mm |
| Digital horizontal frequency | 31.5 - 98.7 kHz |
| Digital vertical frequency | 30 - 87 Hz |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

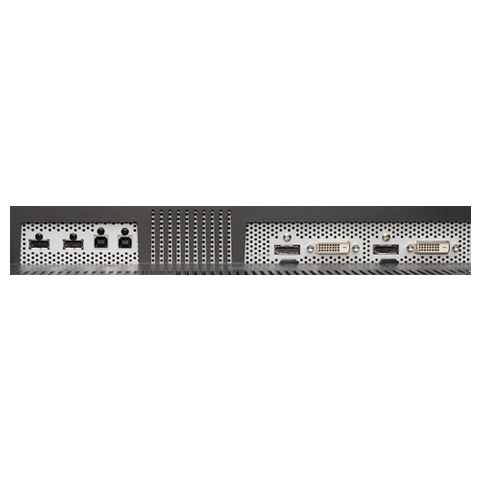

Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 5 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| DVI-D ports quantity | 2 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,200 x 100 mm |
| Cable lock slot | No |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 155 W |
| Power consumption (standby) | 1.7 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 30 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 688.3 mm |
| Depth (with stand) | 302.3 mm |
| Height (with stand) | 467.4 mm |
| Weight (with stand) | 18.8 kg |
| Width (without stand) | 688.3 mm |
| Depth (without stand) | 124.5 mm |
| Height (without stand) | 447 mm |
| Weight (without stand) | 12.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, DVI, USB |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Certification | TCO, RoHS |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
