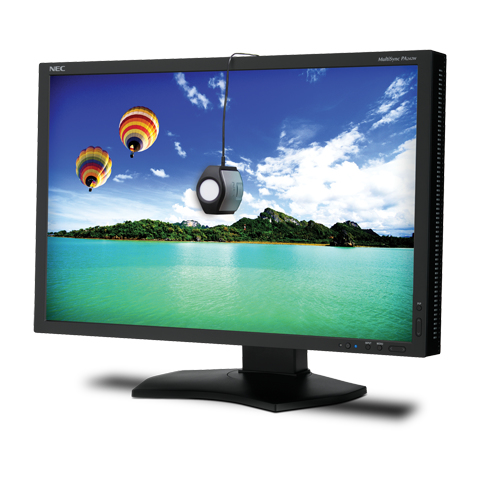

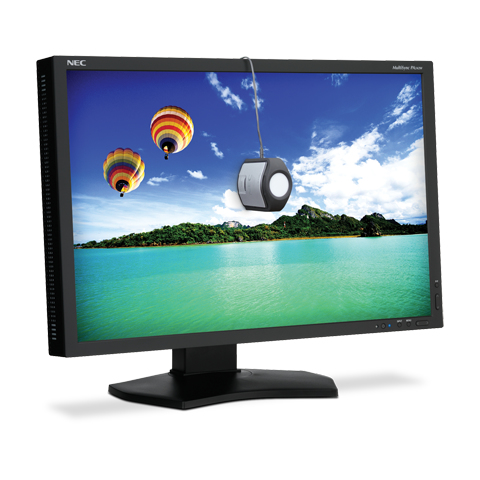

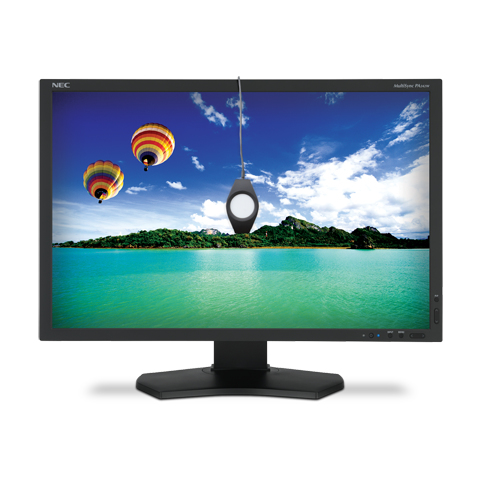

NEC PA242W-BK-SV computer monitor

PA242W-BK-SV computer monitor

61.2 cm (24.1") 1920 x 1200 pixels LED Black

Model PA242W-BK-SVEAN 805736046243

56 specifications Checked today

Display61.2 cm (24.1")
Resolution1920 x 1200 pixels
ColourBlack
Built-in speaker(s)No
USB hub version2.0
VESA mountingYes

See all specifications

Overview

Display: 61.2 cm (24.1")
Resolution: 1920 x 1200 pixels
Colour: Black
Built-in speaker(s): No
USB hub version: 2.0
VESA mounting: Yes

Brand: NEC
Category: Monitor
Model: PA242W-BK-SV
Part number: PA242W-BK-SV
EAN / UPC: 805736046243, 863189896181, 8057360462438
Also known as: NEC PA242W-BK-SV computer monitor 61.2 cm (24.1") 1920 x 1200 pixels LED Black

Specifications

56 specifications in 11 groups

Display

Specification	Value
Display diagonal	61.2 cm (24.1")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
Panel type	AH-IPS
Display brightness (typical)	340 cd/m²
Response time	8 ms
Supported graphics resolutions	1920 x 1200 (WUXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.27 x 0.27 mm
Horizontal scan range	31.5 - 93.8 kHz
Vertical scan range	50 - 85 Hz
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	5
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Pivot	Yes
Swivelling	Yes
Tilt adjustment	Yes
On Screen Display (OSD)	Yes

Power

Specification	Value
Power consumption (typical)	56 W
Power consumption (PowerSave)	0.2 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 2000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	556.3 mm
Depth (with stand)	228.6 mm
Weight (with stand)	10.6 kg
Width (without stand)	556.3 mm
Depth (without stand)	83.8 mm
Height (without stand)	363.2 mm
Weight (without stand)	7.4 kg

Packaging content

Specification	Value
Cables included	DisplayPort, DVI, USB, Power

Other features

Specification	Value
TV tuner integrated	No
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
