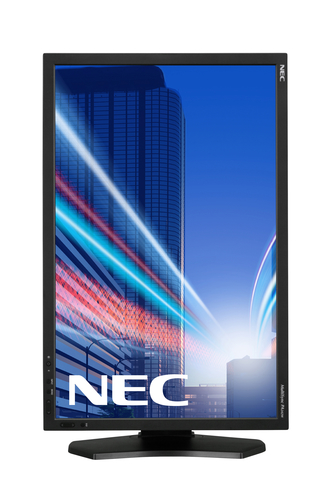

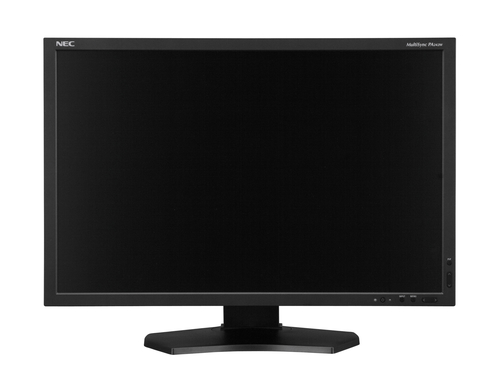

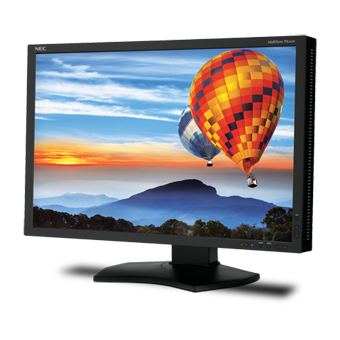

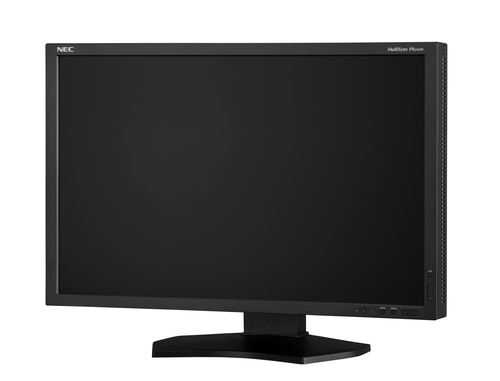

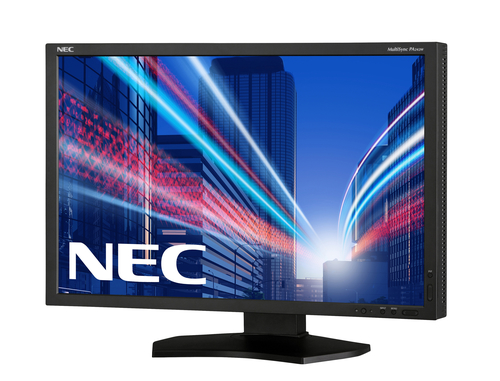

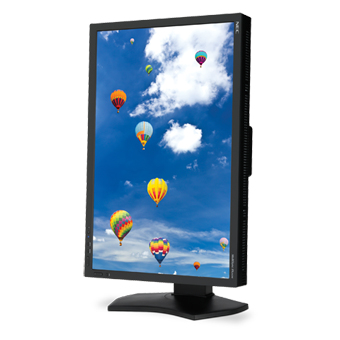

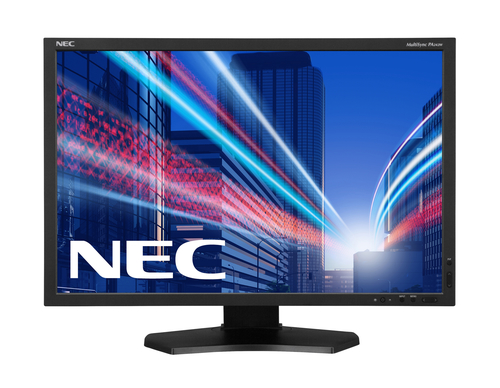

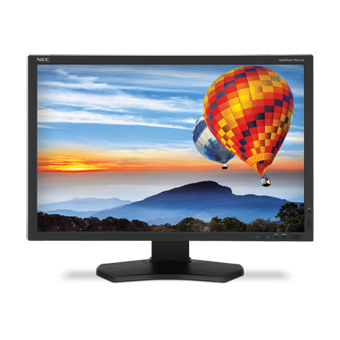

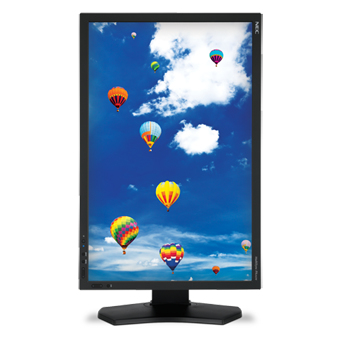

NEC MultiSync PA242W computer monitor

MultiSync PA242W computer monitor

61.2 cm (24.1") 1920 x 1200 pixels LED Black

Model PA242WPart no. 60003491EAN 5028695109902

83 specifications Checked today

Display61.2 cm (24.1")
Resolution1920 x 1200 pixels
Energy classC
ColourBlack
Windows operating systems supportedWindows 8
Built-in speaker(s)No

See all specifications

Overview

Display: 61.2 cm (24.1")
Resolution: 1920 x 1200 pixels
Energy class: C
Colour: Black
Windows operating systems supported: Windows 8
Built-in speaker(s): No

Brand: NEC
Category: Monitor
Model: PA242W
Part numbers: 60003491, 60003490
EAN / UPC: 5028695109902, 805736046236, 4053162585256, 5028695109919 +1 more
Also known as: NEC MultiSync PA242W computer monitor 61.2 cm (24.1") 1920 x 1200 pixels LED Black

Specifications

83 specifications in 14 groups

Display

Specification	Value
Display diagonal	61.2 cm (24.1")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
Panel type	AH-IPS
Backlight type	RGB LED
Display brightness (typical)	340 cd/m²
Response time	8 ms
Screen shape	Flat
Supported graphics resolutions	640 x 544, 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Digital horizontal frequency	31.5 - 91.1 kHz
Digital vertical frequency	50 - 85 Hz
DDC/CI	Yes

Performance

Specification	Value
Windows operating systems supported	Windows 8

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	2
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
AC (power) in	Yes

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100,200 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 30°
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	37 W
Power consumption (max)	56 W
AC input voltage	100 - 240 V
Annual energy consumption	54 kWh

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	556.8 mm
Depth (with stand)	227.6 mm
Height (with stand)	378 mm
Weight (with stand)	10.6 kg
Width (without stand)	556.8 mm
Depth (without stand)	85 mm
Height (without stand)	362.4 mm
Weight (without stand)	7.4 kg
Bezel width (side)	1.82 cm
Bezel width (top)	1.82 cm
Bezel width (bottom)	1.82 cm

Packaging data

Specification	Value
User Guide on CD-ROM	Yes

Packaging content

Specification	Value
Cables included	DVI, Mini DisplayPort
Quick start guide	Yes

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
ECO mode	Yes
Energy efficiency class (legacy scale)	C
Power consumption (economy mode)	28 W
Certification	C-tick; CCC; CE; ErP; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PCT/Gost; PSB; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
