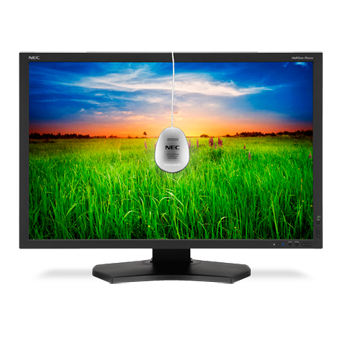

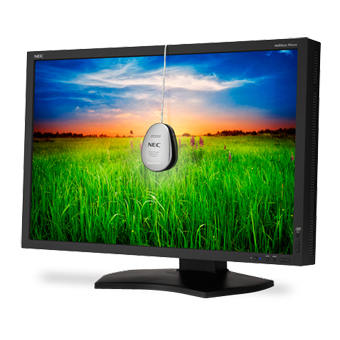

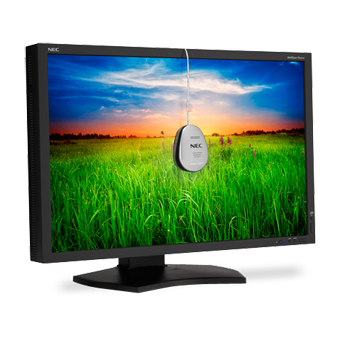

NEC MultiSync PA301W-BK-SV

MultiSync PA301W-BK-SV

Model MultiSync PA301W-BK-SVPart no. PA301W-BK-SVEAN 805736037555

65 specifications Checked today

Display76.2 cm (30")
Resolution2560 x 1600 pixels
ColourBlack
Built-in speaker(s)No
USB hub version2.0
VESA mountingYes

See all specifications

Overview

Display: 76.2 cm (30")
Resolution: 2560 x 1600 pixels
Colour: Black
Built-in speaker(s): No
USB hub version: 2.0
VESA mounting: Yes

Brand: NEC
Category: Monitor
Model: MultiSync PA301W-BK-SV
Part number: PA301W-BK-SV
EAN / UPC: 805736037555
Also known as: NEC MultiSync PA301W-BK-SV computer monitor 76.2 cm (30") 2560 x 1600 pixels Full HD Black

Specifications

65 specifications in 10 groups

Display

Specification	Value
Display diagonal	76.2 cm (30")
Display resolution	2560 x 1600 pixels
Native aspect ratio	16:10
Touchscreen	No
HD type	Full HD
Display brightness (typical)	350 cd/m²
Response time	7 ms
Supported graphics resolutions	720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 80
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.25 x 0.25 mm
Viewable size diagonal	75.7 cm
Digital horizontal frequency	31.5 - 98.7 kHz
Digital vertical frequency	30 - 87 Hz
3D	Yes
Video input impedance	75 Ω

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	5
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	2
DVI-I ports quantity	0
HDMI	No
HDMI ports quantity	0
DisplayPorts quantity	2
HDCP	Yes
SCART ports quantity	0
Component video (YPbPr/YCbCr) in	0
RS-232 ports	0
S-Video inputs quantity	0

Network

Specification	Value
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100,200 x 100 mm
Cable lock slot	No
Adjustable height (max)	15 cm
Pivot	Yes
On Screen Display (OSD)	Yes

Power

Specification	Value
Power consumption (typical)	155 W
Power consumption (PowerSave)	1.7 W
AC input voltage	100 - 240 V

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	30 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 3048 m

Weight & dimensions

Specification	Value
Width (with stand)	688.3 mm
Depth (with stand)	302.3 mm
Height (with stand)	617.2 mm
Weight (with stand)	18.8 kg
Width (without stand)	688.3 mm
Depth (without stand)	124.5 mm
Height (without stand)	447 mm
Weight (without stand)	12.5 kg

Other features

Specification	Value
Swivel webcam	No
TV tuner integrated	No
Ethernet LAN (RJ-45) ports	0
Compliance industry standards	RoHS
Certification	UL / C-UL, CE, Gost/PCT, PSB, CCC, NOM, TUV GS, FCC Class B/Canadian DOC, C-tick, MPR III, VCCI (class 2) TSO 5.0
