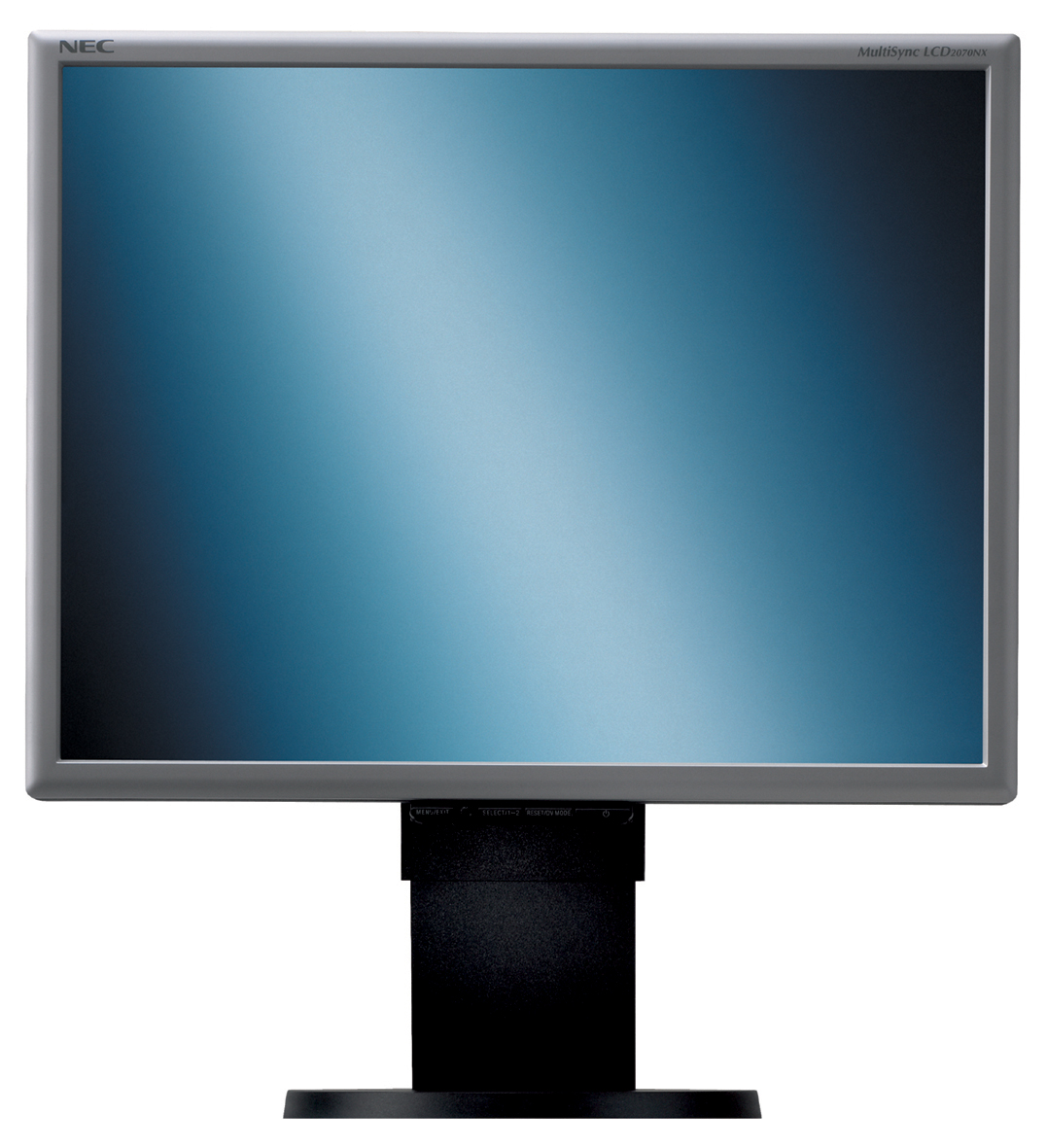

NEC MultiSync® LCD2070NX RoHS (Silver front bezel, black back cabinet)

MultiSync® LCD2070NX RoHS (Silver front bezel, black back cabinet)

Model MultiSync® LCD2070NX RoHS (Silver front bezel, black back cabinet)Part no. 60001554EAN 5028695104006

30 specifications Checked today

Display51 cm (20.1")
Resolution1600 x 1200 pixels
VGA (D-Sub) ports quantity1
Swivel angle range170 - 170°
Power consumption (typical)66 W
Operating relative humidity (H-H)30 - 80%

See all specifications

Overview

Display: 51 cm (20.1")
Resolution: 1600 x 1200 pixels
VGA (D-Sub) ports quantity: 1
Swivel angle range: 170 - 170°
Power consumption (typical): 66 W
Operating relative humidity (H-H): 30 - 80%

Brand: NEC
Category: Monitor
Model: MultiSync® LCD2070NX RoHS (Silver front bezel, black back cabinet)
Part number: 60001554
EAN / UPC: 5028695104006
Also known as: NEC MultiSync® LCD2070NX RoHS (Silver front bezel, black back cabinet) computer monitor 51 cm (20.1") 1600 x 1200 pixels

Specifications

30 specifications in 7 groups

Display

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1600 x 1200 pixels
Touchscreen	No
Display brightness (typical)	250 cd/m²
Response time	16 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Display number of colours	16.78 million colours
Pixel pitch	0.255
Horizontal scan range	31.5 - 91.1 kHz
Vertical scan range	56 - 85 Hz

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1

Ergonomics

Specification	Value
Swivel angle range	170 - 170°
Tilt angle range	-5 - 30°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	66 W
Power consumption (standby)	3 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	30 - 80%
Maximum operating temperature range (T-T)	5 - 35 °C

Weight & dimensions

Specification	Value
Width (without stand)	442 mm
Depth (without stand)	220 mm
Height (without stand)	388.5 mm
Weight (without stand)	8.6 kg
Bezel width (side)	1.6 cm

Other features

Specification	Value
Power requirements	100-120 V/220-240 V; 0.75 A/ 0.4 A;
Compliance industry standards	ISO 13406-2 (Pixel Failure Class II);
Certification	CE; GEEA/Energy Label; Energy Star; FCC Class B; PCT Gost; TCO03; TÜV ERGONOMIE; TÜV GS; UL/C-UL or CSA; MPR II/ MPR III
Bundled hardware	Power Cable; Signal Cable VGA-VGA;
