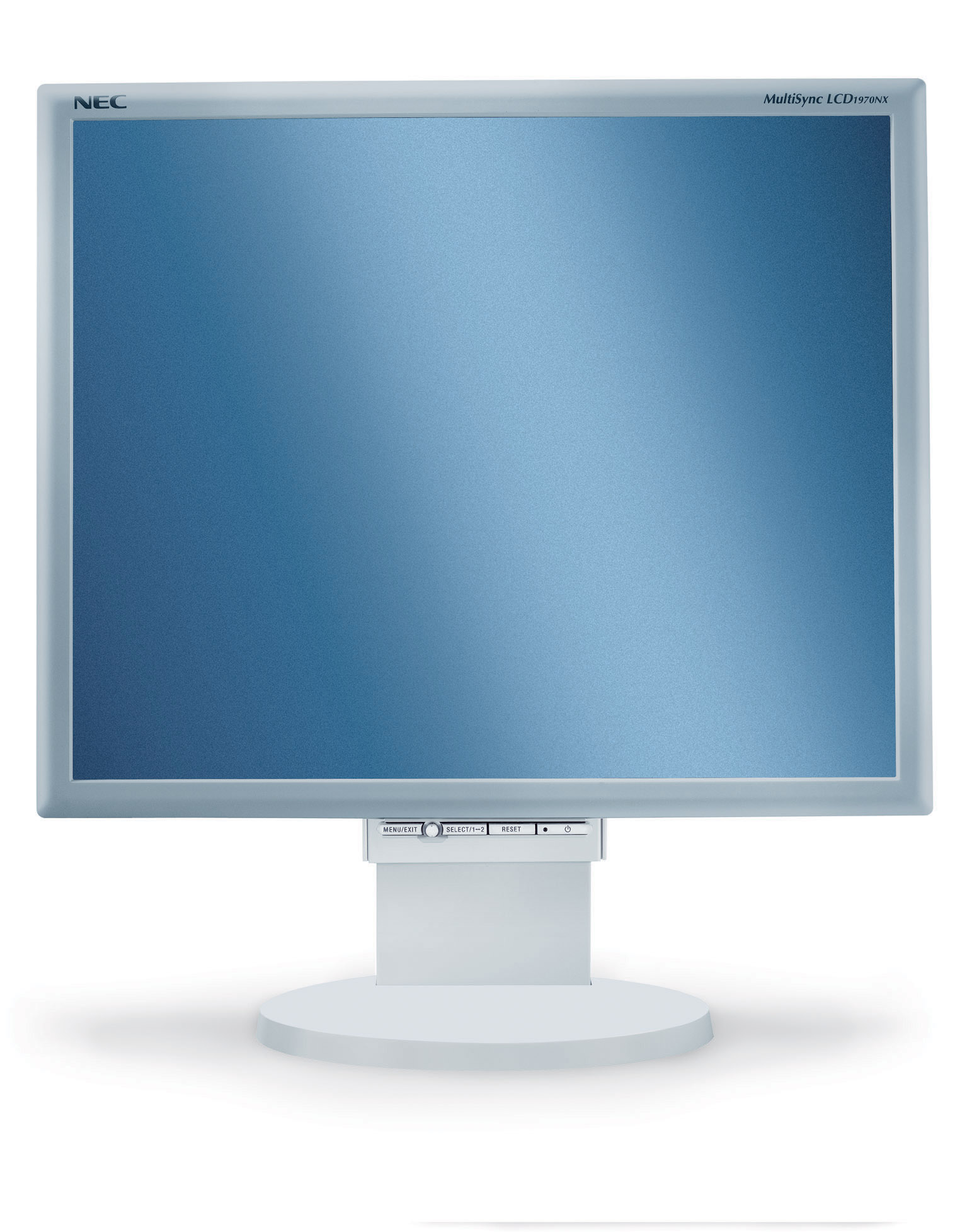

NEC MultiSync® LCD1970NX RoHS (Silver front bezel, light grey back cabinet)

MultiSync® LCD1970NX RoHS (Silver front bezel, light grey back cabinet)

Model MultiSync® LCD1970NX RoHS (Silver front bezel, light grey back cabinet)Part no. 60001634EAN 5028695104013

31 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
ColourIvory
VGA (D-Sub) ports quantity1
Panel mounting interface100 x 100 mm
Power consumption (typical)38 W

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Colour: Ivory
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 38 W

Brand: NEC
Category: Monitor
Model: MultiSync® LCD1970NX RoHS (Silver front bezel, light grey back cabinet)
Part number: 60001634
EAN / UPC: 5028695104013
Also known as: NEC MultiSync® LCD1970NX RoHS (Silver front bezel, light grey back cabinet) computer monitor 48.3 cm (19") 1280 x 1024 pixels Ivory

Specifications

31 specifications in 8 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	250 cd/m²
Response time	18 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Display number of colours	16.78 million colours
Pixel pitch	0.294
Horizontal scan range	31.5 - 81.1 kHz
Vertical scan range	56 - 75 Hz

Design

Specification	Value
Product colour	Ivory

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Swivel angle range	170 - 170°
Tilt angle range	-5 - 30°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	38 W
Power consumption (standby)	2 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	30 - 80%
Maximum operating temperature range (T-T)	5 - 35 °C

Weight & dimensions

Specification	Value
Width (without stand)	412.5 mm
Depth (without stand)	220 mm
Height (without stand)	386.5 mm
Weight (without stand)	7.5 kg
Bezel width (side)	1.71 cm

Other features

Specification	Value
Power requirements	100-120 V/220-240 V; 1.2 A/0.6 A;
Compliance industry standards	ISO 13406-2 (Pixel Failure Class II);
Certification	CE; GEEA Energy Label; Energy Star; FCC Class B; PCT Gost; TCO03; TÜV ERGONOMIE; TÜV GS; UL/C-UL or CSA; MPR II/ MPR III
