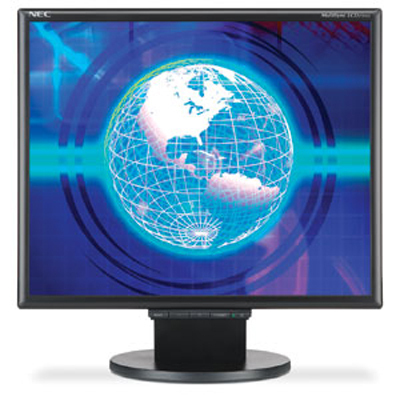

Multisync LCD175VXM+BK
Model Multisync LCD175VXM+BKPart no. LCD175VXM+BKEAN 805736017779
39 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Built-in speaker(s)Yes
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Brand
- NEC
- Category
- Monitor
- Model
- Multisync LCD175VXM+BK
- Part number
- LCD175VXM+BK
- EAN / UPC
- 805736017779
- Also known as
- NEC Multisync LCD175VXM+BK computer monitor 43.2 cm (17") 1280 x 1024 pixels Black
Specifications
39 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 270 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 600:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Horizontal scan range | 31.5 - 81.1 kHz |
| Vertical scan range | 56 - 76 Hz |
| Digital horizontal frequency | 31.5 - 81.1 kHz |
| Separate H/V sync | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (PowerSave) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 3048 m |
| Operating temperature (T-T) | 41 - 95 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 368 mm |
| Depth (with stand) | 358.5 mm |
| Height (with stand) | 230 mm |
| Weight (with stand) | 4.8 kg |
| Width (without stand) | 368 mm |
| Depth (without stand) | 320.5 mm |
| Height (without stand) | 61 mm |
| Weight (without stand) | 3.8 kg |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Power requirements | AC 100-120V / AC 220-240V |
| Certification | ISO 13406-2, Windows Vista |
| Display resolution at frequency | 720 x 400 @ 70 Hz 640 x 480 @ 60-75 Hz 800 x 600 @ 56-75 Hz 832 x 624 @ 75 Hz 1024 x 768 @ 60-75 Hz 1152 x 864 @ 70-75 Hz 1152 x 870 @ 75 Hz 1280 x 960 @ 60-75 Hz 1280 x 1024 @ 60-75 Hz |
