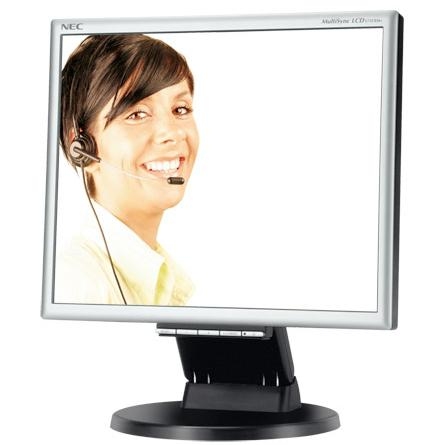

NEC MultiSync® LCD175VXM+

MultiSync® LCD175VXM+

Model MultiSync® LCD175VXM+Part no. LCD175VXM+

40 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
Built-in speaker(s)Yes
VGA (D-Sub) ports quantity1
Panel mounting interface100 x 100 mm
Power consumption (typical)34 W

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Built-in speaker(s): Yes
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 34 W

Brand: NEC
Category: Monitor
Model: MultiSync® LCD175VXM+
Part number: LCD175VXM+
Also known as: NEC MultiSync® LCD175VXM+ computer monitor 43.2 cm (17") 1280 x 1024 pixels

Specifications

40 specifications in 10 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	31.5 - 81.1 kHz
Vertical scan range	55 - 76 Hz

Multimedia

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
Headphone connectivity	3.5 mm

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Adjustable height (max)	5 cm
Tilt angle range	-5 - 30°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	34 W
Power consumption (PowerSave)	2 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%

Weight & dimensions

Specification	Value
Width (without stand)	368 mm
Depth (without stand)	230 mm
Height (without stand)	358 mm
Weight (without stand)	4.8 kg
Bezel width (side)	1.42 cm

Packaging content

Specification	Value
Cables included	AC, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Power requirements	100 - 240 VAC
Certification	CE; TCO 03; TÜV Ergonomics; TÜV GS; FCC Class B; PCT/Gost; UL/C-UL or CSA; ISO 13406-2 (class II); MPR II/ MPR III; RoHS
Additional accessories	CD
Supplied AC adapter type	LCD
