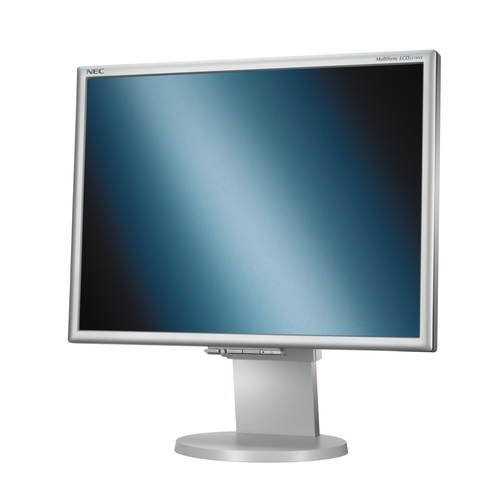

Multisync LCD 2170NX
Model Multisync LCD 2170NXPart no. 60001490
33 specifications Checked today
- Display54.1 cm (21.3")
- Resolution1600 x 1200 pixels
- ColourIvory
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)66 W
Overview
- Display
- 54.1 cm (21.3")
- Resolution
- 1600 x 1200 pixels
- Colour
- Ivory
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 66 W
- Brand
- NEC
- Category
- Monitor
- Model
- Multisync LCD 2170NX
- Part number
- 60001490
- Also known as
- NEC Multisync LCD 2170NX computer monitor 54.1 cm (21.3") 1600 x 1200 pixels Ivory
Specifications
33 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.1 cm (21.3") |
| Display resolution | 1600 x 1200 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 900:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.270 |
| Horizontal scan range | 31.5 - 91.1 kHz |
| Vertical scan range | 56 - 85 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Ivory |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Swivel angle range | 170 - 170° |
| Tilt angle range | -5 - 30° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 66 W |
| Power consumption (standby) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 30 - 80% |
| Maximum operating temperature range (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 466 mm |
| Depth (without stand) | 220 mm |
| Height (without stand) | 397.7 mm |
| Weight (without stand) | 9.2 kg |
| Bezel width (side) | 1.6 cm |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-120 V/220-240 V; 0.75 A/ 0.4 A; |
| Compliance industry standards | ISO 13406-2 (Pixel Failure Class II); |
| Certification | CE; GEEA/Energy Label; Energy Star; FCC Class B; PCT Gost; TCO03; TÜV ERGONOMIE; TÜV GS; UL/C-UL or CSA; MPR II/ MPR III |
| Bundled hardware | Power Cable; Signal Cable VGA-VGA; DVI-D - DVI-D Cable; USB Cable; |
| Speakers and microphone | Option: MultiSync Soundbar 70 |
