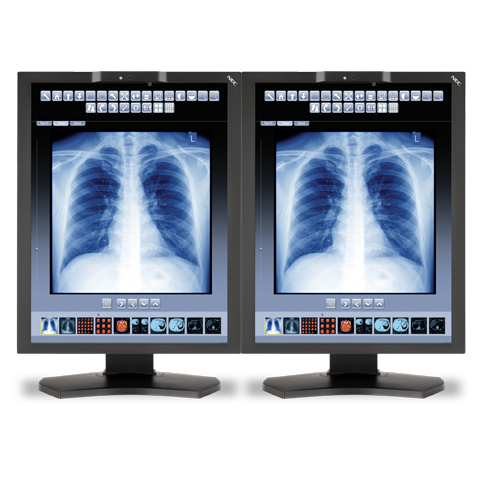

MDC3-BNDA1 computer monitor
54.1 cm (21.3") 2048 x 1536 pixels Black
Model MDC3-BNDA1EAN 805736046526
85 specifications Checked today
- Display54.1 cm (21.3")
- Resolution2048 x 1536 pixels
- ColourBlack
- Built-in speaker(s)No
- USB hub version2.0
- Power consumption (typical)85 W
Overview
- Display
- 54.1 cm (21.3")
- Resolution
- 2048 x 1536 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB hub version
- 2.0
- Power consumption (typical)
- 85 W
- Brand
- NEC
- Category
- Monitor
- Model
- MDC3-BNDA1
- Part number
- MDC3-BNDA1
- EAN / UPC
- 805736046526, 8057360465262
- Also known as
- NEC MDC3-BNDA1 computer monitor 54.1 cm (21.3") 2048 x 1536 pixels Black
Specifications
85 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.1 cm (21.3") |
| Display resolution | 2048 x 1536 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 800 cd/m² |
| Response time | 20 ms |
| Supported graphics resolutions | 2048 x 1536 (QXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.21 x 0.21 mm |
| Digital horizontal frequency | 31.5 - 94.8 kHz |
| Digital vertical frequency | 58 - 85 Hz |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 3 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Mini DisplayPorts quantity | 0 |
| Audio input | No |
| Audio output | No |
| Headphone outputs | 0 |
| Microphone in | No |
| HDCP | No |
| AC (power) in | Yes |
| Composite video in | 0 |
| Composite video out | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 0 |
| Digital audio optical out | 0 |
| BNC input ports | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Firewire (IEEE 1394) ports | 0 |
| RS-232 ports | 0 |
| RS-485 ports | 0 |
| S-Video inputs quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | No |
| Panel mounting interface | No |
| Cable lock slot | No |
| Height adjustment | Yes |
| Adjustable height (max) | 10.3 cm |
| Pivot | Yes |
| Swivelling | Yes |
| Tilt adjustment | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 85 W |
| Power consumption (standby) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 12192 m |
| Non-operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 373.4 mm |
| Depth (with stand) | 235.5 mm |
| Height (with stand) | 593.4 mm |
| Weight (with stand) | 11.8 kg |
| Width (without stand) | 473 mm |
| Depth (without stand) | 104.1 mm |
| Height (without stand) | 373.4 mm |
| Weight (without stand) | 7.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, DVI, USB |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Screen format adjustments | 4:3 |
| TV tuner integrated | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Certification | UL, PSB, SASO, CCC, Gost/PCT, CE-MDD, NOM, TUV GM, FCC, C-tick, RoHS, VCCI, ISO, AAPM-TG18, SB50, WEEE, DIN, JESRA |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
