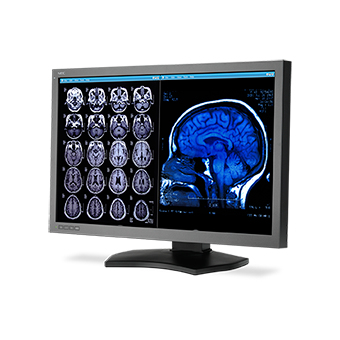

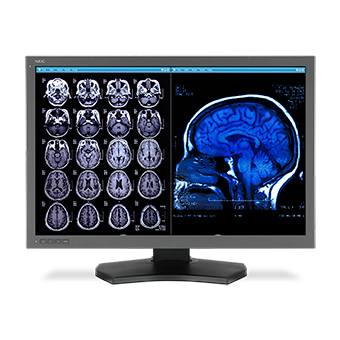

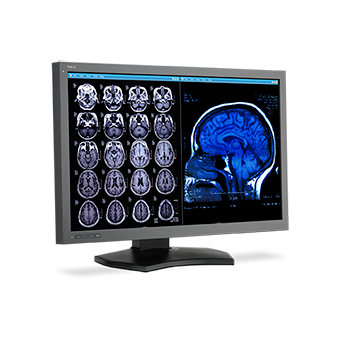

NEC MultiSync MD302C6 computer monitor

MultiSync MD302C6 computer monitor

76.2 cm (30") 3280 x 2048 pixels LCD Black

Model MD302C6EAN 5028695110922

55 specifications Checked today

Display76.2 cm (30")
Resolution3280 x 2048 pixels
ColourBlack
Megapixel (approx.)6 MP
Built-in USB hubYes
Power consumption (typical)173.5 W

See all specifications

Overview

Display: 76.2 cm (30")
Resolution: 3280 x 2048 pixels
Colour: Black
Megapixel (approx.): 6 MP
Built-in USB hub: Yes
Power consumption (typical): 173.5 W

Brand: NEC
Category: Monitor
Model: MD302C6
Part numbers: MD302C6, 60003534, 40000822
EAN / UPC: 5028695110922, 805736052923, 8057360529230
Also known as: NEC MultiSync MD302C6 computer monitor 76.2 cm (30") 3280 x 2048 pixels LCD Black

Specifications

55 specifications in 10 groups

Display

Specification	Value
Display diagonal	76.2 cm (30")
Display resolution	3280 x 2048 pixels
Display technology	LCD
Touchscreen	No
Panel type	TFT
Display brightness (typical)	800 cd/m²
Display brightness (min)	400 cd/m²
Response time	15 ms
Screen shape	Flat
Supported graphics resolutions	3280 x 2048
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	1.073 billion colours
Pixel pitch	0.2 x 0.2 mm
Pixel density	128.9 ppi
Horizontal scan range	31.5 - 126.5 kHz
Vertical scan range	30 - 70 Hz
Factory-calibrated	Yes

Multimedia

Specification	Value
Megapixel (approx.)	6 MP

Design

Specification	Value
Product colour	Black

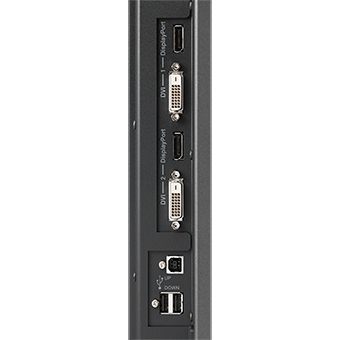

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	2
DVI port	Yes
DVI-D ports quantity	2
DisplayPorts quantity	2

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	200 x 100 mm
Cable lock slot	No

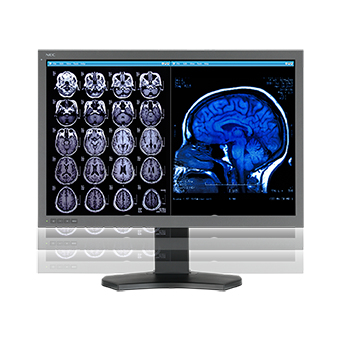

Height adjustment	Yes

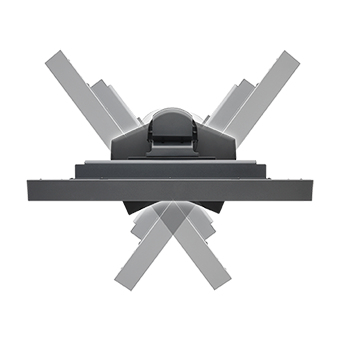

Swivelling	Yes

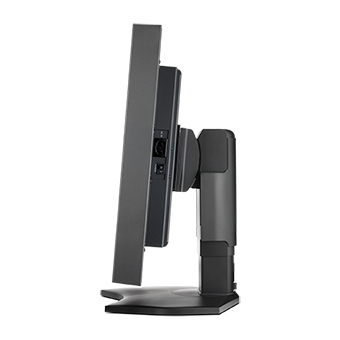

Tilt adjustment	Yes

Power

Specification	Value
Power consumption (typical)	173.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	-20 - 60%
Operating altitude	-400 - 3000 m
Non-operating altitude	-400 - 10000 m

Weight & dimensions

Specification	Value
Width (with stand)	695.6 mm
Depth (with stand)	301.6 mm
Height (with stand)	486.5 mm
Weight (with stand)	17.6 kg
Width (without stand)	695.6 mm
Depth (without stand)	100 mm
Height (without stand)	467.1 mm
Weight (without stand)	11.4 kg

Packaging content

Specification	Value
Cables included	AC, DVI, DisplayPort, USB
Quick start guide	Yes

Other features

Specification	Value
Certification	C-UL, EN 60950-1, 60601-1, WEEE, RoHS, CCC, AAPM-TG18, DIN V 6868-57, FDA 501(k)
Supplied AC adapter type	LED
