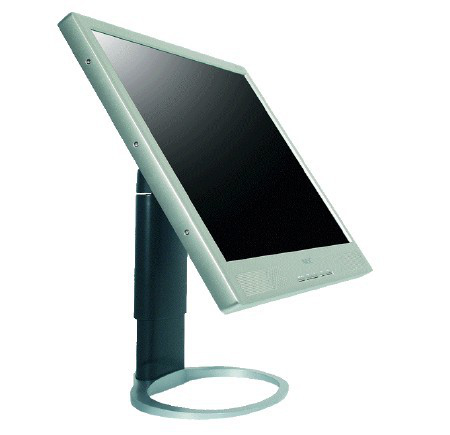

LH19m 19" LCD Display
Model LH19m 19" LCD DisplayPart no. NCL-1916-PH-B0
39 specifications Checked today
- Display48.3 cm (19")
- Resolution1024 x 768 pixels
- RMS rated power2 W
- USB Type-A downstream ports quantity0
- Adjustable height (max)13 cm
- Power consumption (typical)60 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1024 x 768 pixels
- RMS rated power
- 2 W
- USB Type-A downstream ports quantity
- 0
- Adjustable height (max)
- 13 cm
- Power consumption (typical)
- 60 W
- Brand
- NEC
- Category
- Monitor
- Model
- LH19m 19" LCD Display
- Part numbers
- NCL-1916-PH-B0, NCL-1916-P3-BH
- Also known as
- NEC LH19m 19" LCD Display computer monitor 48.3 cm (19") 1024 x 768 pixels
Specifications
39 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1024 x 768 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 |
| Horizontal scan range | 31.5 - 81 kHz |
| Vertical scan range | 55 - 76 Hz |
Multimedia
| Specification | Value |
|---|---|
| RMS rated power | 2 W |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| Audio input | Yes |
| Audio output | No |
| Microphone in | No |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable height (max) | 13 cm |
| Swivel angle range | -40 - 40° |
| Ergonomics | MPR-II, TCO 03, ISO 13406-2, Energy Star |
| Cable length | 1.8 m |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
| Power consumption (standby) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 420 mm |
| Depth (without stand) | 200 mm |
| Height (without stand) | 395 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 485 x 250 x 475 mm |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 376.32 x 301 mm |
| Power requirements | 100-240V; 50/60 Hz |
| Safety | UL 1950 (UL), CSA C22.2 No.950 (C-UL) CE Marketing, TUV-GS (EN60950) |
| Power management | EPA, TCO'03 |
| Certification | MPR-II, TCO'03, DPMS, VESA DDC 1/2B, FCC-B, DOC-B, EN55022-B, EN61000-3-2,-3-3 EN55024 (IEC6100-4-2,-4-3,-4-4,-4-5, -4-6,-4-8,-4,11) |
| Display resolution at frequency | 1024x768 @ 60/70/75Hz; 800x600 @ 56/60/72/75Hz |
