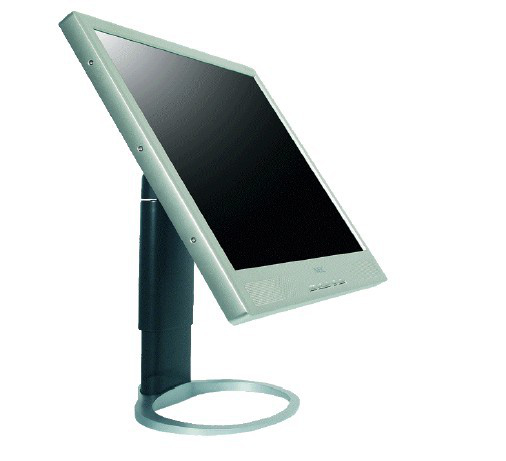

NEC LH17m 17" LCD Display

LH17m 17" LCD Display

Model LH17m 17" LCD DisplayPart no. NCL-1716-PH-B0

35 specifications Checked today

Display43.2 cm (17")
Resolution1024 x 768 pixels
VGA (D-Sub) ports quantity1
Cable lock slotYes
Power consumption (typical)48 W
Operating temperature (T-T)5 - 40 °C

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1024 x 768 pixels
VGA (D-Sub) ports quantity: 1
Cable lock slot: Yes
Power consumption (typical): 48 W
Operating temperature (T-T): 5 - 40 °C

Brand: NEC
Category: Monitor
Model: LH17m 17" LCD Display
Part number: NCL-1716-PH-B0
Also known as: NEC LH17m 17" LCD Display computer monitor 43.2 cm (17") 1024 x 768 pixels

Specifications

35 specifications in 8 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1024 x 768 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	500:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.264
Horizontal scan range	30 - 80 kHz
Vertical scan range	60 - 75 Hz

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1

Ergonomics

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Adjustable height (max)	13 cm
Pivot	Yes
Swivel angle range	-40 - 40°
Ergonomics	MPR-II, TCO 03, ISO 13406-2, Energy Star
Cable length	1.8 m

Power

Specification	Value
Power consumption (typical)	48 W
Power consumption (standby)	3 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Operating altitude	0 - 3000 m

Weight & dimensions

Specification	Value
Width (without stand)	377 mm
Depth (without stand)	200 mm
Height (without stand)	380 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	435 x 250 x 455 mm

Other features

Specification	Value
Display viewable area (HxV)	337.9 x 270.3 mm
Power requirements	100-240V
Safety	UL 1950 (UL), CSA C22.2 No.950 (C-UL) CE Marketing, TUV-GS (EN60950)
Power management	EPA, TCO'03
Certification	MPR-II, TCO'03, DPMS, VESA DDC 1/2B, FCC-B, DOC-B, EN55022-B, EN61000-3-2,-3-3 EN55024 (IEC6100-4-2,-4-3,-4-4,-4-5, -4-6,-4-8,-4,11)
Display resolution at frequency	1024 x 768 @ 60/70/75Hz; 800 x 600 @ 56/60/72/75Hz
