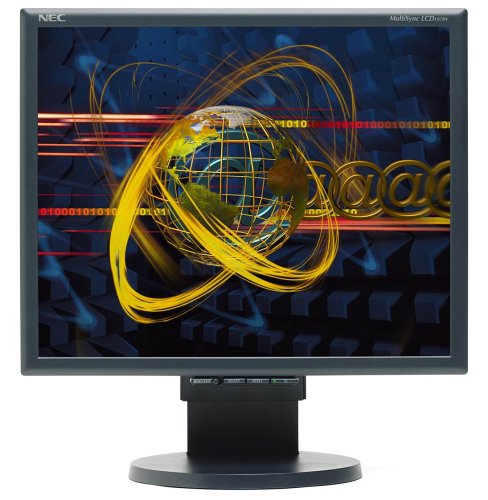

LCD1970V black
Model LCD1970V blackPart no. 60001345
30 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ColourBlack
- I/O ports1 x mini D-sub 15 pin
- Panel mounting interface100 x 100 mm
- Power consumption (typical)36 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- I/O ports
- 1 x mini D-sub 15 pin
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 36 W
- Brand
- NEC
- Category
- Monitor
- Model
- LCD1970V black
- Part number
- 60001345
- Also known as
- NEC LCD1970V black computer monitor 48.3 cm (19") 1280 x 1024 pixels
Specifications
30 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 16 ms |
| Contrast ratio (typical) | 450:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.294 |
| Horizontal scan range | 31.5 - 81.1 kHz |
| Vertical scan range | 56 - 75 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x mini D-sub 15 pin |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Swivel angle range | 170 - 170° |
| Tilt angle range | -5 - 30° |
| Plug and Play | Yes |
| Ergonomics | CE; GEEA Energy Label; Energy Star; FCC Class B; TÜV ERGONOMIE; |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 36 W |
| Power consumption (standby) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 30 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 412.5 mm |
| Depth (without stand) | 386.5 mm |
| Height (without stand) | 220 mm |
| Weight (without stand) | 7 kg |
| Bezel width (side) | 1.71 cm |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-120 V/220-240 V; 1.2 A/0.6 A; |
| Safety | ISO 13406-2 (Pixel Failure Class II);PCT Gost; TCO03; UL/C-UL or CSA; MPR II/ MPR III |
| Bundled hardware | Power Cable; Signal Cable VGA-VGA; CD-ROM |
