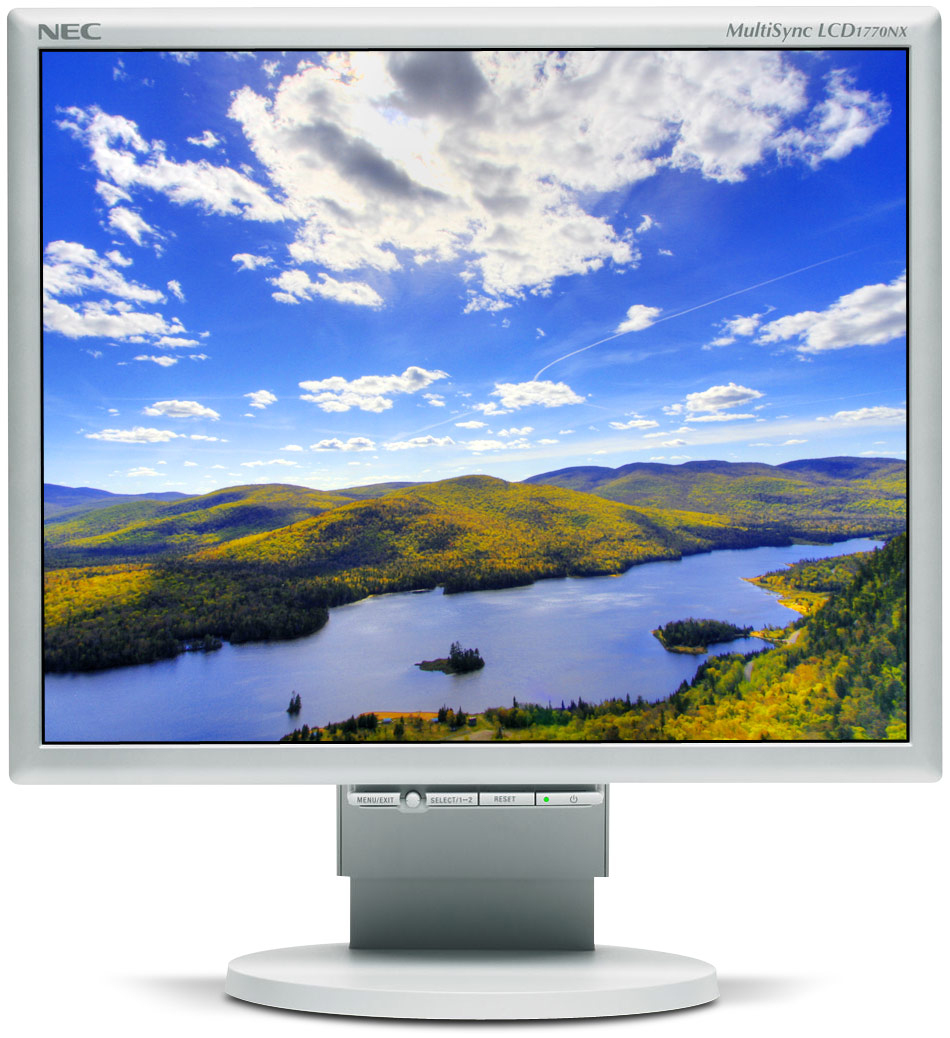

LCD1770NX computer monitor
43.2 cm (17") 1280 x 1024 pixels
Model LCD1770NXPart no. CS_60001633_MEDTRONIC
38 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Built-in speaker(s)No
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)36 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Built-in speaker(s)
- No
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 36 W
- Brand
- NEC
- Category
- Monitor
- Model
- LCD1770NX
- Part number
- CS_60001633_MEDTRONIC
- Also known as
- NEC LCD1770NX computer monitor 43.2 cm (17") 1280 x 1024 pixels
Specifications
38 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.5 - 81 kHz |
| Vertical scan range | 56 - 75 Hz |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 11 cm |
| Swivel angle range | -170 - 170° |
| Tilt angle range | -5 - 30° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 36 W |
| Power consumption (PowerSave) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Relative humidity | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 367 mm |
| Depth (without stand) | 198 mm |
| Height (without stand) | 362.5 mm |
| Weight (without stand) | 6.1 kg |
| Bezel width (side) | 1.36 cm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Power requirements | 100-120 V/220-240 V; 0.7 A/0.35 A, internal power supply |
| Compliance industry standards | VESA DDC/CI; VESA DDC2B; EDID Standard |
| Certification | CE; TCO 03; TÜV Ergonomics; TÜV GS; GEEA/Energy Label; Energy Star; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC; ISO 13406-2 (pixel failure class II); MPR II/ MPR III; RoHS |
| Bundled hardware | Option: MultiSync Soundbar 70 |
