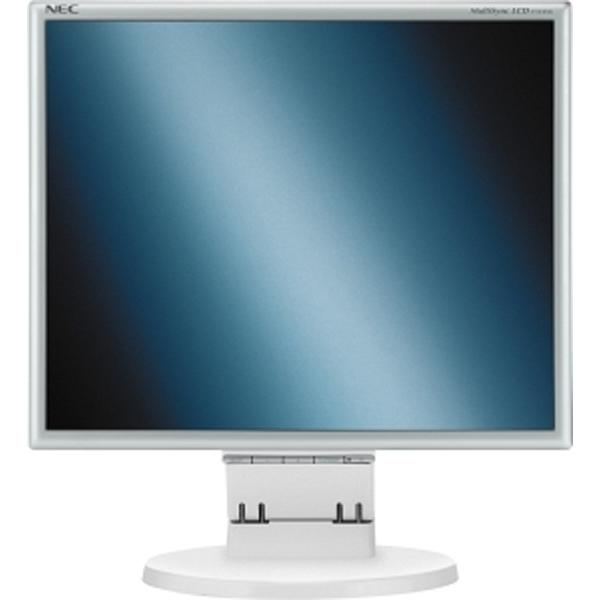

LCD175VXM+ computer monitor
43.2 cm (17") 1280 x 1024 pixels
Model LCD175VXM+Part no. MCS175VXM+BLK
38 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- RMS rated power1 W
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)34 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- RMS rated power
- 1 W
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 34 W
- Brand
- NEC
- Category
- Monitor
- Model
- LCD175VXM+
- Part numbers
- MCS175VXM+BLK, 60001748?DELL
- Also known as
- NEC LCD175VXM+ computer monitor 43.2 cm (17") 1280 x 1024 pixels
Specifications
38 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.5 - 81.1 kHz |
| Vertical scan range | 55 - 76 Hz |
| Viewable size diagonal | 43.2 cm |
Multimedia
| Specification | Value |
|---|---|
| RMS rated power | 1 W |
| Built-in camera | No |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Audio input | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 5 cm |
| Tilt angle range | -5 - 30° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 34 W |
| Power consumption (PowerSave) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Relative humidity | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 368 mm |
| Depth (without stand) | 230 mm |
| Height (without stand) | 358.5 mm |
| Bezel width (side) | 1.42 cm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Power requirements | 100-120 V/220-240 V; 0.6 A/0.4 A, internal power supply |
| Special features | Auto Adjust; Brightness; Colour Temperature Control; Contrast; Fine Adjust (analog); Language Select; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; Volume |
| Compliance industry standards | VESA DDC/CI; DDC2B/2Bi; EDID Standard |
| Certification | CE; TCO 03; TÜV Ergonomics; TÜV GS; Energy Star; FCC Class B; PCT/Gost; UL/C-UL or CSA; ISO 13406-2 (pixel failure class II); MPR II/ MPR III; RoHS |
