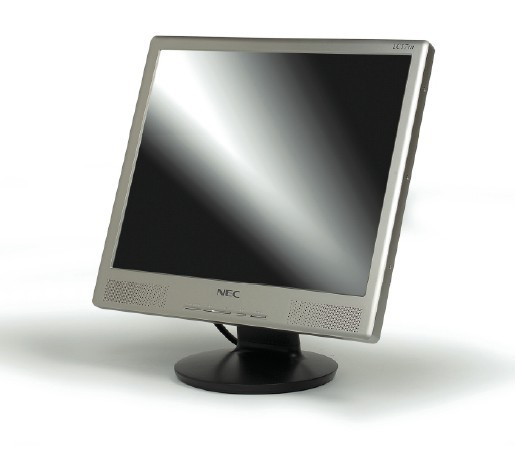

NEC LC17m 17" LCD Display

NEC LC17m 17" LCD Display

Model LC17m 17" LCD DisplayPart no. NCL-1716-P2-B0

39 specifications Checked 3 days ago
  • Display43.2 cm (17")
  • Resolution1280 x 1024 pixels
  • RMS rated power2 W
  • USB Type-A downstream ports quantity0
  • ErgonomicsMPR-II, TCO'03, ISO 13406-2
  • Power consumption (typical)48 W
See all specifications

Overview

Display
43.2 cm (17")
Resolution
1280 x 1024 pixels
RMS rated power
2 W
USB Type-A downstream ports quantity
0
Ergonomics
MPR-II, TCO'03, ISO 13406-2
Power consumption (typical)
48 W
Brand
NEC
Category
Monitor
Model
LC17m 17" LCD Display
Part numbers
NCL-1716-P2-B0, NCL-1716-P3-B0, NCL-1717-P0-B0
Also known as
NEC LC17m 17" LCD Display computer monitor 43.2 cm (17") 1280 x 1024 pixels

Specifications

39 specifications in 10 groups

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
TouchscreenNo
Display brightness (typical)250 cd/m²
Response time16 ms
Contrast ratio (typical)450:1
Viewing angle, horizontal160°
Viewing angle, vertical160°
Display number of colours16.78 million colours
Pixel pitch0.264
Horizontal scan range31 - 80 kHz
Vertical scan range56 - 75 Hz

Multimedia

RMS rated power2 W

Ports & interfaces

USB Type-A downstream ports quantity0
VGA (D-Sub) ports quantity1
DVI-D ports quantity0
DVI-I ports quantity0
Audio inputYes
Audio outputNo
Microphone inNo

Ergonomics

ErgonomicsMPR-II, TCO'03, ISO 13406-2
Cable length1.8 m

Power

Power consumption (typical)48 W
Power consumption (standby)3 W

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)20 - 85%
Operating altitude0 - 3000 m

Weight & dimensions

Width (with stand)376 mm
Depth (with stand)190 mm
Height (with stand)390 mm
Weight (with stand)4.2 kg

Packaging data

Package weight5.4 kg

Sustainability

Sustainability certificatesENERGY STAR

Other features

Display viewable area (HxV)337.92 x 270.34 mm
Power requirements100-240V
SafetyUL 1950 (UL), CSA C22.2 No.950, (C-UL) CE, TUV-GS (EN60950)
Power managementEPA, TCO'03
CertificationMPR-II, TCO'03, DPMS, VESA DDC 1/2B, FCC-B, DOC-B, EN55022-B, EN61000-3-2,-3-3 EN55024 (IEC6100-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4,11)
Display resolution at frequency1280 x 1024 @ 60/75Hz; 1024 x 768 @ 60/70/75Hz; 800 x 600 @ 60/75Hz; 640 x 480 @ 60/75Hz; 720 x 400 @ 70Hz
