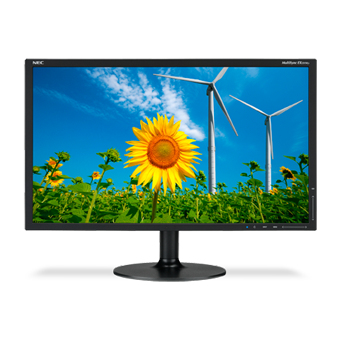

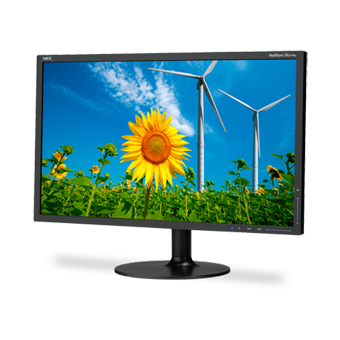

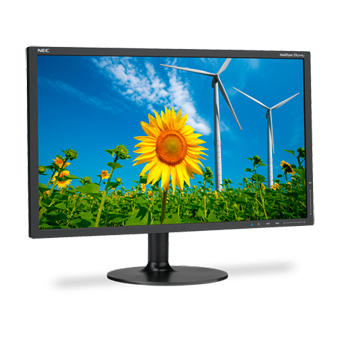

EX231WP computer monitor
58.4 cm (23") 1920 x 1080 pixels Full HD Black
Model EX231WPPart no. EX231WP-BKEAN 805736037760
73 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ColourBlack
- Built-in speaker(s)No
- USB Type-A downstream ports quantity0
- VESA mountingYes
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB Type-A downstream ports quantity
- 0
- VESA mounting
- Yes
- Brand
- NEC
- Category
- Monitor
- Model
- EX231WP
- Part number
- EX231WP-BK
- EAN / UPC
- 805736037760
- Also known as
- NEC EX231WP computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD Black
Specifications
73 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | Full HD |
| Display brightness (typical) | 250 cd/m² |
| Response time | 25 ms |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Digital horizontal frequency | 31.5 - 83 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Composite sync | Yes |
| Video input impedance | 75 Ω |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| PC Audio in | No |
| HDCP | Yes |
| Composite video in | 0 |
| Composite video out | 0 |
| SCART ports quantity | 0 |
| PC Audio out | No |
| Digital audio optical out | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| RS-232 ports | 0 |
| S-Video inputs quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |

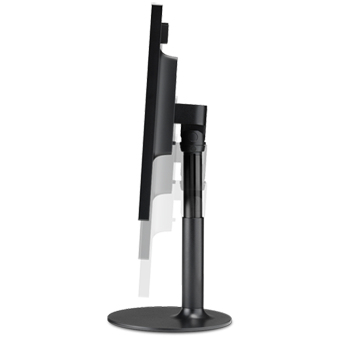

| Adjustable height (max) | 11 cm |

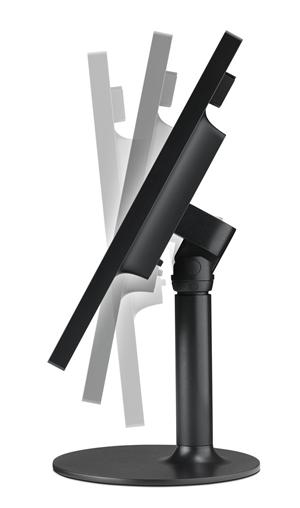

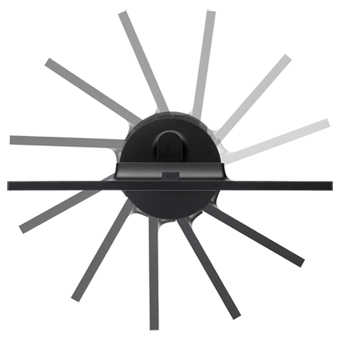

| Pivot | Yes |

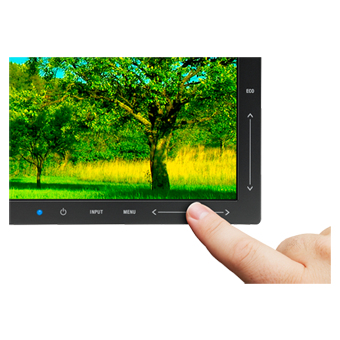

| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27 W |
| Power consumption (PowerSave) | 0.37 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 540.2 mm |
| Depth (with stand) | 215 mm |
| Height (with stand) | 511.3 mm |
| Weight (with stand) | 4.2 kg |
| Width (without stand) | 540.2 mm |
| Depth (without stand) | 47.7 mm |
| Height (without stand) | 318.3 mm |
| Weight (without stand) | 2.8 kg |
| Bezel width (side) | 1.46 cm |
| Bezel width (top) | 1.64 cm |
| Bezel width (bottom) | 1.64 cm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DVI, USB, VGA |
| Manual | Yes |
| Bundled software | NaViSet |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Certification | Energy Star 5.0 TCO 5.2 EPEAT Gold RoHS |
| Supplied AC adapter type | IPM |
