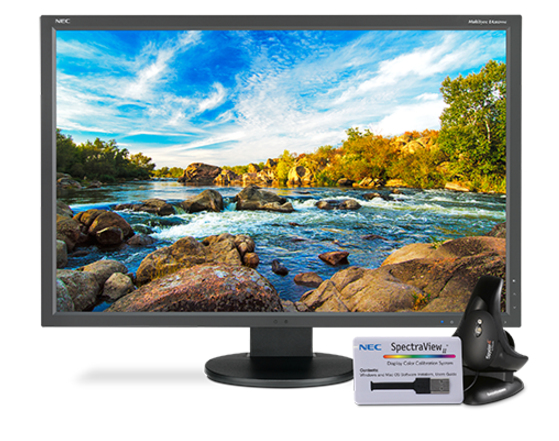

NEC SpectraView EA305WMI-BK-SV computer monitor

75.7 cm (29.8") 2560 x 1600 pixels UltraWide Quad HD LED Black

Model EA305WMI-BK-SVEAN 805736061246

84 specifications Checked 3 days ago

Overview

Brand: NEC
Category: Monitor
Model: EA305WMI-BK-SV
Part number: EA305WMI-BK-SV
EAN / UPC: 805736061246
Also known as: NEC SpectraView EA305WMI-BK-SV computer monitor 75.7 cm (29.8") 2560 x 1600 pixels UltraWide Quad HD LED Black

84 specifications in 12 groups

Specification	Value
Display diagonal	75.7 cm (29.8")
Display resolution	2560 x 1600 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	UltraWide Quad HD
Panel type	AH-IPS
Backlight type	RGB LED
Display brightness (typical)	350 cd/m²
Response time	6 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.251 x 0.251 mm
Pixel density	101 ppi
Horizontal scan range	31.5 - 83 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	64.1 cm
Viewable size, vertical	40.1 cm
Digital horizontal frequency	31.5 - 98.7 kHz
Sync-on-green (SOG)	Yes
DDC/CI	Yes
3D	No
Composite sync	Yes

Specification	Value
Product colour	Black
Feet colour	Black

Specification	Value
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-I ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Audio input	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	-10 - 60%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Specification	Value
Cables included	AC, DisplayPort, USB
Manual	Yes

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Specification	Value
Thin client installed	No
