MultiSync EA242F computer monitor
60.5 cm (23.8") 1920 x 1080 pixels Full HD LED White
Model EA242FPart no. 60005246EAN 5028695120433
71 specifications Checked today
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- Energy classD
- ColourWhite
- Flicker-free technologyYes
- Operating temperature (T-T)5 - 35 °C
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Energy class
- D
- Colour
- White
- Flicker-free technology
- Yes
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- NEC
- Category
- Monitor
- Model
- EA242F
- Part numbers
- 60005246, 60005032, EA242F
- EAN / UPC
- 5028695120433, 5028695120426
- Also known as
- NEC MultiSync EA242F computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED White
Specifications
71 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TFT/IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Digital horizontal frequency | 31.5 - 83 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 60.47 cm |
| DDC/CI | Yes |
Performance
| Specification | Value |
|---|---|
| Flicker-free technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |

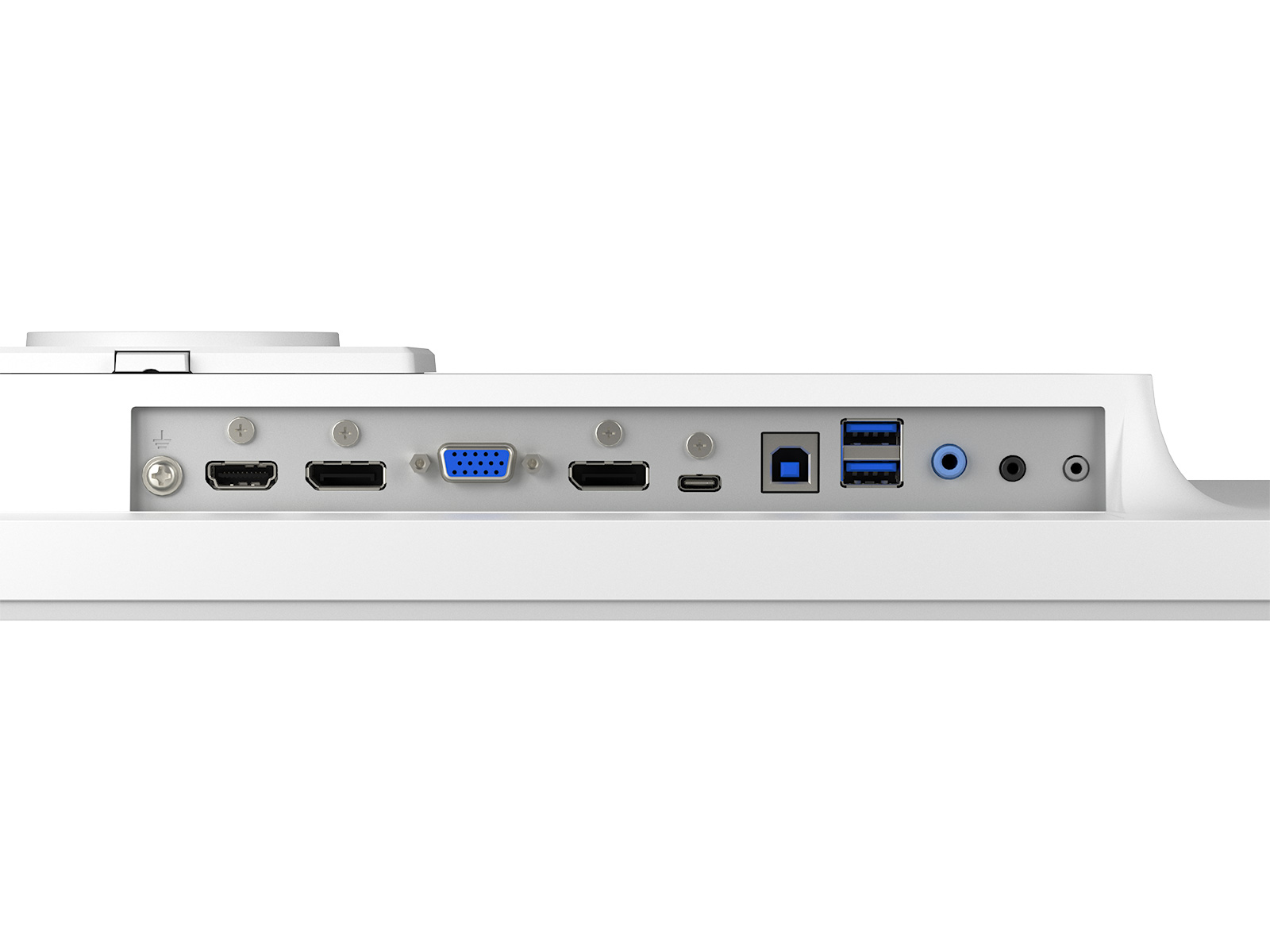

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Swivel angle range | -170 - 170° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | D |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Power consumption (typical) | 21 W |
| Power consumption (PowerSave) | 0.3 W |
| AC input voltage | 100 - 240 V |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 615.4 mm |
| Depth (with stand) | 250 mm |
| Height (with stand) | 319.1 mm |
| Weight (with stand) | 7 kg |
| Bezel width (side) | 0.8 mm |
| Bezel width (top) | 0.8 mm |
| Bezel width (bottom) | 1.58 cm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, USB |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Energy efficiency class (legacy scale) | A+ |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
