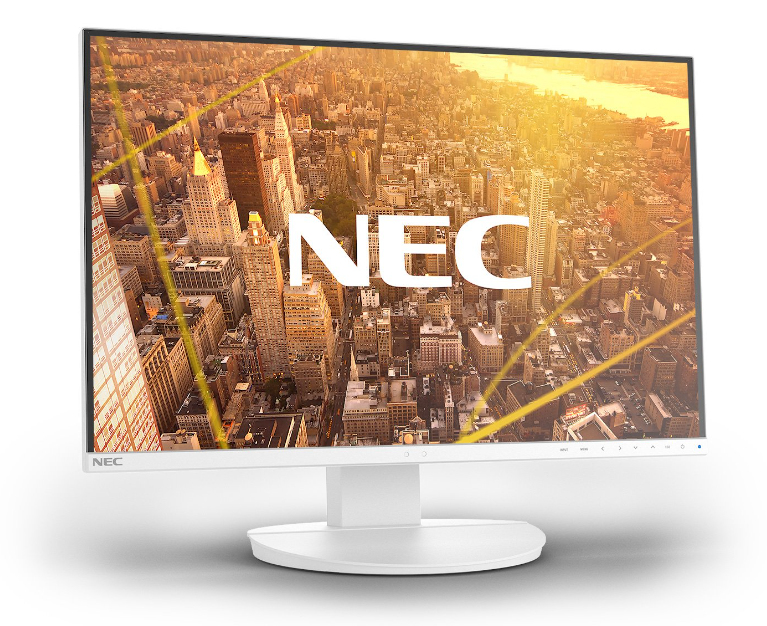

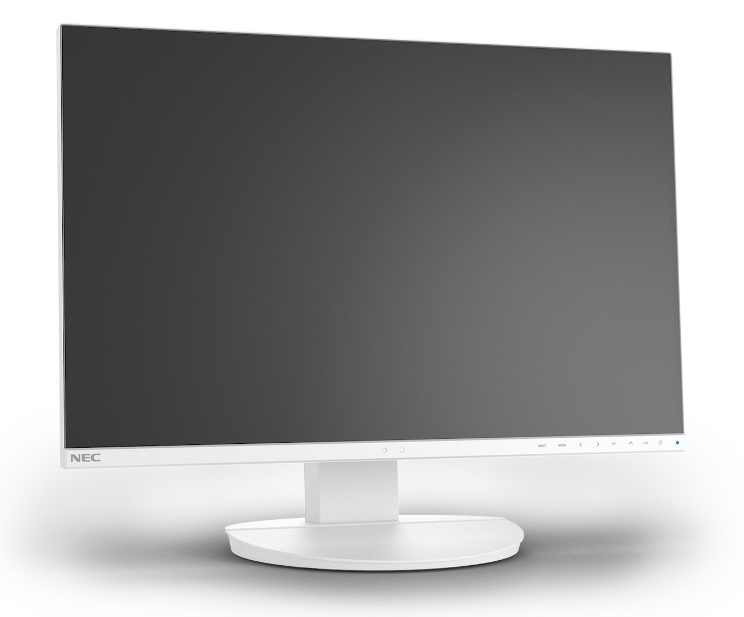

MultiSync EA231WU computer monitor
57.1 cm (22.5") 1920 x 1200 pixels WUXGA LED White
Model EA231WUPart no. 60004782EAN 5028695117044
72 specifications Checked today
- Display57.1 cm (22.5")
- Resolution1920 x 1200 pixels
- Energy classD
- ColourWhite
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
Overview
- Display
- 57.1 cm (22.5")
- Resolution
- 1920 x 1200 pixels
- Energy class
- D
- Colour
- White
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Brand
- NEC
- Category
- Monitor
- Model
- EA231WU
- Part number
- 60004782
- EAN / UPC
- 5028695117044
- Also known as
- NEC MultiSync EA231WU computer monitor 57.1 cm (22.5") 1920 x 1200 pixels WUXGA LED White
Specifications
72 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 57.1 cm (22.5") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IGZO |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 640, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Response time (fast) | 6 ms |
| Pixel pitch | 0.25 x 0.25 mm |
| Horizontal scan range | 31.5 - 70 kHz |
| Vertical scan range | 50 - 60 Hz |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Swivel angle range | -170 - 170° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Power consumption (typical) | 13 W |
| Power consumption (PowerSave) | 0.31 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.9 A |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 498.9 mm |
| Depth (with stand) | 250 mm |
| Height (with stand) | 337.2 mm |
| Weight (with stand) | 8.3 kg |
| Width (without stand) | 498.9 mm |
| Depth (without stand) | 45.6 mm |
| Height (without stand) | 319.7 mm |
| Weight (without stand) | 5.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, DVI, DisplayPort, VGA |
| Quick start guide | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Certification | CE; EAC; ErP; ISO 9241-307 (pixel failure class I); PSB; RoHS; TCO 7.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
