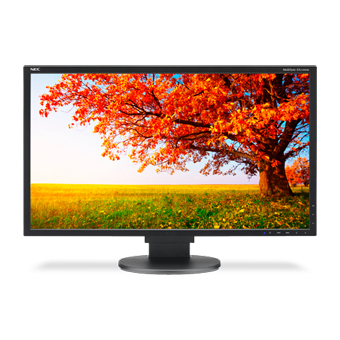

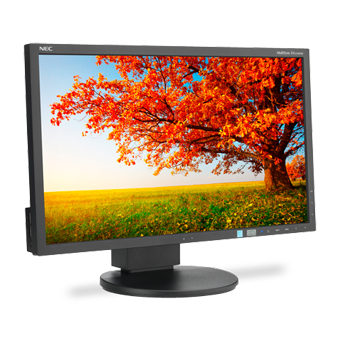

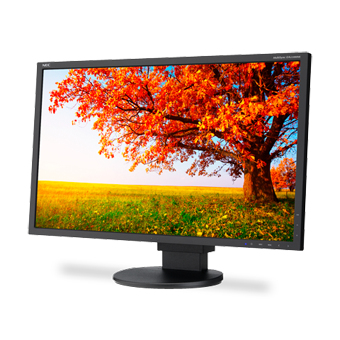

EA224WMI-BK computer monitor
55.9 cm (22") 1920 x 1080 pixels Full HD LED Black
Model EA224WMI-BKEAN 606329401995
90 specifications Checked today
- Display55.9 cm (22")
- Resolution1920 x 1080 pixels
- ColourBlack
- Built-in speaker(s)Yes
- USB hub version2.0
- Wi-FiNo
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- USB hub version
- 2.0
- Wi-Fi
- No
- Brand
- NEC
- Category
- Monitor
- Model
- EA224WMI-BK
- Part number
- EA224WMI-BK
- EAN / UPC
- 606329401995, 805736041019, 8057360410194
- Also known as
- NEC EA224WMI-BK computer monitor 55.9 cm (22") 1920 x 1080 pixels Full HD LED Black
Specifications
90 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Display brightness (typical) | 250 cd/m² |
| Response time | 14 ms |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.25 x 0.25 mm |
| Horizontal scan range | 31.5 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

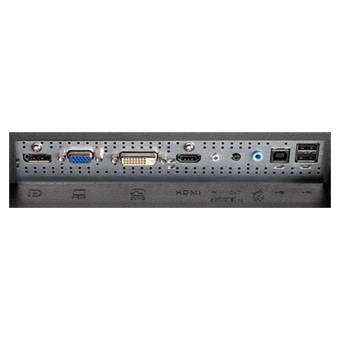

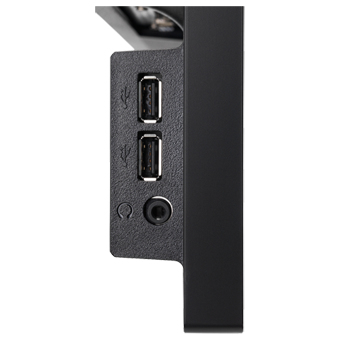

Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Composite video in | 0 |
| Composite video out | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 0 |
| Digital audio optical out | 0 |
| Common interface (CI) | No |
| Common interface Plus (CI+) | No |
| Component video (YPbPr/YCbCr) in | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Firewire (IEEE 1394) ports | 0 |
| RS-232 ports | 0 |
| RS-485 ports | 0 |
| S-Video inputs quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |

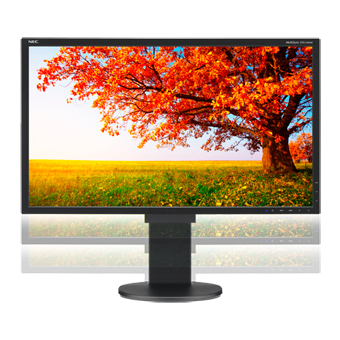

| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |

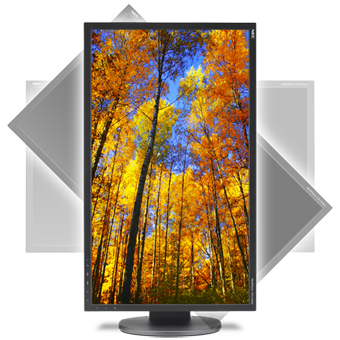

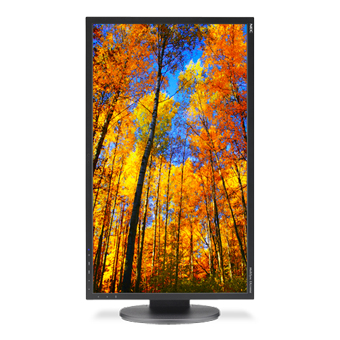

| Pivot | Yes |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 0.43 W |
| Energy efficiency scale | A+++ to D |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 2000 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 507.4 mm |
| Depth (with stand) | 218 mm |
| Height (with stand) | 500.2 mm |
| Weight (with stand) | 6 kg |
| Width (without stand) | 507.4 mm |
| Depth (without stand) | 60.5 mm |
| Height (without stand) | 301.1 mm |
| Weight (without stand) | 3.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DVI, USB, VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Swivel webcam | No |
| TV tuner integrated | No |
| Placement supported | Horizontal/Vertical |
| Ethernet LAN (RJ-45) ports | 0 |
| Certification | TCO 5.2 RoHS |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
