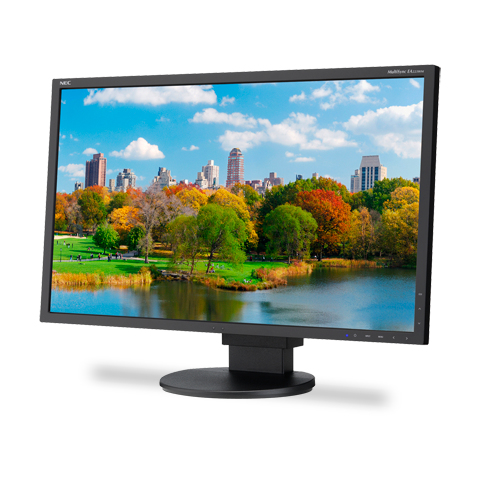

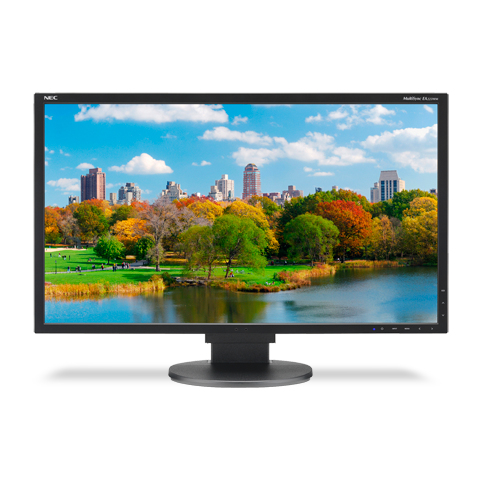

NEC EA223WM-BK computer monitor

NEC EA223WM-BK computer monitor

55.9 cm (22") 1680 x 1050 pixels HD LED Black

Model EA223WM-BKEAN 803982751331

72 specifications Checked 3 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)Yes
USB hub version2.0
Power consumption (typical)25 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): Yes
USB hub version: 2.0
Power consumption (typical): 25 W

Brand: NEC
Category: Monitor
Model: EA223WM-BK
Part number: EA223WM-BK
EAN / UPC: 803982751331, 805736039757, 8057360397570
Also known as: NEC EA223WM-BK computer monitor 55.9 cm (22") 1680 x 1050 pixels HD LED Black

Specifications

72 specifications in 13 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	HD
Panel type	TN+Film
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	25000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Digital horizontal frequency	31.5 - 82.3 kHz
Digital vertical frequency	56 - 75 Hz
Sync-on-green (SOG)	Yes
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Built-in camera	No

Design

Specification	Value
Product colour	Black

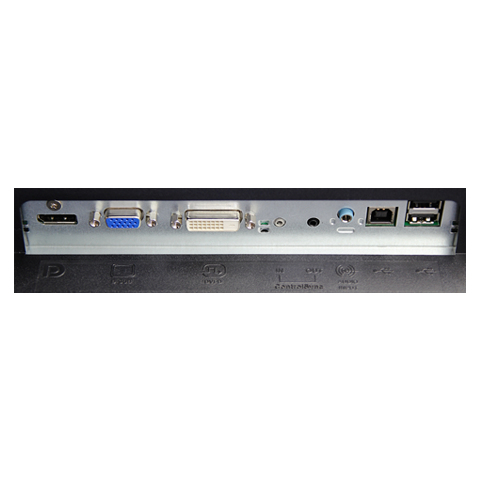

Ports & interfaces

Specification	Value
USB hub version	2.0

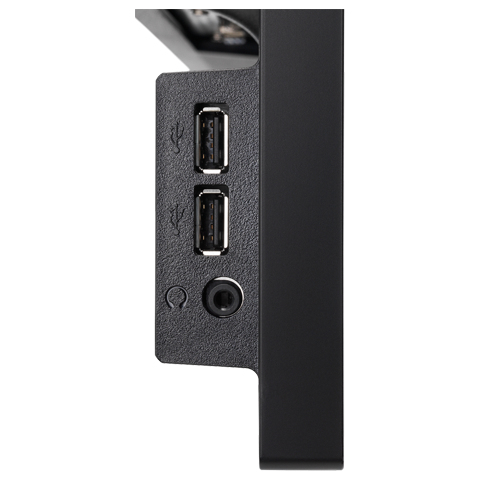

USB Type-A downstream ports quantity	5
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Headphone connectivity	3.5 mm
PC Audio in	Yes
HDCP	Yes
AC (power) in	Yes
PC Audio out	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No

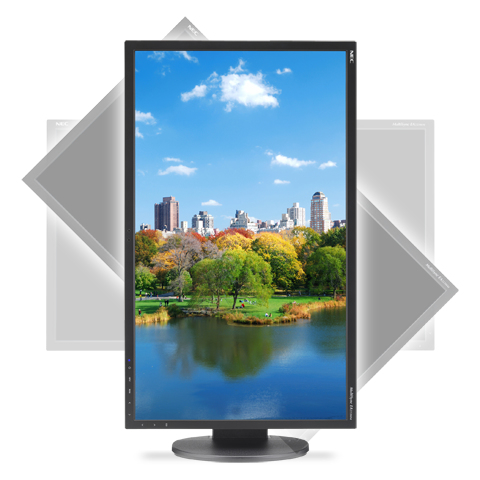

Pivot	Yes

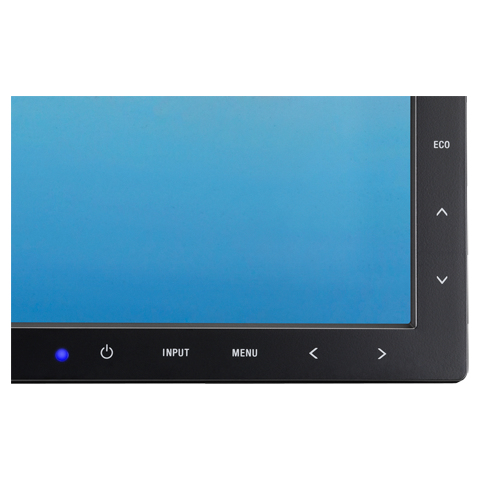

On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	25 W
Power consumption (PowerSave)	0.4 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	503.5 mm
Depth (with stand)	218 mm
Height (with stand)	514 mm
Weight (with stand)	5.6 kg
Width (without stand)	503.5 mm
Depth (without stand)	60.5 mm
Height (without stand)	329.7 mm
Weight (without stand)	3.3 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, USB, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Placement supported	Horizontal/Vertical
Screen saving functions	Yes
Sync input impedance	75 Ω
Certification	TCO 5.2 EPEAT Silver
Supplied AC adapter type	LED, 1680 x 1050

Thin Client

Specification	Value
Thin client installed	No
