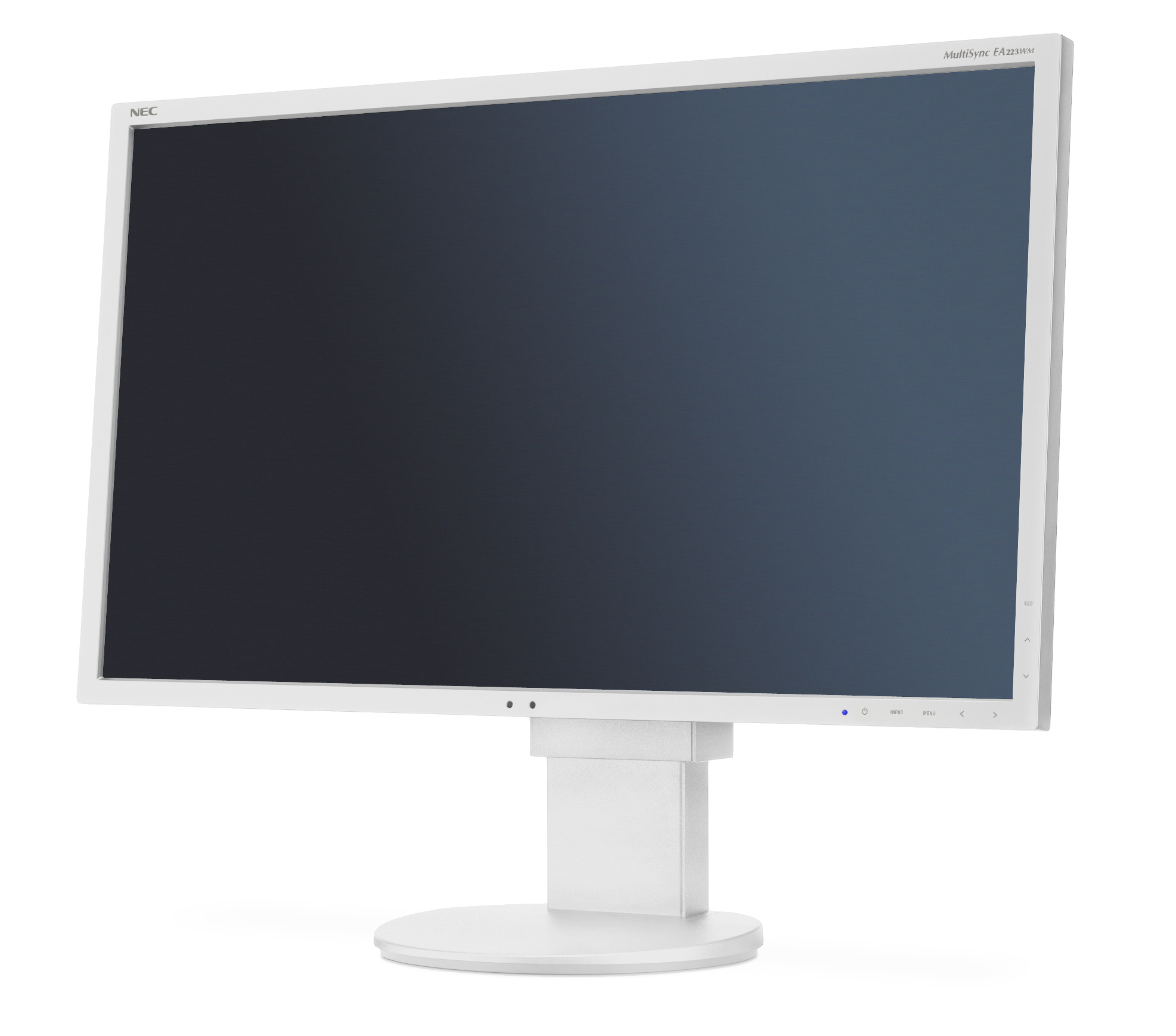

NEC MultiSync EA223WM computer monitor

55.9 cm (22") 1680 x 1050 pixels WSXGA+ LED White

Model EA223WMPart no. LCD-EA223WM-B3EAN 4541225007987

84 specifications Checked 3 days ago

Overview

Brand: NEC
Category: Monitor
Model: EA223WM
Part numbers: LCD-EA223WM-B3, 60003293, 60003294
EAN / UPC: 4541225007987, 4053162535831, 5028695108790, 4053162535848 +6 more
Also known as: NEC MultiSync EA223WM computer monitor 55.9 cm (22") 1680 x 1050 pixels WSXGA+ LED White

84 specifications in 14 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	WSXGA+
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	25000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Digital horizontal frequency	31.5 - 82.3 kHz
Digital vertical frequency	56 - 75 Hz
Colour gamut standard	sRGB
3D	No

Specification	Value
Windows operating systems supported	Yes

Specification	Value
Product colour	White

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	No
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
HDCP	Yes
AC (power) in	Yes

Specification	Value
Power consumption (typical)	12 W
Power consumption (max)	25 W
Power consumption (PowerSave)	0.5 W
Annual energy consumption	18 kWh

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Cables included	AC, DisplayPort, USB
Quick start guide	Yes

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
ECO mode	Yes
Energy efficiency class (legacy scale)	A
Light sensor	Yes
Power consumption (economy mode)	12 W
Certification	CE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Supplied AC adapter type	AC

Specification	Value
Thin client installed	No
