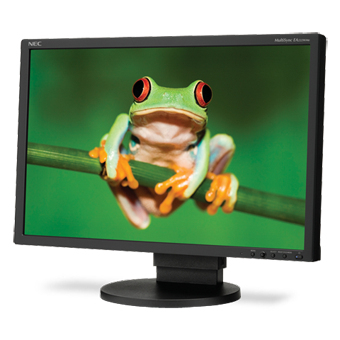

EA222WME computer monitor

55.9 cm (22") 1680 x 1050 pixels Black

Model EA222WMEPart no. EA222WME-BK

69 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)Yes
USB Type-A downstream ports quantity0
Ethernet LANNo

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): Yes
USB Type-A downstream ports quantity: 0
Ethernet LAN: No

Brand: NEC
Category: Monitor
Model: EA222WME
Part number: EA222WME-BK
Also known as: NEC EA222WME computer monitor 55.9 cm (22") 1680 x 1050 pixels Black

Specifications

69 specifications in 12 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	3000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.28 x 0.28 mm
Digital horizontal frequency	31.5 - 82.3 kHz
Digital vertical frequency	56 - 75 Hz
Sync-on-green (SOG)	Yes
3D	No
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Built-in camera	No

Design

Specification	Value
Product colour	Black

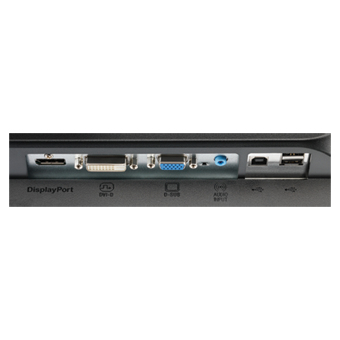

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
PC Audio in	No
HDCP	Yes
Composite video in	0
Composite video out	0
SCART ports quantity	0
PC Audio out	No
Component video (YPbPr/YCbCr) in	0
RS-232 ports	0
S-Video inputs quantity	0

Network

Specification	Value
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No

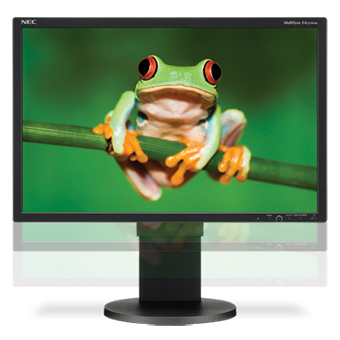

Adjustable height (max)	11 cm

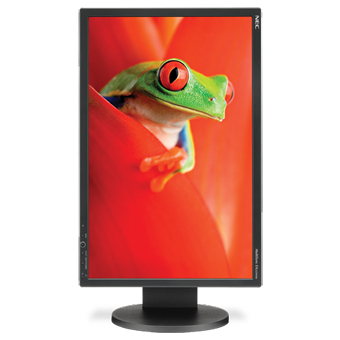

Pivot	Yes
On Screen Display (OSD)	Yes
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	23 W
Power consumption (PowerSave)	1 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 2000 m

Weight & dimensions

Specification	Value
Width (with stand)	507.8 mm
Depth (with stand)	220 mm
Height (with stand)	492 mm
Weight (with stand)	7 kg
Width (without stand)	507.8 mm
Depth (without stand)	71.8 mm
Height (without stand)	332.1 mm
Weight (without stand)	4.5 kg

Packaging content

Specification	Value
Cables included	DVI, USB, VGA
Manual	Yes
Bundled software	NaViSet

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Ethernet LAN (RJ-45) ports	0
Certification	Energy Star 5.0 TCO 5.0 EPEAT Gold RoHS
