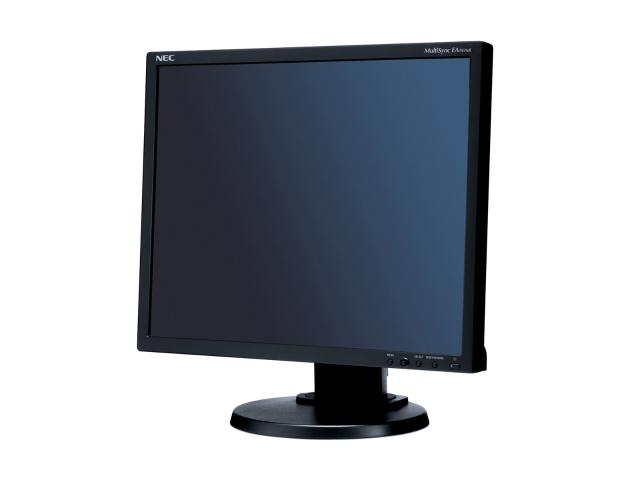

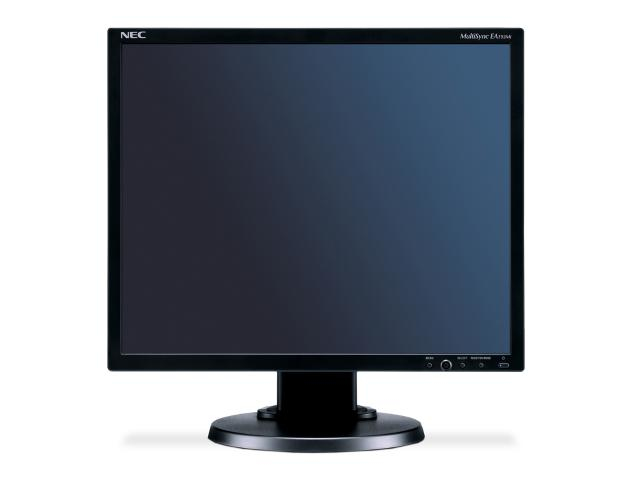

MultiSync EA193MI-BM computer monitor

48.3 cm (19") 1280 x 1024 pixels SXGA LED Black

Model EA193MI-BMPart no. LCD-EA193MI-BMEAN 4541225007734

71 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
Energy classD
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Energy class: D
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: NEC
Category: Monitor
Model: EA193MI-BM
Part number: LCD-EA193MI-BM
EAN / UPC: 4541225007734
Also known as: NEC MultiSync EA193MI-BM computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Black

Specifications

71 specifications in 12 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	4:3
Display technology	LED
Touchscreen	No
HD type	SXGA
Panel type	IPS
Backlight type	LED
Display brightness (typical)	250 cd/m²
Response time	6 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	25000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Horizontal scan range	31.5 - 81.1 kHz
Vertical scan range	56 - 76 Hz
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	1
RMS rated power	1 W
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Height adjustment	Yes
Adjustable height (max)	11 cm
Pivot	Yes
Swivelling	Yes
Tilt adjustment	Yes
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	10 kWh
Power consumption (standby)	0.29 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Current rating	0.45 A

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	408 mm
Depth (with stand)	213.9 mm
Height (with stand)	496.4 mm
Weight (with stand)	6 kg
Width (without stand)	408 mm
Depth (without stand)	65 mm
Height (without stand)	338 mm
Weight (without stand)	4 kg

Packaging data

Specification	Value
Package width	568 mm
Package depth	226 mm
Package height	395 mm
Package weight	7.7 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Certification	RoHS, TCO
Supplied AC adapter type	LED
