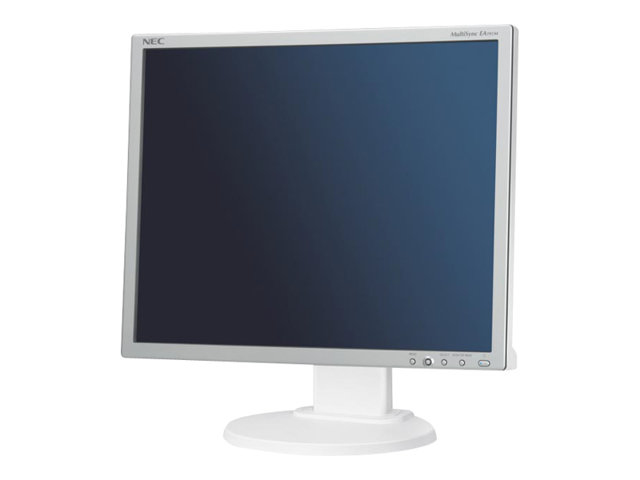

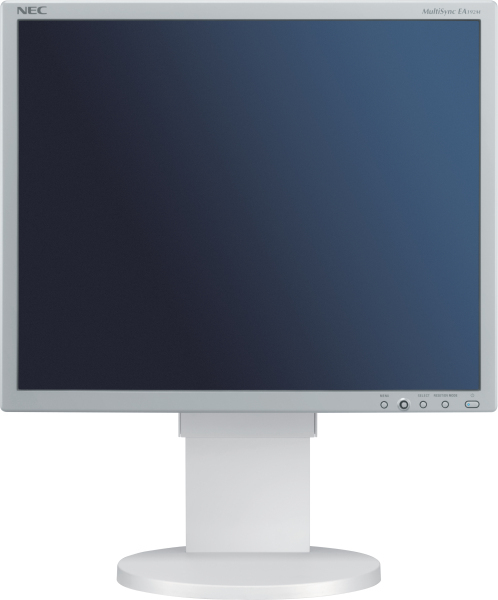

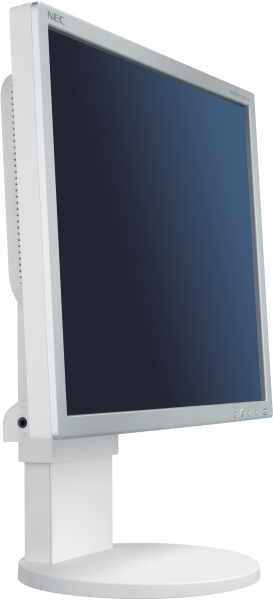

MultiSync EA192M computer monitor

48.3 cm (19") 1280 x 1024 pixels LED White

Model EA192MPart no. 60003065EAN 5028695108158

65 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
ColourWhite
Built-in speaker(s)Yes
USB Type-A downstream ports quantity0
Power consumption (typical)26 W

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Colour: White
Built-in speaker(s): Yes
USB Type-A downstream ports quantity: 0
Power consumption (typical): 26 W

Brand: NEC
Category: Monitor
Model: EA192M
Part numbers: 60003065, EA192M-BK
EAN / UPC: 5028695108158, 132017792934, 191120040608
Also known as: NEC MultiSync EA192M computer monitor 48.3 cm (19") 1280 x 1024 pixels LED White

Specifications

65 specifications in 12 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	25000:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.29 x 0.29 mm
Horizontal scan range	31.5 - 81.1 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Built-in camera	No

Design

Specification	Value
Product colour	White

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	1
Audio input	Yes
HDCP	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	11 cm
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	26 W
Power consumption (standby)	1 W
AC input voltage	100 - 240 V

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	408 mm
Depth (with stand)	386.4 mm
Height (with stand)	213.9 mm
Weight (with stand)	5.5 kg
Width (without stand)	408 mm
Depth (without stand)	65 mm
Height (without stand)	338 mm
Weight (without stand)	3.5 kg

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Certification	TCO, RoHS
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
