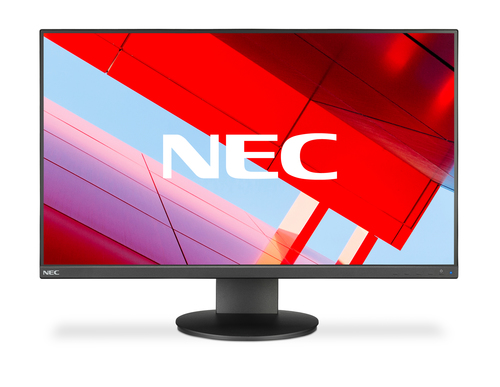

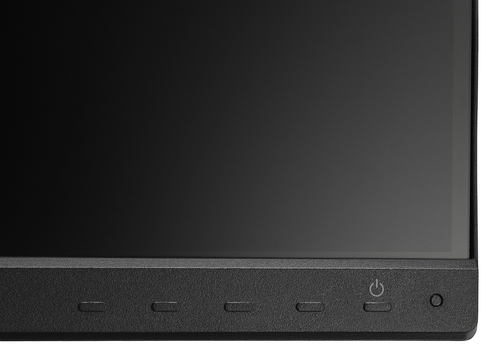

MultiSync E243F computer monitor

61 cm (24") 1920 x 1080 pixels Full HD LED Black

Model E243FPart no. 60005203EAN 5028695119802

94 specifications Checked today

Display61 cm (24")
Resolution1920 x 1080 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 61 cm (24")
Resolution: 1920 x 1080 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: NEC
Category: Monitor
Model: E243F
Part numbers: 60005203, 60005204, E243F
EAN / UPC: 5028695119802, 5028695119819
Also known as: NEC MultiSync E243F computer monitor 61 cm (24") 1920 x 1080 pixels Full HD LED Black

Specifications

94 specifications in 13 groups

Display

Specification	Value
Display diagonal	61 cm (24")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	TFT/IPS
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	6 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.275 x 0.275 mm
Horizontal scan range	31.5 - 83 kHz
Vertical scan range	50 - 75 Hz
Viewable size diagonal	60 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
USB Type-A downstream ports quantity	3
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery up to	65 W
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.2
DisplayPorts quantity	1
Audio input	No
Headphone out	Yes
Headphone outputs	1
HDCP	Yes
AC (power) in	Yes

Ergonomics

Specification	Value

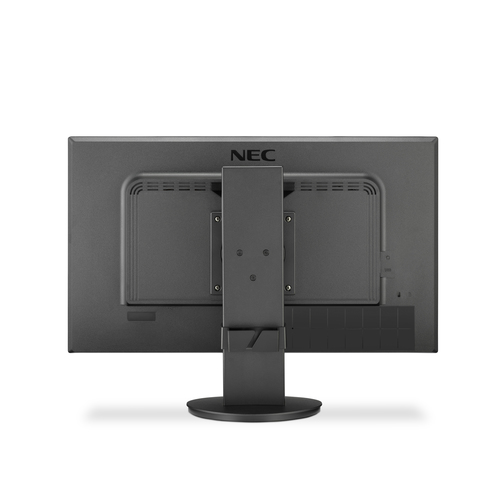

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington

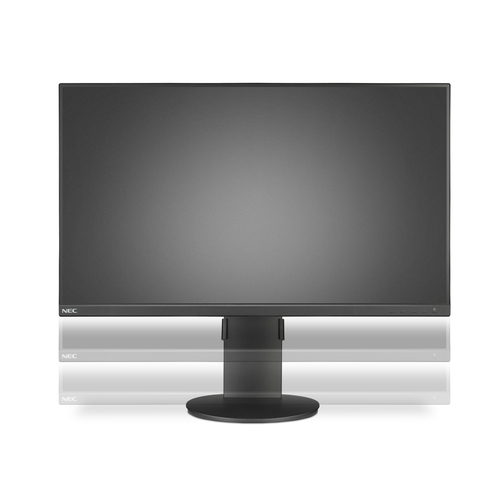

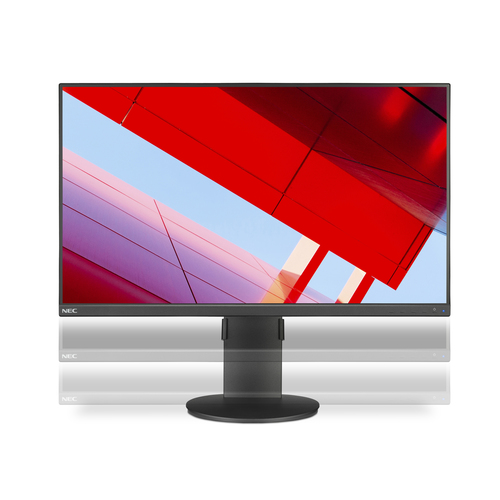

Height adjustment	Yes
Adjustable height (max)	13 cm

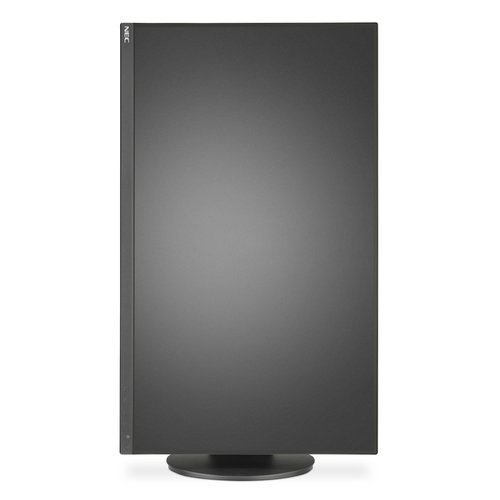

Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	0 - 340°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
Plug and Play	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	18 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.4 - 0.7 A
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	538.1 mm
Depth (with stand)	190 mm
Height (with stand)	332.6 mm
Weight (with stand)	5.5 kg
Width (without stand)	538.1 mm
Depth (without stand)	42.5 mm
Height (without stand)	320.2 mm
Weight (without stand)	3.5 kg

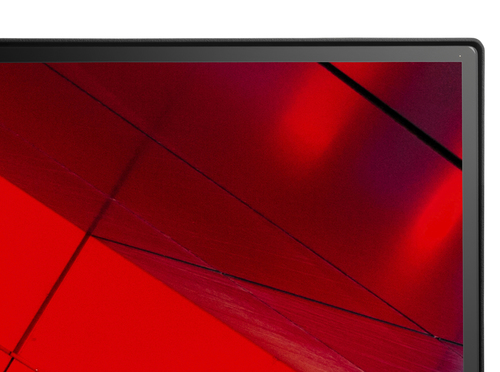

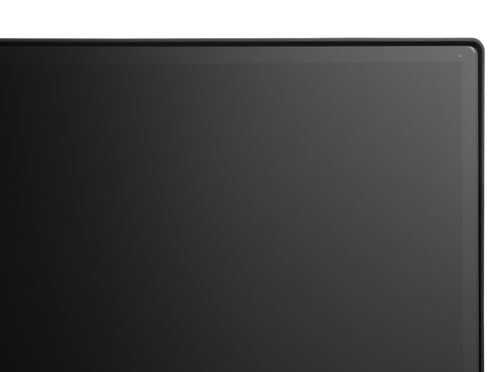

Bezel width (side)	1 mm
Bezel width (top)	1 mm
Bezel width (bottom)	1 mm

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, USB Type-C
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
Compliance certificates	RoHS
Certification	TÜV GS; WEEE

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
