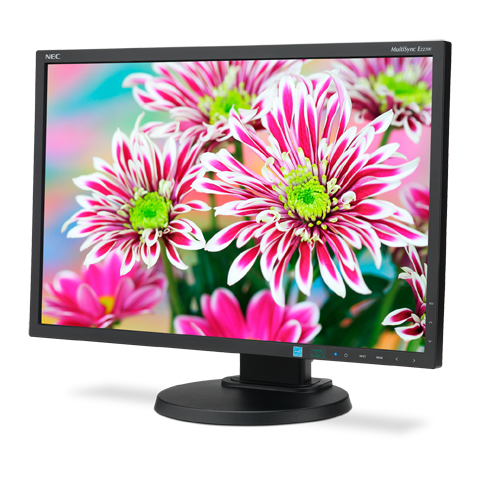

NEC E223W-BK computer monitor

E223W-BK computer monitor

55.9 cm (22") 1680 x 1050 pixels LED Black

Model E223W-BKEAN 163121155919

76 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)No
USB Type-A downstream ports quantity0
VESA mountingYes

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): No
USB Type-A downstream ports quantity: 0
VESA mounting: Yes

Brand: NEC
Category: Monitor
Model: E223W-BK
Part number: E223W-BK
EAN / UPC: 163121155919, 805736044546, 8057360445462
Also known as: NEC E223W-BK computer monitor 55.9 cm (22") 1680 x 1050 pixels LED Black

Specifications

76 specifications in 13 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
Panel type	TN+Film
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.28 x 0.28 mm
Digital horizontal frequency	31.5 - 82.3 kHz
Digital vertical frequency	56 - 75 Hz
Sync-on-green (SOG)	Yes
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Product colour	Black

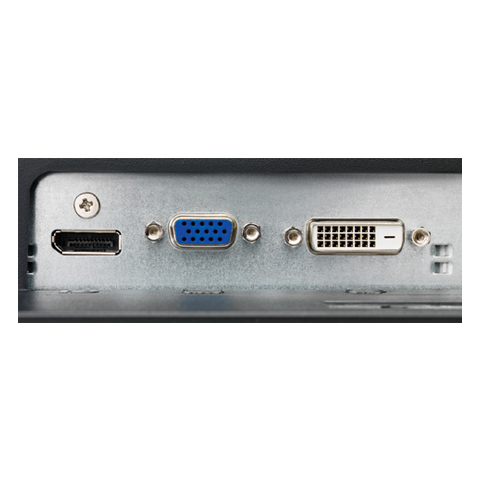

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
HDCP	Yes
AC (power) in	Yes
Composite video in	0
Common interface (CI)	Yes
Component video (YPbPr/YCbCr) in	0
Component video (YPbPr/YCbCr) out	0
S-Video inputs quantity	0
Card reader integrated	No
Compatible memory cards	Not supported

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No

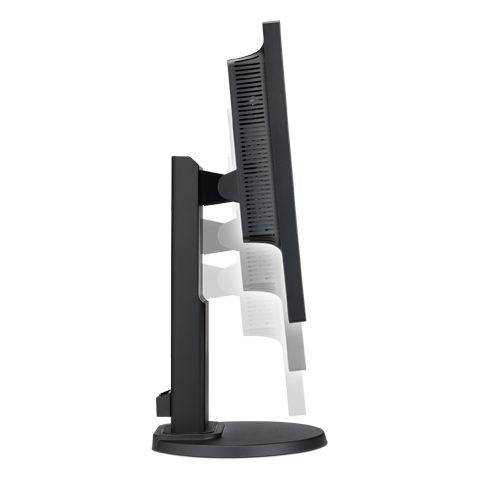

Height adjustment	Yes

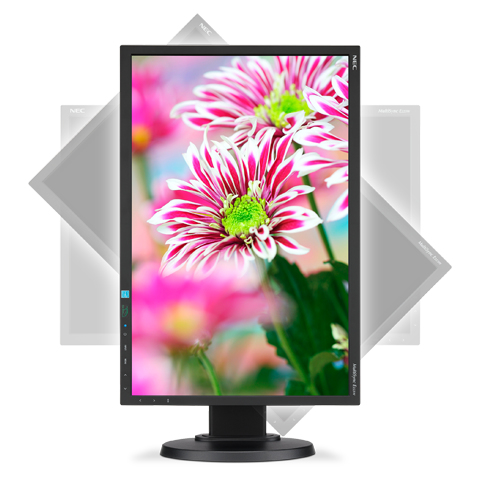

Pivot	Yes
Swivelling	Yes
Tilt adjustment	Yes

Power

Specification	Value
Power consumption (typical)	24 W
Power consumption (standby)	0.35 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 2000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	503.5 mm
Depth (with stand)	213.9 mm
Height (with stand)	493.3 mm
Weight (with stand)	4.9 kg
Width (without stand)	503.5 mm
Depth (without stand)	60.5 mm
Height (without stand)	329.7 mm
Weight (without stand)	3.2 kg

Packaging content

Specification	Value
Cables included	AC, DVI, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Ethernet LAN (RJ-45) ports	0
Certification	TCO, RoHS
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
