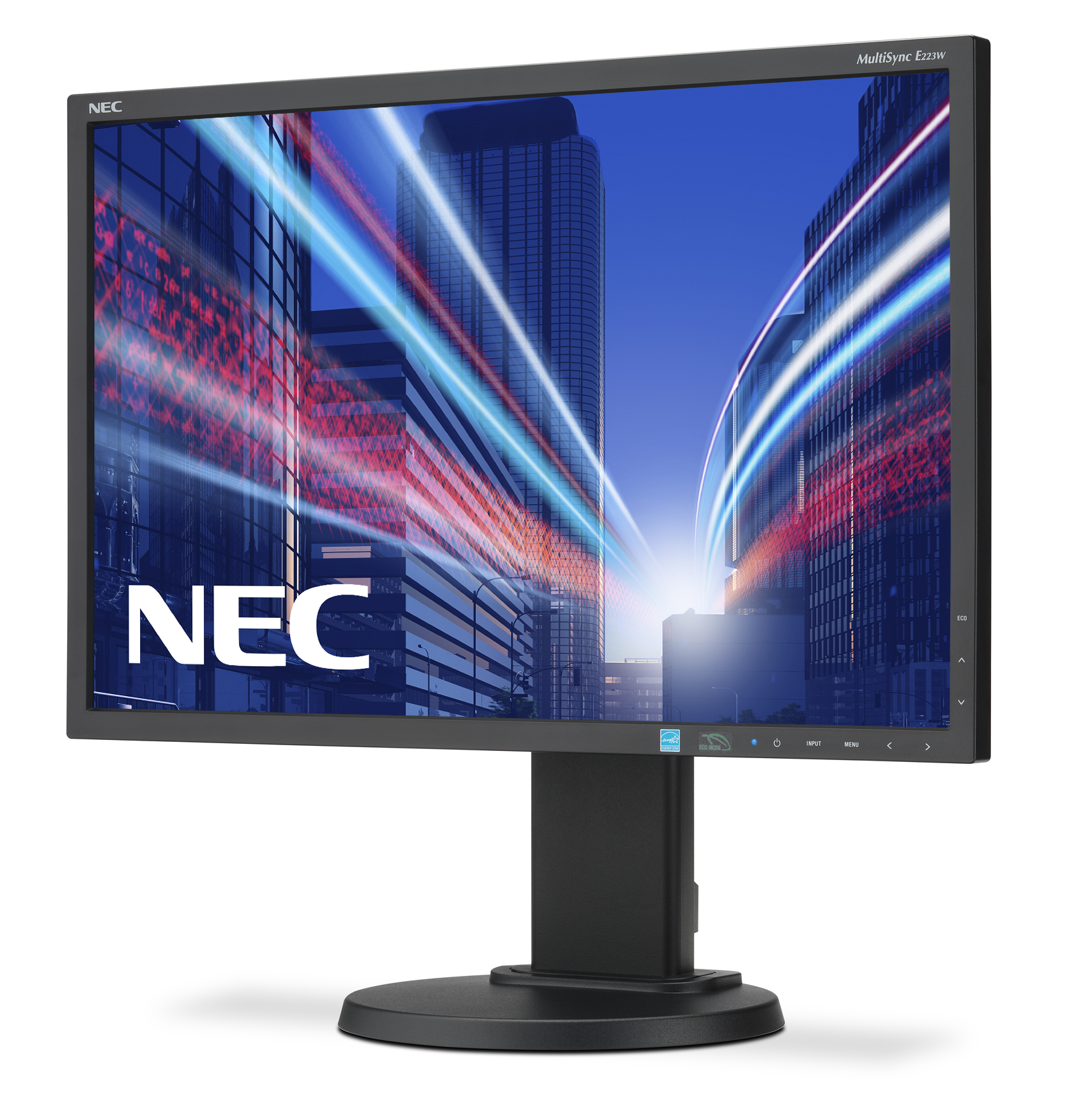

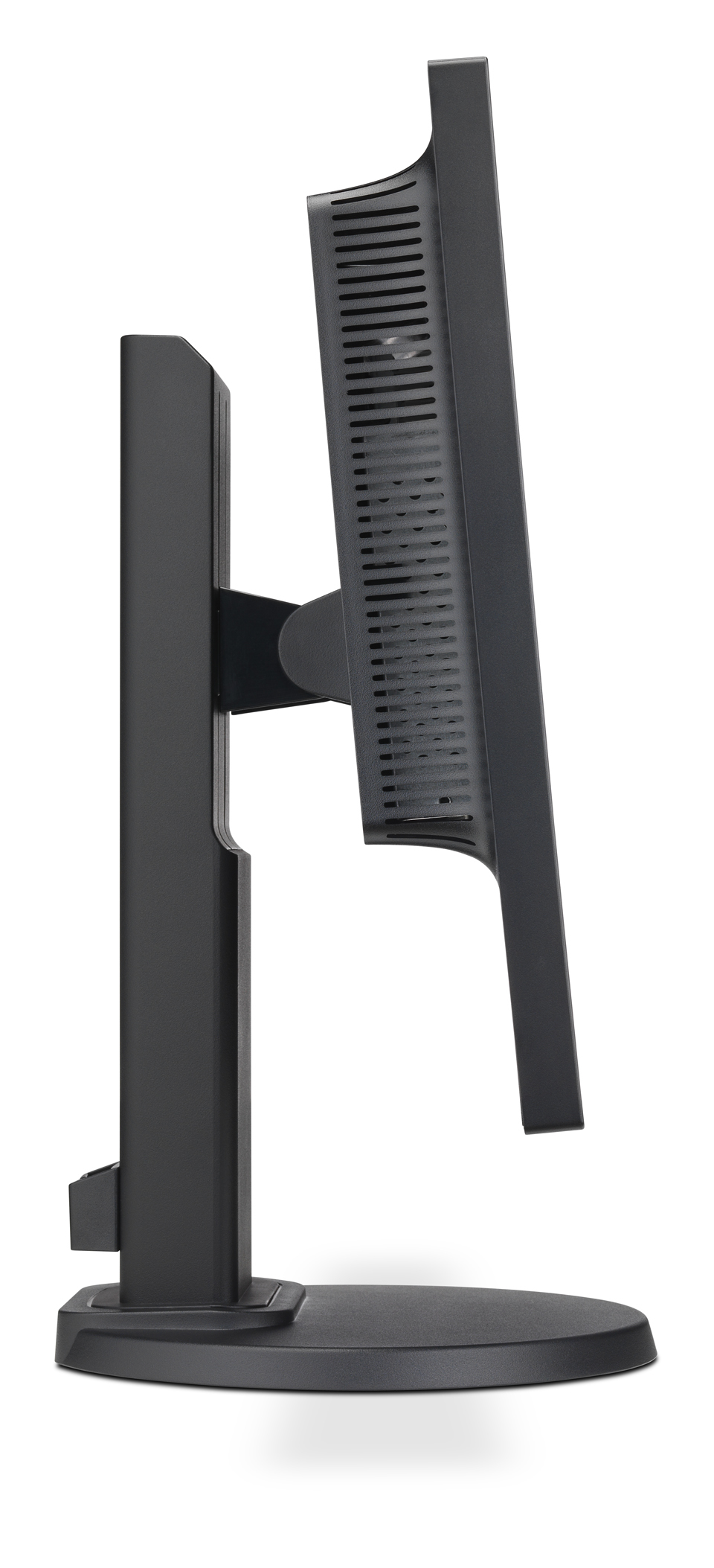

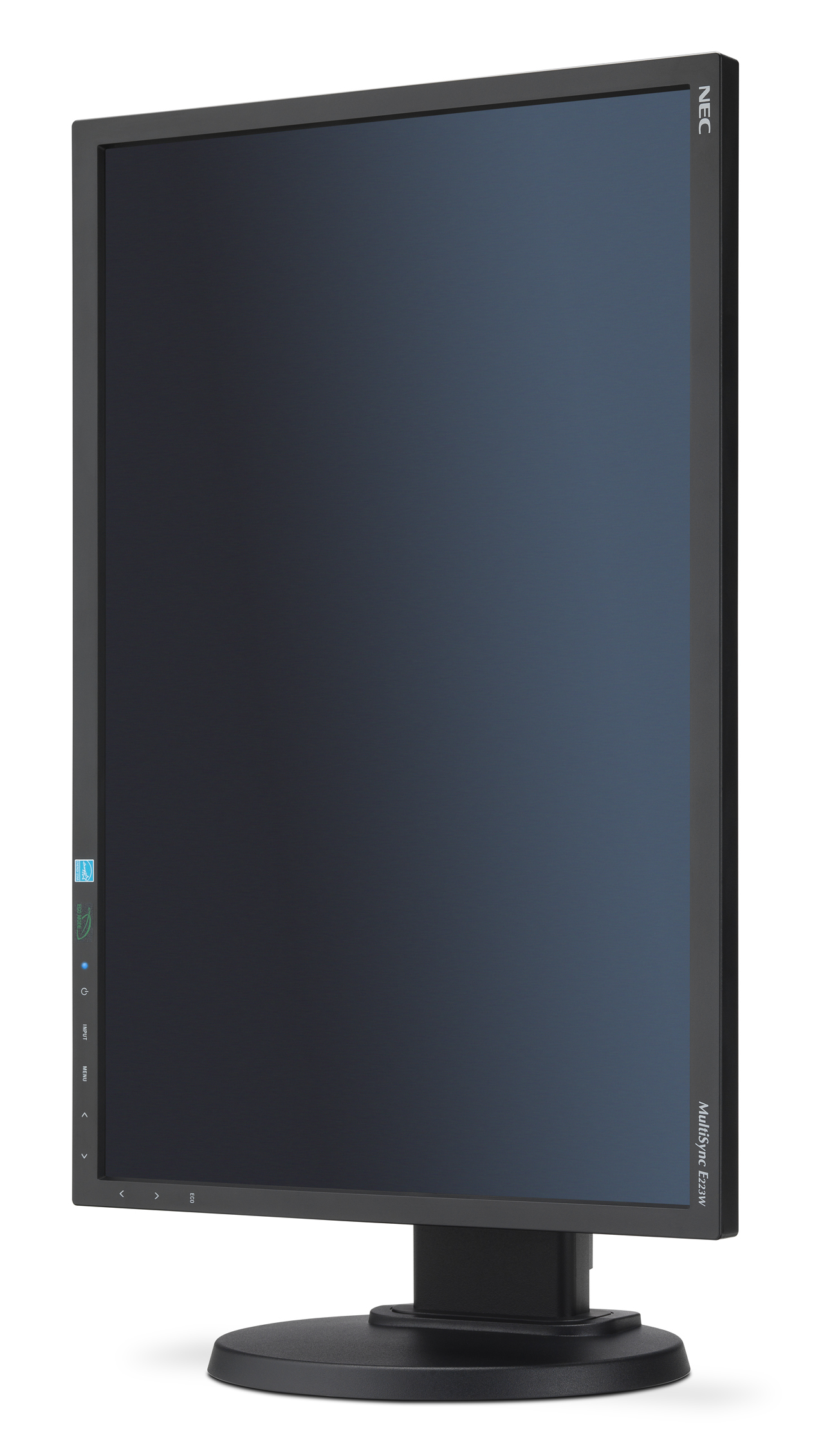

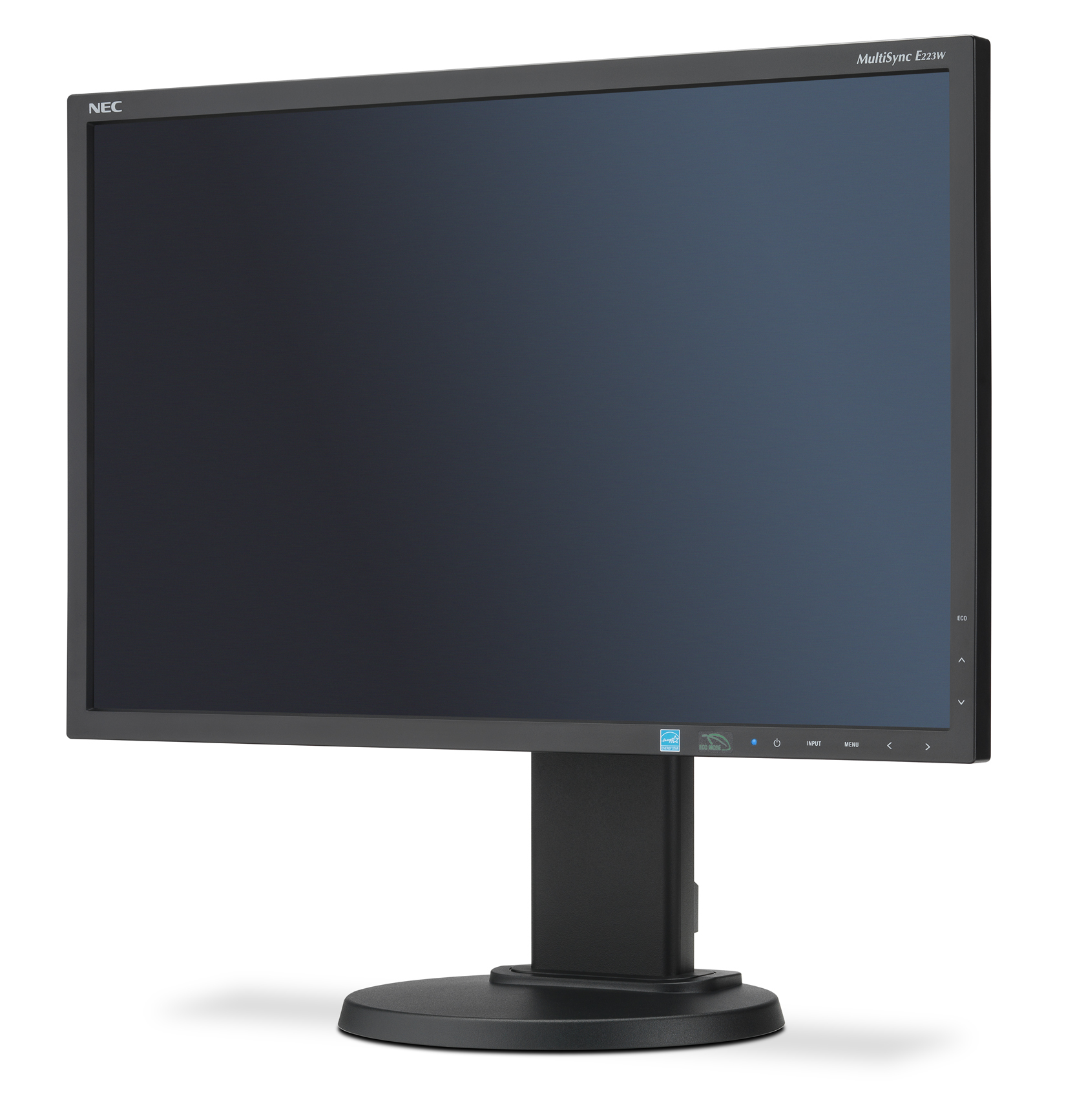

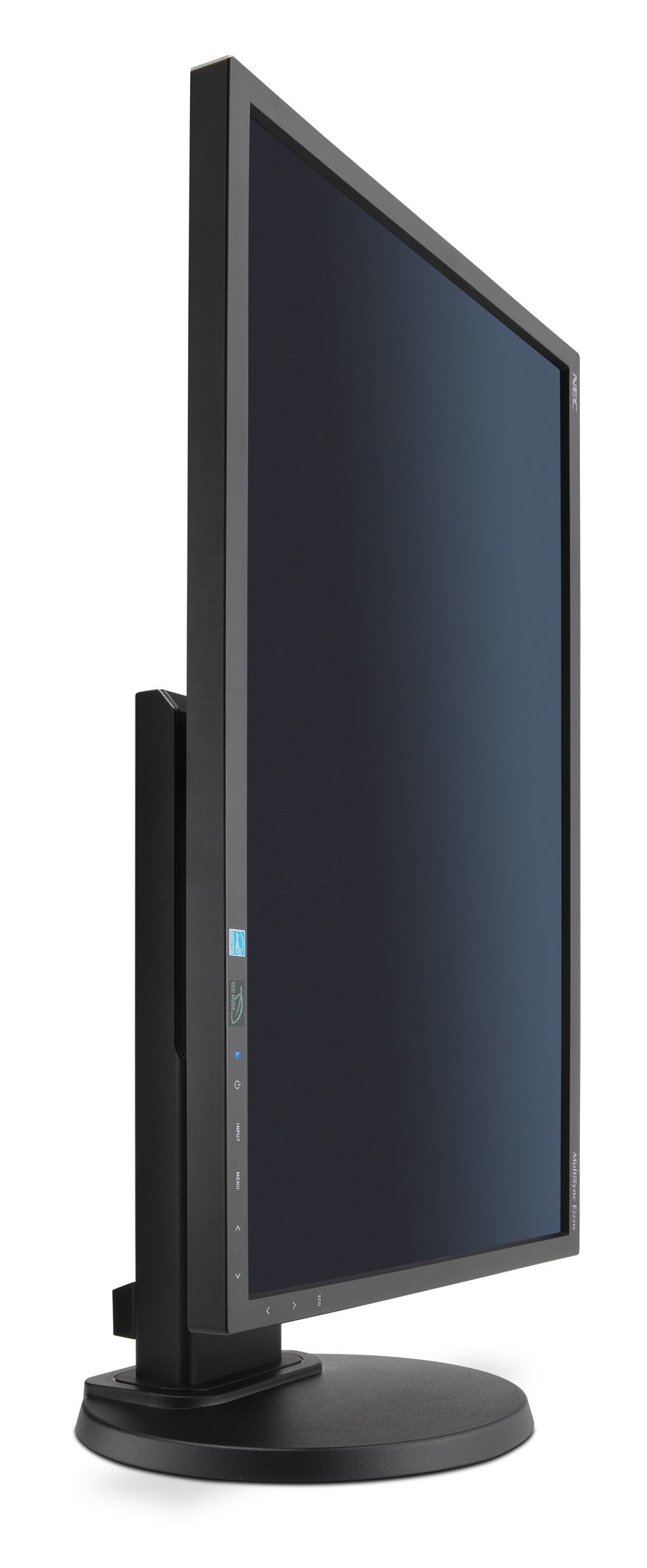

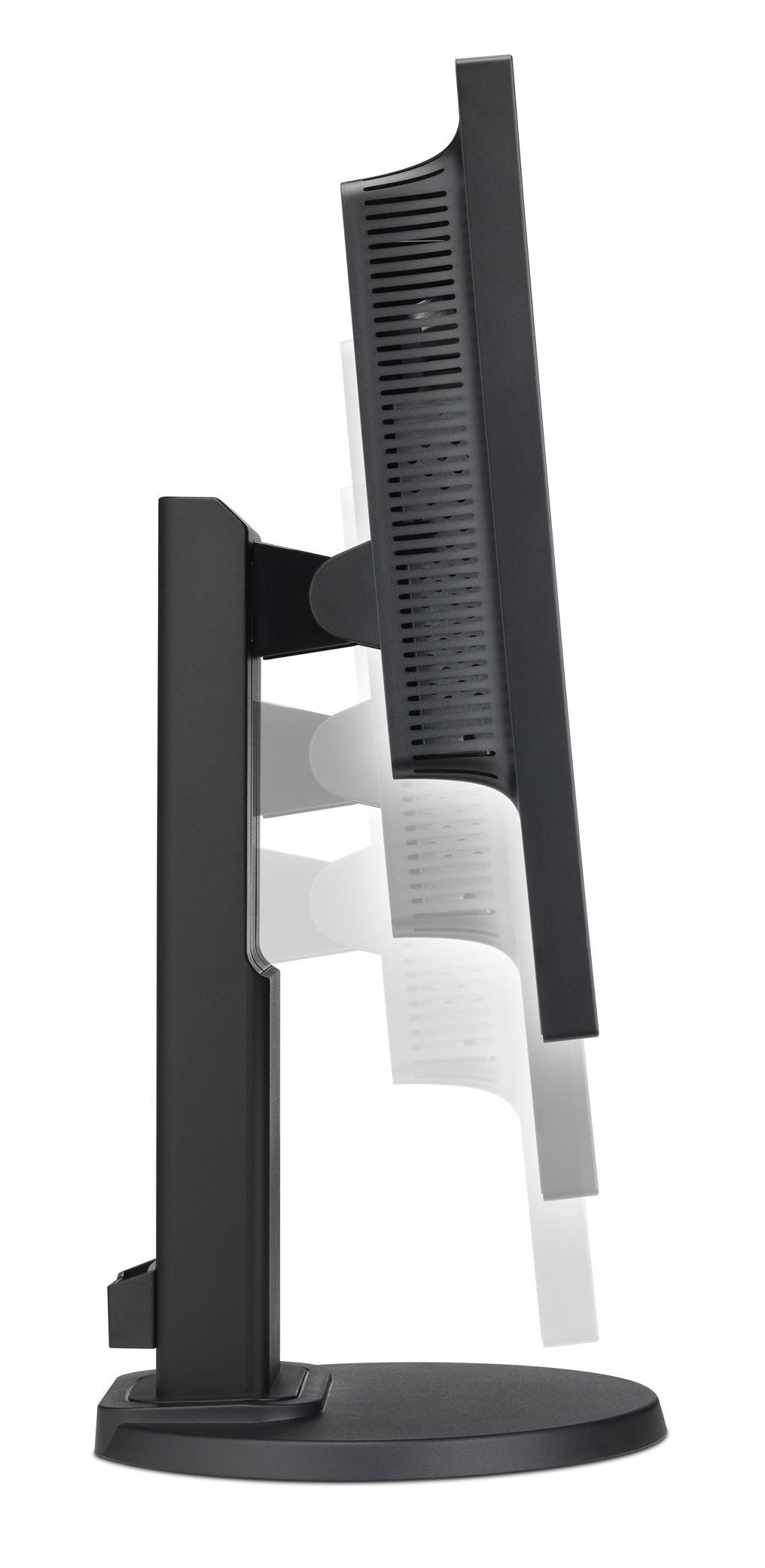

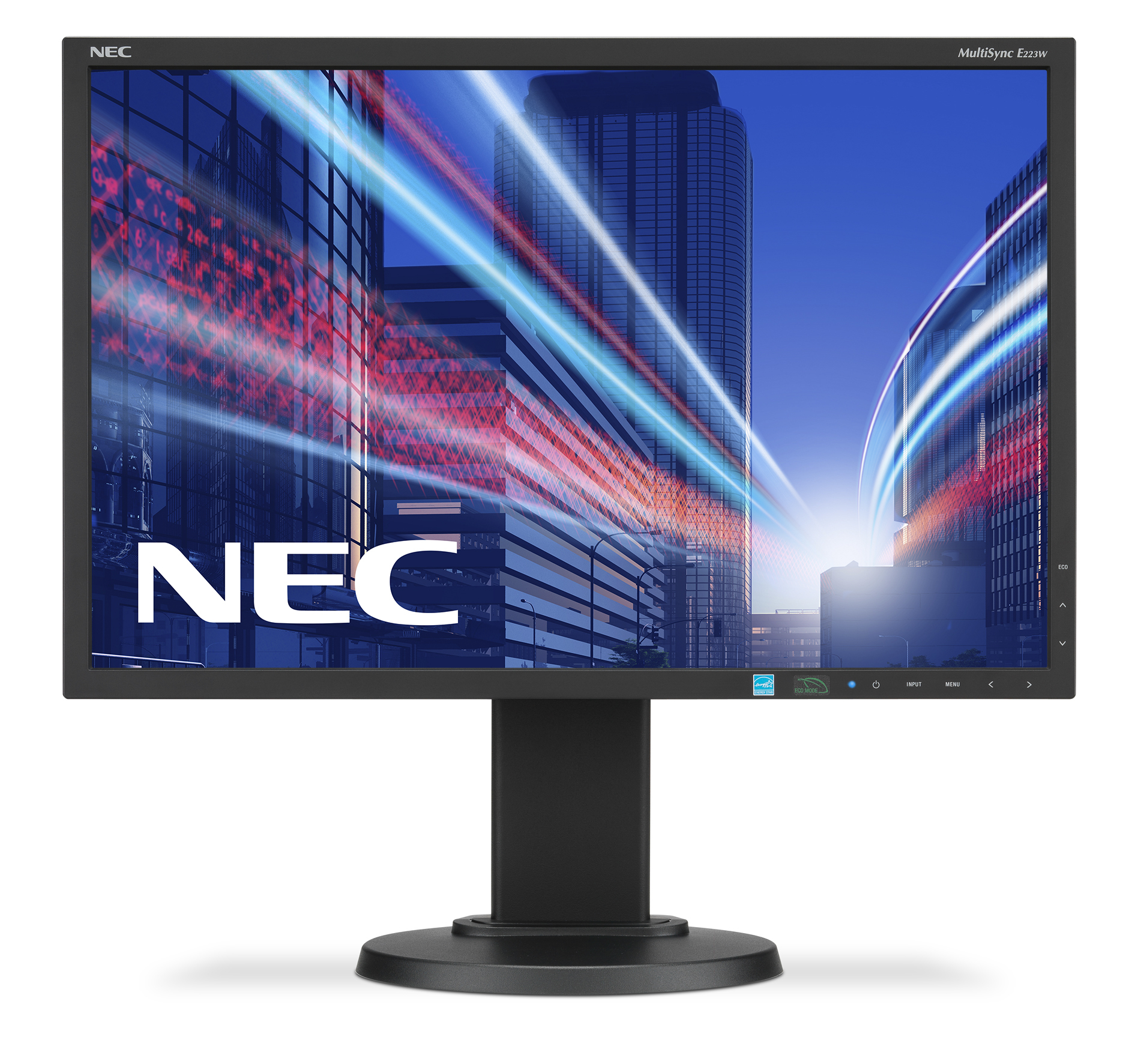

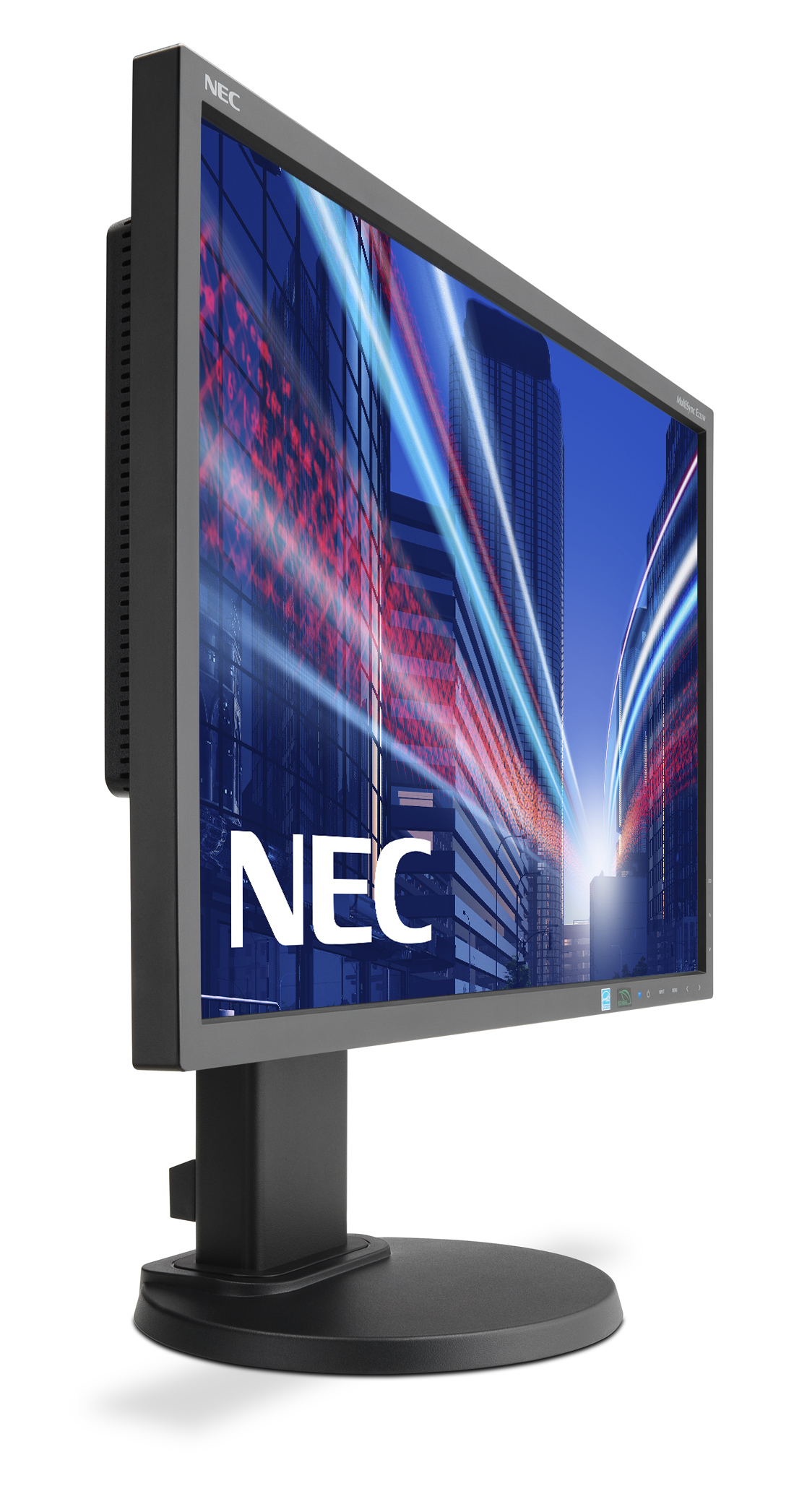

NEC MultiSync E223W computer monitor

55.9 cm (22") 1680 x 1050 pixels LED Black

Model E223WPart no. 60003335EAN 4053162535893

86 specifications Checked 4 days ago

Overview

Brand: NEC
Category: Monitor
Model: E223W
Part numbers: 60003335, 60003334
EAN / UPC: 4053162535893, 4053162535886, 5028695109568, 5028695109551
Also known as: NEC MultiSync E223W computer monitor 55.9 cm (22") 1680 x 1050 pixels LED Black

86 specifications in 14 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 960, 1366 x 768, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	25000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	31.5 - 82.3 kHz
Vertical scan range	56 - 75 Hz
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Product colour	Black

Specification	Value
Built-in USB hub	No
USB Type-A downstream ports quantity	0

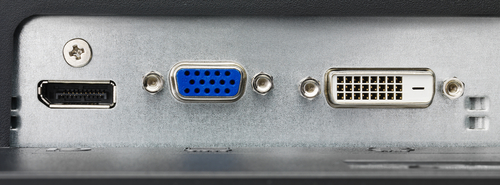

VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
HDCP	Yes
AC (power) in	Yes

Specification	Value
Power consumption (typical)	17 W
Power consumption (max)	24 W
Power consumption (PowerSave)	0.35 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	25 kWh

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
ECO mode	Yes
Energy efficiency class (legacy scale)	A+
Power consumption (economy mode)	12 W
Ethernet LAN (RJ-45) ports	0
Power management	Yes
Certification	CE; Energy Star 5.0; ErP; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Supplied AC adapter type	AC

Specification	Value
Thin client installed	No
