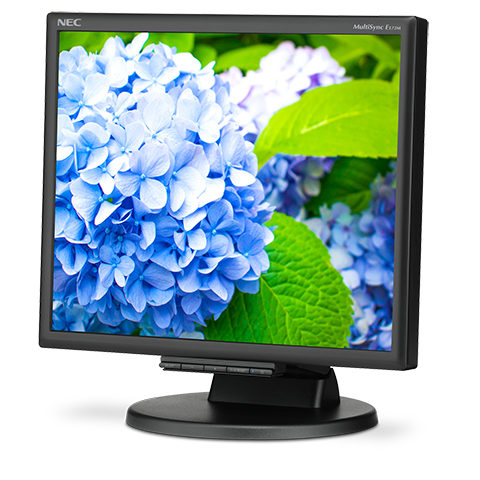

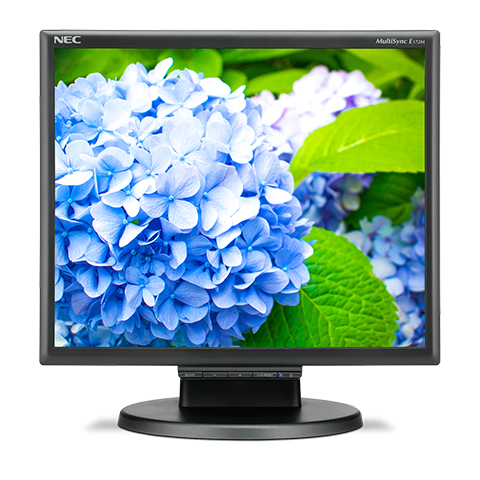

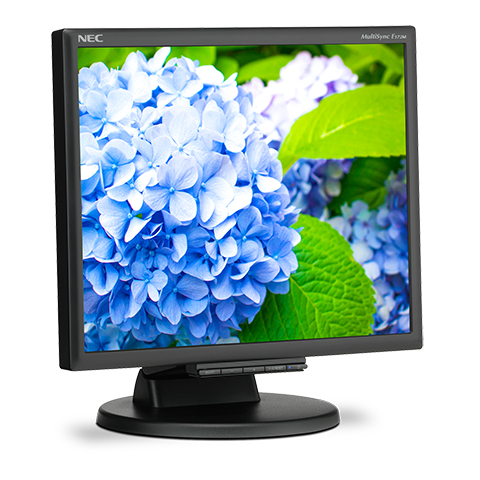

E172M computer monitor

43.2 cm (17") 1280 x 1024 pixels HD LED Black

Model E172MPart no. 60005020EAN 5028695118768

81 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
Market positioningBusiness

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
Market positioning: Business

Brand: NEC
Category: Monitor
Model: E172M
Part number: 60005020
EAN / UPC: 5028695118768
Also known as: NEC E172M computer monitor 43.2 cm (17") 1280 x 1024 pixels HD LED Black

Specifications

81 specifications in 14 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	HD
Panel type	TN
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.26 x 0.26 mm
Horizontal scan range	31.5 - 81 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
DDC/CI	Yes
sRGB coverage (typical)	102.7%
NTSC coverage (typical)	72.7%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Audio input	Yes
Headphone out	Yes
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Tilt adjustment	Yes
On Screen Display (OSD)	Yes
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	12 W
Power consumption (PowerSave)	0.25 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 2000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	368 mm
Depth (with stand)	230 mm
Height (with stand)	408.5 mm
Weight (with stand)	4 kg
Width (without stand)	368 mm
Depth (without stand)	61 mm
Height (without stand)	320 mm
Weight (without stand)	2.8 kg
Bezel width (side)	1.42 cm
Bezel width (top)	1.75 cm
Bezel width (bottom)	1.75 cm

Packaging data

Specification	Value
Package width	430 mm
Package depth	175 mm
Package height	480 mm
Package weight	5.6 kg
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, Audio (2.5mm), VGA

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
Compliance certificates	RoHS
Certification	TCO 8.0

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
