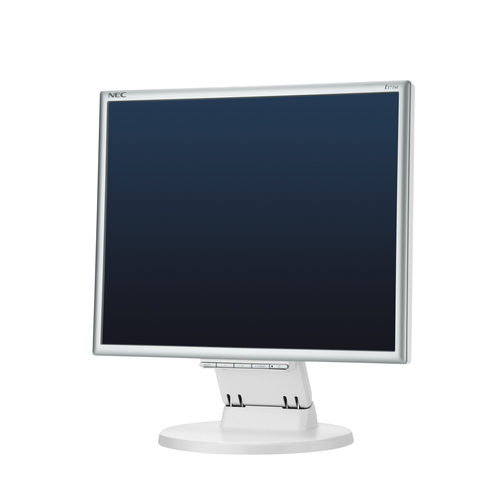

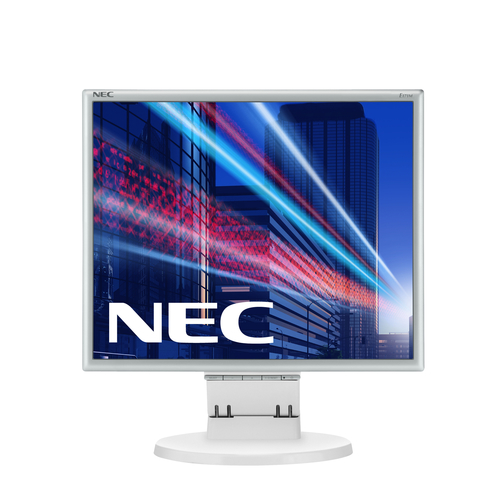

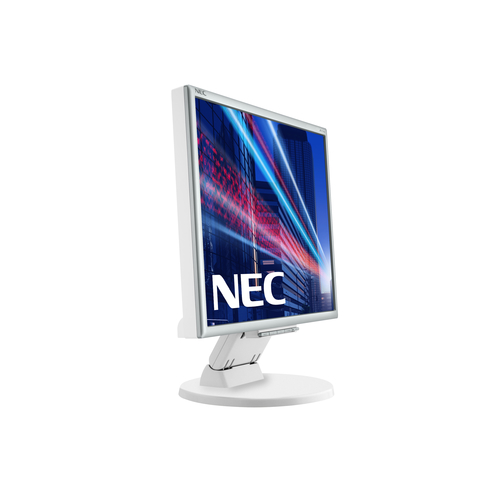

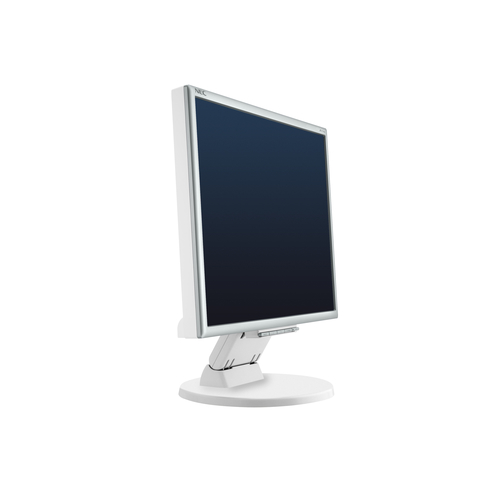

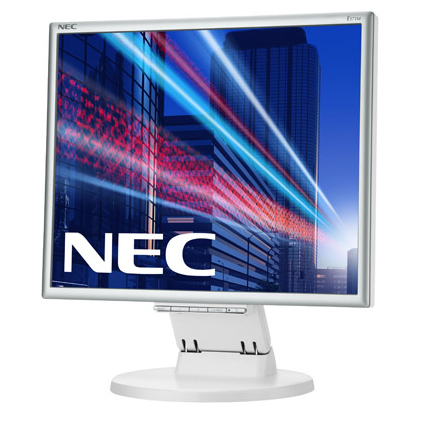

NEC MultiSync E171M computer monitor

43.2 cm (17") 1280 x 1024 pixels SXGA LED White

Model E171MPart no. 60003582EAN 5054629431856

80 specifications Checked 3 days ago

Overview

Brand: NEC
Category: Monitor
Model: E171M
Part numbers: 60003582, 60003581
EAN / UPC: 5054629431856, 4053162585331, 4054843766810, 5028695110762 +7 more
Also known as: NEC MultiSync E171M computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED White

80 specifications in 14 groups

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	SXGA
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 960
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Digital horizontal frequency	31.5 - 81.1 kHz
Digital vertical frequency	56 - 76 Hz
DDC/CI	Yes

Specification	Value
Windows operating systems supported	Windows 8

Specification	Value
Product colour	White

Specification	Value
Built-in USB hub	No
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
Headphone out	Yes
Headphone outputs	1
HDCP	Yes

Specification	Value
Power consumption (typical)	14 W
Power consumption (max)	19 W
Power consumption (PowerSave)	0.4 W
AC input voltage	100 - 240 V
Annual energy consumption	21 kWh

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Specification	Value
AC adapter included	Yes
On/off switch	Yes
TV tuner integrated	No
ECO mode	Yes
Energy efficiency class (legacy scale)	A
Power consumption (economy mode)	9 W
Certification	CE; EAC; Energy Star 6.0; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Supplied AC adapter type	LED

Specification	Value
Thin client installed	No
