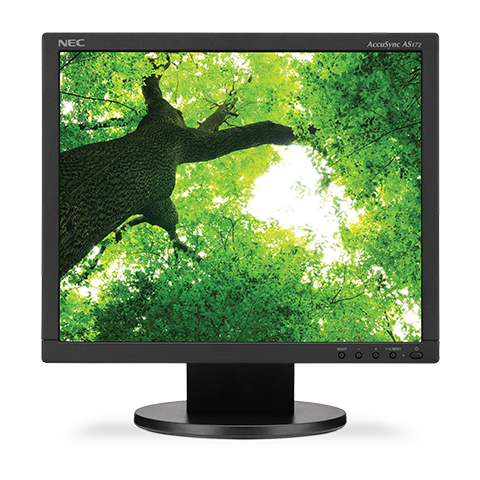

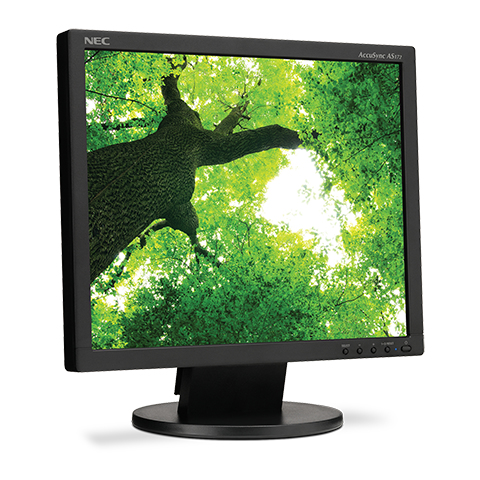

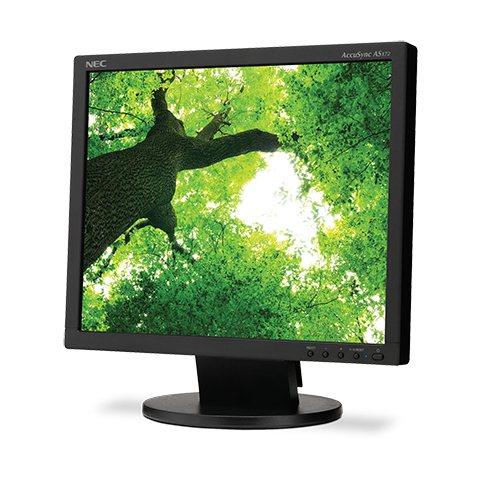

NEC AS172-BK computer monitor

NEC AS172-BK computer monitor

43.2 cm (17") 1280 x 1024 pixels LED Black

Model AS172-BKEAN 012302492575

75 specifications Checked 2 days ago

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourBlack
Built-in speaker(s)No
USB Type-A downstream ports quantity0
VESA mountingYes

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Black
Built-in speaker(s): No
USB Type-A downstream ports quantity: 0
VESA mounting: Yes

Brand: NEC
Category: Monitor
Model: AS172-BK
Part number: AS172-BK
EAN / UPC: 012302492575, 805736052039, 8057360520398
Also known as: NEC AS172-BK computer monitor 43.2 cm (17") 1280 x 1024 pixels LED Black

Specifications

75 specifications in 13 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
Panel type	TN+Film
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.26 x 0.26 mm
Horizontal scan range	31.5 - 81.1 kHz
Vertical scan range	56 - 76 Hz
Viewable size diagonal	43.2 cm
Digital horizontal frequency	31.5 - 81.1 kHz
Digital vertical frequency	56 - 76 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0

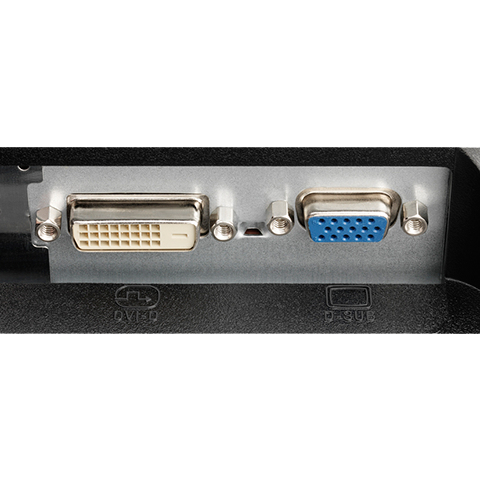

VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
HDCP	Yes
AC (power) in	Yes
Card reader integrated	No

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	No
Pivot	No
Swivelling	No
Tilt adjustment	Yes
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	11 W
Power consumption (standby)	0.15 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	373.2 mm
Depth (with stand)	205.1 mm
Height (with stand)	373.1 mm
Weight (with stand)	3.3 kg
Width (without stand)	373.2 mm
Depth (without stand)	69 mm
Height (without stand)	310.2 mm
Weight (without stand)	2.9 kg

Packaging content

Specification	Value
Cables included	AC, VGA
Quick start guide	Yes
Manual	Yes
Bundled software	NaViSet

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Certification	TCO, RoHS, ISO 9241-307 Class I
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
