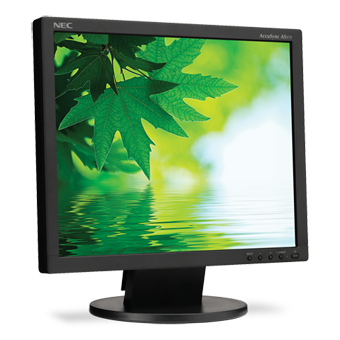

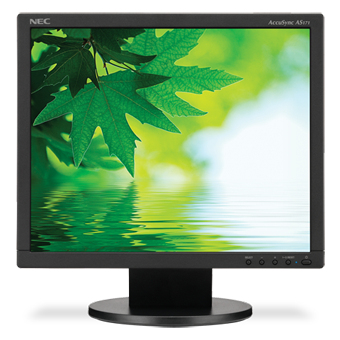

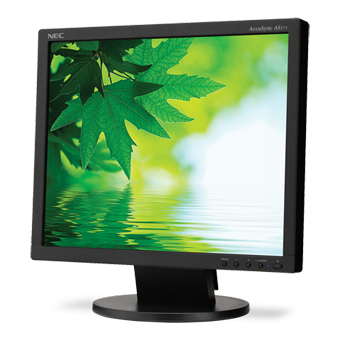

AS171 computer monitor

43.2 cm (17") 1280 x 1024 pixels Black

Model AS171Part no. AS171-BKEAN 805736033038

64 specifications Checked today

Overview

Brand: NEC
Category: Monitor
Model: AS171
Part number: AS171-BK
EAN / UPC: 805736033038, 999993011332, 8057360330386
Also known as: NEC AS171 computer monitor 43.2 cm (17") 1280 x 1024 pixels Black

64 specifications in 11 groups

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Touchscreen	No
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	5:4
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.26 x 0.26 mm
Digital horizontal frequency	31.5 - 81.1 kHz
Digital vertical frequency	56 - 76 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Product colour	Black

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI	No
HDMI ports quantity	0
DisplayPorts quantity	0
HDCP	No
Composite video in	0
SCART ports quantity	0
Component video (YPbPr/YCbCr) in	0
RS-232 ports	0
S-Video inputs quantity	0

Specification	Value
Ethernet LAN	No

Specification	Value
Power consumption (typical)	21 W
Power consumption (PowerSave)	0.4 W
AC input voltage	100 - 240 V

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 2000 m
