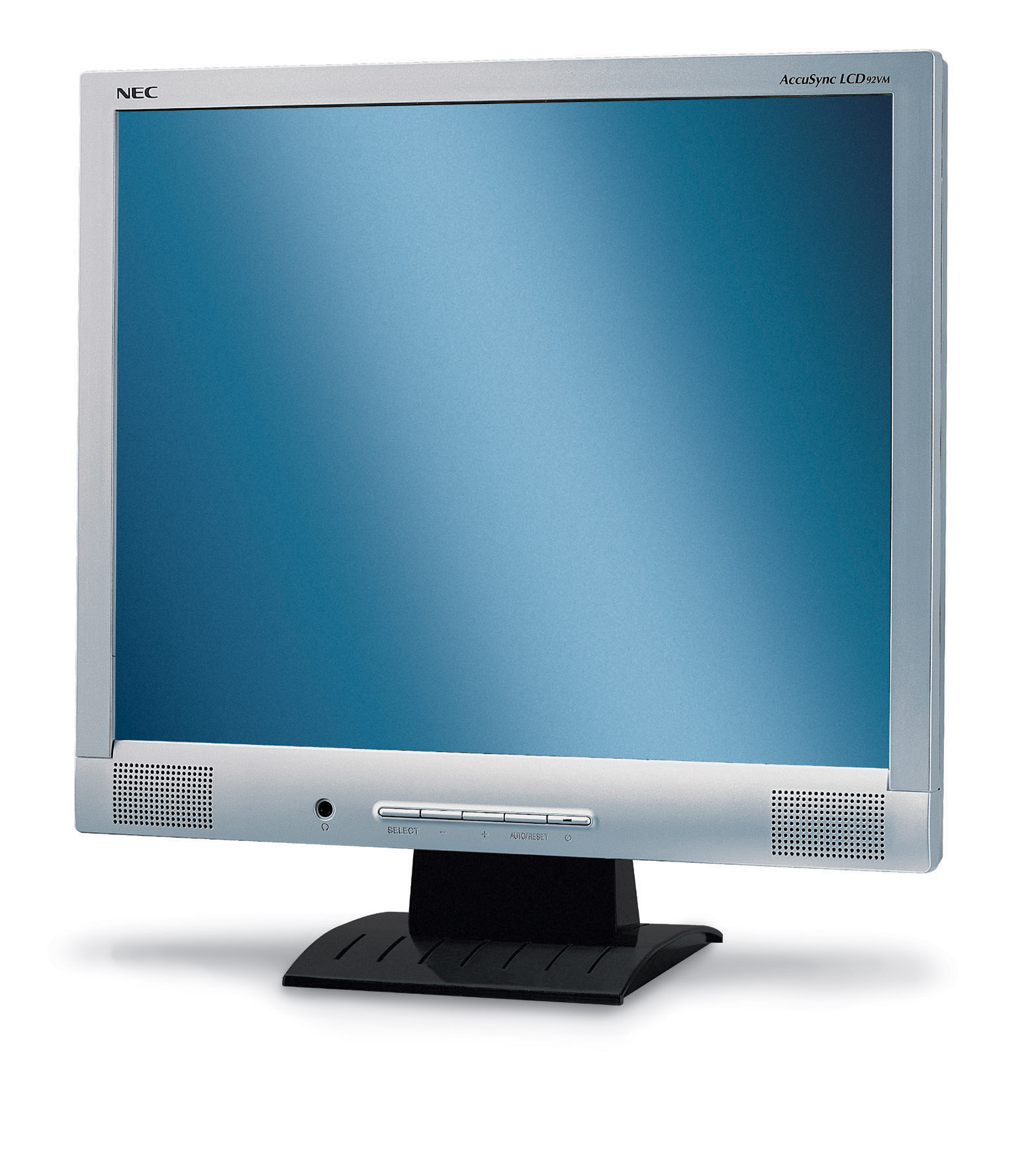

AccuSync® LCD92VM
Model AccuSync® LCD92VMPart no. 60001640
28 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- I/O portsAnalog: 1 x mini D-sub 15 pin
- Panel mounting interface100 x 100 mm
- Power consumption (typical)40 W
- Operating relative humidity (H-H)30 - 80%
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- I/O ports
- Analog: 1 x mini D-sub 15 pin
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 40 W
- Operating relative humidity (H-H)
- 30 - 80%
- Brand
- NEC
- Category
- Monitor
- Model
- AccuSync® LCD92VM
- Part number
- 60001640
- Also known as
- NEC AccuSync® LCD92VM computer monitor 48.3 cm (19") 1280 x 1024 pixels
Specifications
28 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 450:1 |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 |
| Horizontal scan range | 31.5 - 81.1 kHz |
| Vertical scan range | 55 - 76 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Analog: 1 x mini D-sub 15 pin |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 20° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 30 - 80% |
| Maximum operating temperature range (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 418 mm |
| Depth (without stand) | 199.5 mm |
| Height (without stand) | 427.8 mm |
| Weight (without stand) | 6.5 kg |
| Bezel width (side) | 2 cm |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-120 V/220-240 V; 0.8 A/0.5 A; |
| Compliance industry standards | ISO 13406-2 (Pixel Failure Class II); |
| Certification | CE; Energy Star; FCC Class B; PCT Gost; TCO03, TÜV ERGONOMIE; TÜV GS; UL/C-UL or CSA; MPR II/ MPR III |
| Bundled hardware | Power Cable; Signal Cable VGA-VGA; |
| Speakers and microphone | 1 + 1 W |
