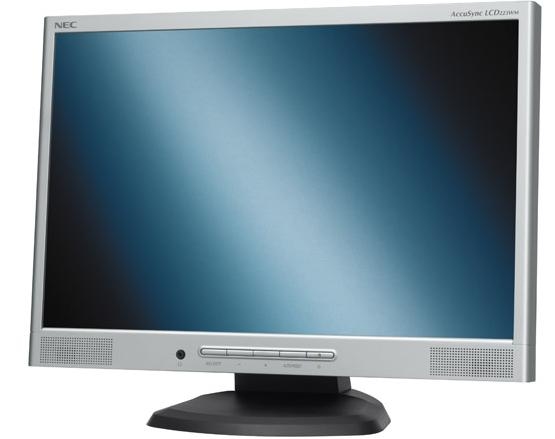

NEC AccuSync® LCD223WM

NEC AccuSync® LCD223WM

Model AccuSync® LCD223WMPart no. LCD223WM

38 specifications Checked 5 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
Built-in speaker(s)Yes
VGA (D-Sub) ports quantity1
Panel mounting interface100 x 100 mm
Power consumption (typical)55 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Built-in speaker(s): Yes
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 55 W

Brand: NEC
Category: Monitor
Model: AccuSync® LCD223WM
Part number: LCD223WM
Also known as: NEC AccuSync® LCD223WM computer monitor 55.9 cm (22") 1680 x 1050 pixels

Specifications

38 specifications in 10 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	31.5 - 82.3 kHz
Vertical scan range	56 - 75 Hz

Multimedia

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
AC (power) in	Yes

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt angle range	-5 - 20°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	55 W
Power consumption (PowerSave)	2 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	30 - 80%

Weight & dimensions

Specification	Value
Width (without stand)	508 mm
Depth (without stand)	196 mm
Height (without stand)	398 mm
Weight (without stand)	6.5 kg
Bezel width (side)	1.6 cm

Packaging content

Specification	Value
Cables included	AC, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Power requirements	100 - 240 VAC
Certification	CE; TCO 03; TÜV GS; FCC Class B; PCT/Gost; UL/C-UL of+F101 CSA; ISO 13406-2 (class II); MPR II/ MPR III; RoHS.
Additional accessories	CD
Supplied AC adapter type	LCD
